VSYS VS01A-46F Heavy-Duty Fixed TV Wall Mount for 37"–86" Displays, 80 kg
- Model: VS01A-46F
- SKU: VS01A-46F
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VS01A-46F is a heavy-duty fixed wall mount for 37"–86" flat and curved displays weighing up to 80 kg, available in the UAE from Procure.ae. A large panel in a permanent installation does not need to move; it needs to stay exactly where... See More
The VSYS VS01A-46F is a heavy-duty fixed wall mount for 37"–86" flat and curved displays weighing up to 80 kg, available in the UAE from Procure.ae.
A large panel in a permanent installation does not need to move; it needs to stay exactly where the integrator set it, year after year. The VS01A-46F is built around that requirement, using 1.8mm cold-rolled steel in both the wall plate and the bracket arms to carry 80 kg with a design that has been strength-tested four times over. A 30mm wall clearance keeps even an 86-inch screen visually flush with the surface, so the display reads as part of the wall rather than an object hung on it.

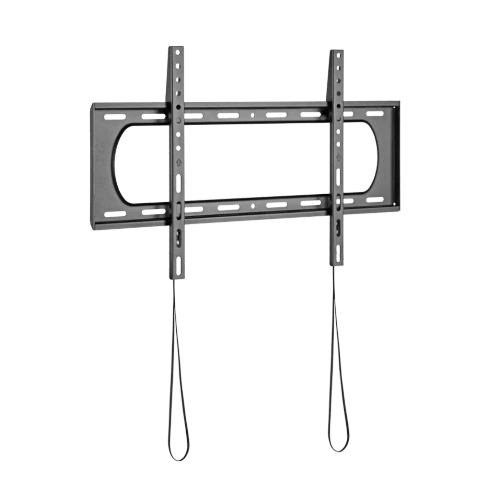

Two vertical bracket arms bolt to VESA patterns from 50x50mm up to 600x400mm, with a maximum usable hole spread of 654x402mm. The wall plate fixes to solid masonry or spans two studs at 406mm, 450mm or 600mm centres, and a hook-on bubble level is supplied so the plate can be trued before the fixings are torqued. Once the panel is hooked on, spring locks engage automatically; pull cords release them again, letting one technician lift the screen clear for cable or service access.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Rated for 80 kg (176 lb), which covers commercial-grade 86-inch panels that exceed the limits of consumer-class brackets.
- 1.8mm cold-rolled steel wall plate and arms, strength-tested four times, so the safety margin is structural rather than nominal.
- 30mm wall clearance produces a near-flush installation for boardrooms, lobbies and retail walls where a protruding bracket looks unfinished.
- Quick-release spring locks with pull cords let a single technician detach the display in seconds instead of dismantling the bracket.
- Open-architecture wall plate leaves the area behind the screen free for socket outlets, concealed conduit and convection airflow.
- VESA 50x50mm to 600x400mm coverage means one part number fits most 37-86 inch panels in a mixed estate.
- Fixes to solid walls or spans studs at 406mm, 450mm or 600mm centres, matching common regional and imported partition systems.
- Hook-on bubble level included, removing the need to hold a separate spirit level against a heavy plate during install.
- Accepts curved as well as flat panels within the rated size and weight envelope.
Technical Specifications
| Model | VS01A-46F |
| Type | Fixed low-profile TV wall mount |
| Screen size range | 37" to 86" |
| Weight capacity | 80 kg (176 lb) |

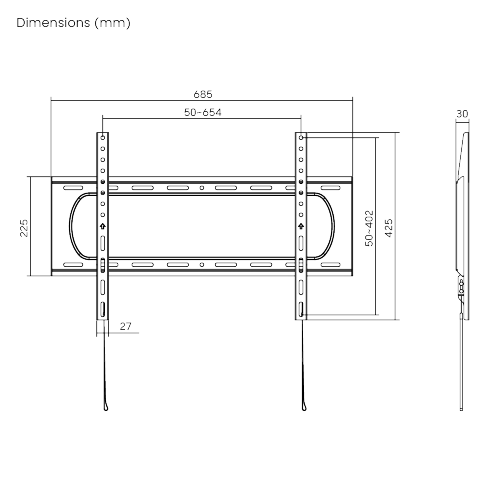

| VESA compatibility | 50x50mm to 600x400mm (max hole spread 654x402mm) |
| Movement | Fixed, no tilt or swivel |
| Wall clearance | 30mm (1.2") |
| Material | 1.8mm cold-rolled steel |
| Finish | Powder-coated |
| Stud spacing | 406mm, 450mm or 600mm; also suits solid walls |
| Testing | Strength tested 4x |
| In the box | Wall plate, bracket arms, mounting hardware kit, hook-on bubble level, installation instructions |
Ideal for: boardrooms and meeting rooms, hotel lobbies and reception areas, retail and mall digital signage, control rooms and operations centres, university lecture halls, government service counters and executive offices across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VS01A-46F Heavy-Duty Fixed TV Wall Mount for 37"–86" Displays, 80 kg |
| Mounting Type | Wall mount, solid wall or dual stud at 406mm, 450mm or 600mm centres |
| Screen Size Support | 37 to 86 inch flat and curved displays |
| Wall Mount Type | Fixed low-profile |
| Product Type | Fixed TV wall mount |
| Screen Size Range | 37 to 86 inches |
| Load Capacity | 80 kg (176 lb) |
| VESA Compatibility | 50x50mm to 600x400mm, maximum hole spread 654x402mm |
| Movement | Fixed, no tilt or swivel |
| Tilt | None, fixed design |
| Swivel | None, fixed design |
| Wall Clearance | 30mm (1.2 inches) |
| Material and Finish | 1.8mm cold-rolled steel |
| Available Finishes | Powder-coated |
| Mounting Interface | VESA 50x50mm to 600x400mm |
| Cable Management | Open architecture wall plate allows outlets and cabling behind the display |
| Testing and Certification | Strength tested 4 times |
| In the Box | Wall plate, bracket arms, mounting hardware kit, hook-on bubble level, installation instructions |
| MPN | VS01A-46F |
| Model | VS01A-46F |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VS01A-46F in the UAE?
Procure.ae supplies the VSYS VS01A-46F across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
Will it hold a commercial 86-inch display?
Yes, provided the panel weighs 80 kg or less and its VESA pattern falls within 50x50mm to 600x400mm. Most commercial 86-inch LED displays sit comfortably inside both limits, but confirm the figures on the manufacturer's specification sheet before ordering.
How far does the screen sit from the wall?
30mm, or about 1.2 inches. The open-architecture wall plate keeps that gap usable, so power outlets and cabling can still be routed directly behind the panel.
Can one person service the display after installation?
Yes. Pull cords release the spring locks so the screen lifts straight off the wall plate for rear access, then clicks back into position without tools or re-levelling.
Does it tilt?
No. The VS01A-46F is a fixed mount intended for permanent, flush installations. Where downward angle is needed because the screen sits above eye level, a tilt model such as the VS01A-46T is the correct choice.
