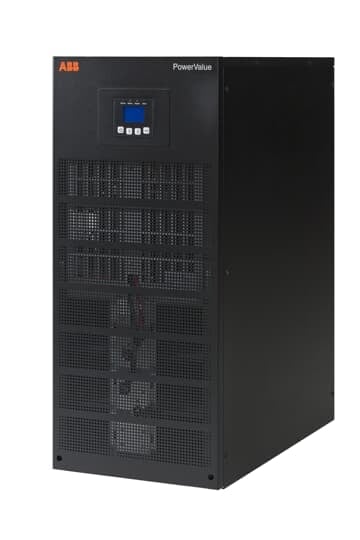

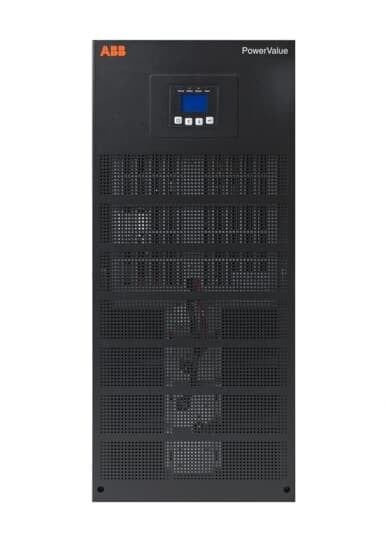

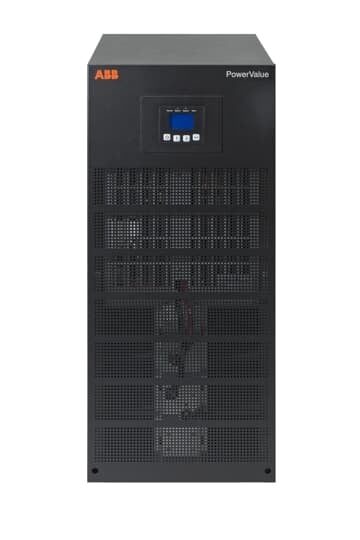

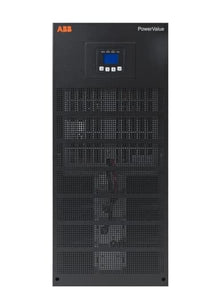

ABB Powervalue 11/31 T 10KVA B2 Single-Phase UPS
- SKU: 4NWP100117R0003
Actual Stock & Price Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW ABB 31‐10KVA B2 Powervalue Tower Simple to install and with a small footprint, the PowerValue 11/31 T produces stable, regulated, transient-free, pure sinewave AC power with extremely tight output voltage regulation. Energy savings thanks to 93% efficiency 97% efficiency in ECO mode... See More
PRODUCT OVERVIEW
ABB 31‐10KVA B2 Powervalue Tower
Simple to install and with a small footprint, the PowerValue 11/31 T produces stable, regulated, transient-free, pure sinewave AC power with extremely tight output voltage regulation.
Energy savings thanks to 93% efficiency
97% efficiency in ECO mode
Low harmonic distortions (< 5% THDi) and active power factor correction (0.99 input PF) eliminate interference from other equipment in the network Paralleling and redundancy capability (up to 4 units in parallel) increases system capacity and availability Integrated automatic and manual bypass simplifies maintenance and reduces need for external switchgears. Frequency converter operation to convert 50 to/from 60 Hz Compact solution that can achieve 5-16 min runtime with internal batteries Same model supports different wiring schemes: three-phase and single-phase input as well as single and dual input feed.
Brief Specifications
- PowerValue 11/31 T 10 kVA
- UPS frame rated power: 9 kW
- Batteries: internal backup – single string 5 mins, 2 strings 16 mins
- Parallel configuration: up to 4 units
- Dimensions (WxHxD): 350x890x715mm
- Weight without batteries (kg): 65
No datasheet available.
