Yealink UVC40-BYOD Video Conferencing Kit – UVC40-BYOD

The Yealink UVC40-BYOD is a discontinued meeting kit that pairs the UVC40 all-in-one video bar with a BYOD box for any UC platform. Its camera has a 133° diagonal field of view, and the speaker is rated at 5 W. Procure.ae, an authorised reseller, supplies the Yealink UVC40-BYOD across the UAE.

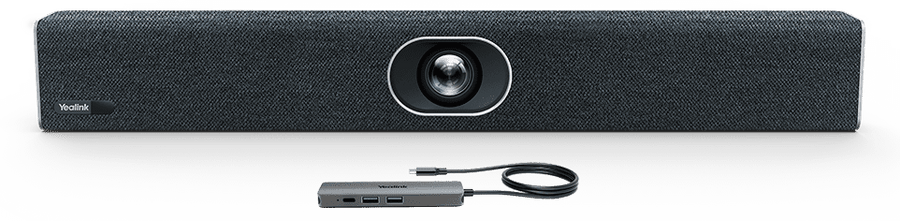

The kit integrates a microphone, video camera and speaker in the UVC40 video bar. The camera offers a 133° diagonal (DFOV), 120° horizontal (HFOV) and 80° vertical (VFOV) field of view. The speaker has a frequency response of 105 Hz to 20 kHz and a sensitivity of 84 dB SPL at 1 W at 0.5 metres. It is rated at 5 W with 8 W maximum, with a 4 ohm impedance and total harmonic distortion below 5% at 5 W and 1 kHz.

The BYOD box is specified to work with any UC platform, which suits meeting rooms that already run their own conferencing application. The kit uses a wall bracket measuring 127.5 x 143 x 82 mm and an external Yealink adapter with AC 100–240 V input and DC 48 V/0.7 A output. The manufacturer's specifications do not state how the BYOD box connects to a specific computer or display.
