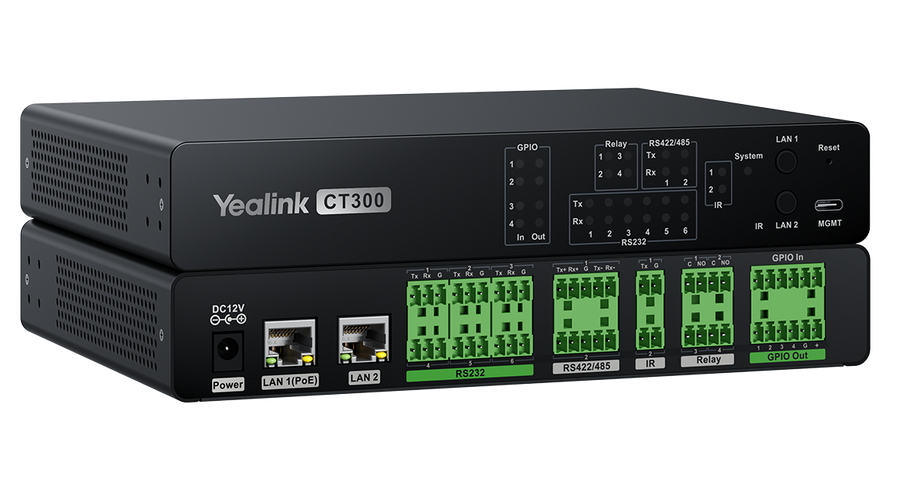

Yealink CT Series Advanced Room Device Navigator – CT300

The Yealink CT300 is an advanced room device navigator for meeting rooms, with four GPIO input and output pins and infrared capture below 4 m from the front panel. It draws 2.5 W on average and 3.3 W at peak. Procure.ae supplies the Yealink CT300 across the UAE.

The CT300 has four GPIO pins for input and output, analog inputs rated 0 to 24 V DC with 12-bit conversion, and digital outputs at 3.3 V and 3.3 mA. Pin 5 is ground and pin 6 supplies 12 V DC. The serial baud rate runs from 300 to 11520 baud. Dimensions are 216 x 160 x 36.7 mm and weight is 1.07 kg, and the unit operates from -10 to 45 °C at 10% to 95% RH.

The CT300 suits meeting rooms that need the navigator to work alongside external equipment through GPIO connections. Compared with the CT200, it draws more on average (2.5 W against 2 W) but less at peak (3.3 W against 3.5 W), weighs less (1.07 kg against 1.46 kg) and adds GPIO pins and infrared capture that the CT200 specifications do not list. The manufacturer's specifications do not state supported video conferencing platforms.
