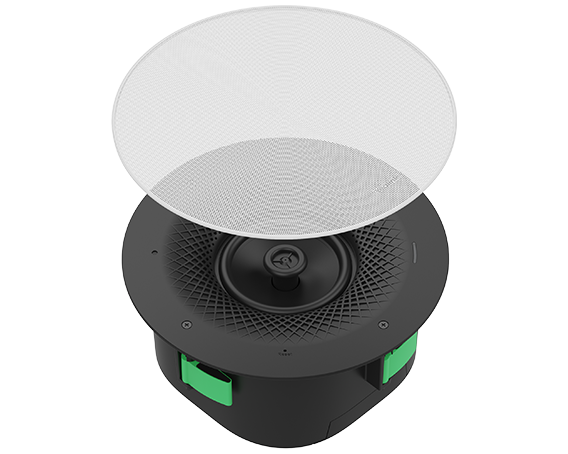

Yealink CS Series Network Ceiling Speaker – CS10/CS10-D

The Yealink CS10 (CS10/CS10-D) is a low-profile 2-way coaxial network ceiling speaker for conference rooms and video conferencing. It is powered over PoE+ (IEEE 802.3at, Class 4), has a 100 Hz to 20 kHz frequency response and a 120° nominal coverage angle. Procure.ae supplies the Yealink CS10 across the UAE.

The CS10 uses a 5.7-inch (145 mm) woofer and a 1.1-inch (28 mm) tweeter in a 2-way coaxial design. Its frequency response runs from 100 Hz to 20 kHz at -6 dB, with sensitivity of 88 dB at 1 m for 1 W input and a nominal impedance of 8 ohms. Rated power is 24 W and typical power is 20 W, with total harmonic distortion below 1%. The nominal coverage angle is 120°, and continuous output is 99 dB at 20 W at 1 m.

The CS10 is designed for conference rooms and meeting spaces, and according to the manufacturer it simplifies installation across diverse ceiling types. It connects through a single RJ-45 port and is powered over PoE+ (IEEE 802.3at, Class 4), so the switch port must provide Class 4. The main body is PA with 15% glass fiber, the bottom shell is aluminum alloy, and the cover plate is PC/ABS and SGCC. The speaker comes in white or black and operates from 0 to 50 °C at 5% to 90% RH.
