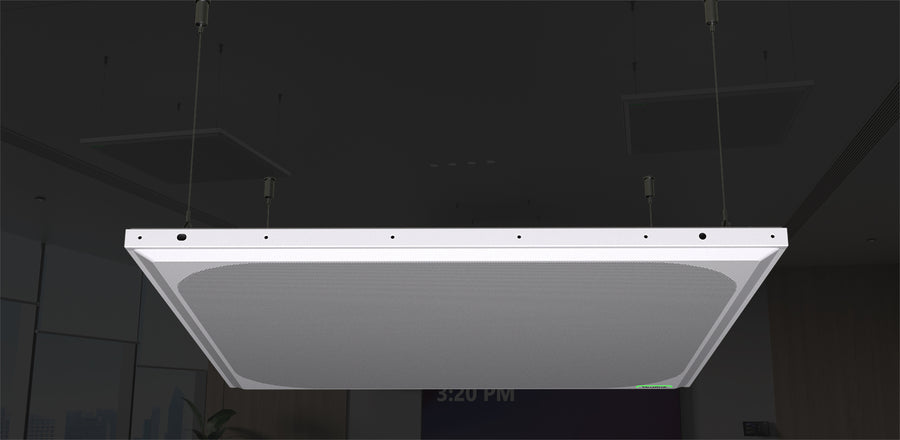

Yealink CM Series Dante Ceiling Microphone Array – CM50

The Yealink CM50 is a Dante ceiling microphone array for professional meeting rooms and Pro AV installations. It uses beamforming with a 127 MEMS array, supports Dante and AES67 audio networking, and runs on PoE+ (IEEE 802.3at, Class 4). Procure.ae supplies the Yealink CM50 across the UAE.

The CM50 uses beamforming from a 127 MEMS array to capture voices accurately while reducing background noise. Its frequency response runs from 120 Hz to 20 kHz, with a maximum sound pressure level of 122 dB at under 1% THD and a dynamic range of 86 dB. Audio is processed at 24-bit depth and sent over Dante and AES67, with 8+2 Dante output channels and 2 Dante input channels. Sensitivity is 0 dBV/Pa, equal to 94 dB SPL at 1 kHz. Typical power draw is 17 W and rated power is 19.3 W.

The CM50 is built for medium to large conference spaces and Pro AV environments, as the manufacturer describes it. It mounts in the ceiling and is powered by a single PoE+ connection (IEEE 802.3at, Class 4), so the switch port must provide Class 4. Its UL 2043 plenum rating allows installation in air handling spaces. The unit measures 592 x 592 x 56 mm, weighs 5.15 kg and is finished in Apple White.
