Vertical Color Mixer with 300KG Capacity, 7.5KW Power & Stainless Steel Drum
- SKU: VERTICAL COLOR MIXER
Actual Stock & Price Can Be Confirmed After Placing the Order.

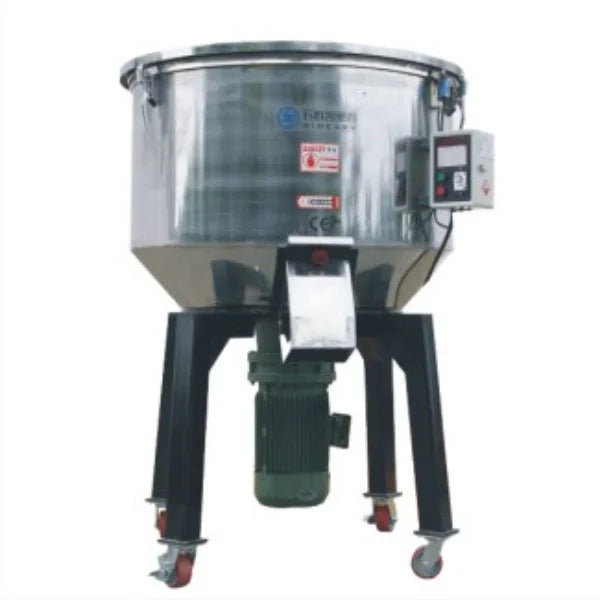

The Vertical Color Mixer is designed for plastic pellet mixing and color blending with a space-saving, mobile frame. Its stainless steel tank and blades are rustproof and easy to clean, ideal for frequent color changes and clean environments. Driven directly by a high-speed motor,... See More
The Vertical Color Mixer is designed for plastic pellet mixing and color blending with a space-saving, mobile frame. Its stainless steel tank and blades are rustproof and easy to clean, ideal for frequent color changes and clean environments. Driven directly by a high-speed motor, it operates at 65 RPM, delivering consistent blending results. The vertical structure is mounted on caster wheels for flexible movement and installation. With capacities from 50KG to 300KG, it suits both small and mid-size production batches. A built-in 0–30 minute timer and overload protection system ensure safety and automation. This mixer is widely used in injection molding, color masterbatch, and plastic recycling lines.
Key Features
-
Stainless Steel Tank & Blades – Corrosion-resistant and easy to clean.
-
Compact Vertical Design – Occupies less space while delivering efficient results.
-
Mounted on Caster Wheels – Portable and easy to relocate across the floor.
-
Capacities up to 300KG – Suitable for various batch sizes.
-
Direct Motor Drive – Enables faster mixing with reduced vibration.
-
Fixed 65 RPM Rotation Speed – Optimized for pellet and pigment blending.
-
Timer Control (0–30 min) – Automated stopping to prevent overmixing.
-
Overload Protection System – Ensures motor safety and longevity.
-
Simple Control Panel – Easy to operate and monitor cycle time.
-
Smooth Surface Finish – Reduces sticking and aids cleaning.
-
Ideal for Plastic Compounding – Handles pellets, flakes, and color batches.
-
Low Maintenance – Minimal moving parts with reliable operation.
Product Models
| Model | Capacity (kg) | Power (kW) | Rotate Speed (r/min) | Dimensions (L×W×H mm) |
|---|---|---|---|---|
| VCG–50 | 50 | 1.5 | 62 | 830×790×960 |
| VCG–100 | 100 | 2.2 | 62 | 950×860×1180 |
| VCG–150 | 150 | 3 | 62 | 1170×980×1380 |
| VCG–200 | 200 | 4 | 62 | 1190×1120×1430 |
| VCG–300 | 300 | 7.5 | 62 | 1330×1270×1700 |
The Vertical Color Mixer blends plastic granules and color efficiently with capacities up to 300KG, caster-mounted mobility, and a direct-drive system. Built for quick cycles and easy cleaning, it’s a must-have for compact plastic processing lines.
| Name | Vertical Color Mixer with 300KG Capacity, 7.5KW Power & Stainless Steel Drum |
| Model | VERTICAL COLOR MIXER |
