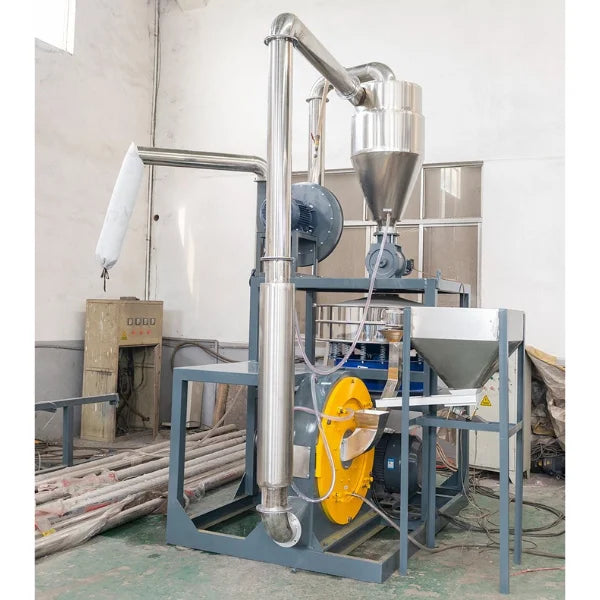

SMF Series Disc-Type Pulverizer with Blade Sizes up to 800mm & Output up to 250KG/H
- SKU: SMF SERIES PULVERIZER
Actual Stock & Price Can Be Confirmed After Placing the Order.
The SMF Series Pulverizer is a high-speed disc-type plastic grinder engineered for the recycling and processing of PE, PP, PVC, and PA materials. It features high-precision rotary blades supported by a durable spindle and an advanced bearing system for reliable operation. The built-in vibration... See More
The SMF Series Pulverizer is a high-speed disc-type plastic grinder engineered for the recycling and processing of PE, PP, PVC, and PA materials. It features high-precision rotary blades supported by a durable spindle and an advanced bearing system for reliable operation. The built-in vibration damper, blower power system, and water or air cooling ensure consistent powder quality and prevent overheating. The unit supports auto feeding, discharge, and screening while keeping noise and dust low. With blade diameters ranging from 380mm to 800mm, the SMF series delivers a processing capacity of up to 250 kg/H. Ideal for both lab analysis and large-scale production, the pulverizer’s intelligent design offers high efficiency and minimal labor. Blade cleaning and swapping is fast and easy, reducing downtime significantly.
Key Features
-
Disc-Type Pulverizing Blades – High-speed rotary system for grinding heat-sensitive plastics.
-
Blade Sizes from 380mm to 800mm – Scalable for different material volumes and particle sizes.
-
4500 RPM Operation – Enables ultra-fine grinding with excellent material consistency.
-
Air & Water Cooling Options – Prevents material deformation and overheating during operation.
-
Auto Feeding & Screening System – Reduces manual workload and improves production flow.
-
Dust-Free Enclosure – Fully closed milling chamber prevents contamination and enhances safety.
-
Low Vibration, Low Noise – Built-in damper ensures quiet and stable performance.
-
Quick Cleaning Access – Change or clean blades easily by simply opening the upper cover.
-
Wide Compatibility – Works with PE, PP, PVC, PA, PS, and PC plastics.
-
Long Blade Life – Triangular cutting structure increases usage time and reduces regrind waste.
-
Blower Motor Integration – Promotes efficient material transfer and cooling air flow.
-
Compact Floor Design – Ideal for industrial lines and material testing applications.
Product Models
| Model | Width of Mother Roll | Width of Finish Roll | Speed | Mother Roll Dia. | Finish Roll Dia. | Core of Mother Roll | Core of Finish Roll |
|---|---|---|---|---|---|---|---|
| WTR–R300 | 300–350mm | 300mm–350mm | 30m/min | 500mm | Max. 150mm | 3 inch | 2&3 inch |
| WTR–R500 | 300–500mm | 300mm–500mm | 0–1000m/min | 350mm | Max. 150mm | 3 inch | 2&3 inch |
The SMF Pulverizer is a high-speed disc grinding machine ideal for PE, PP, PVC, and related plastics. With blade sizes up to 800mm, cooling options, and up to 250KG/H output, it's the perfect choice for precision plastic powder production.
| Name | SMF Series Disc-Type Pulverizer with Blade Sizes up to 800mm & Output up to 250KG/H |
| Model | SMF SERIES PULVERIZER |
