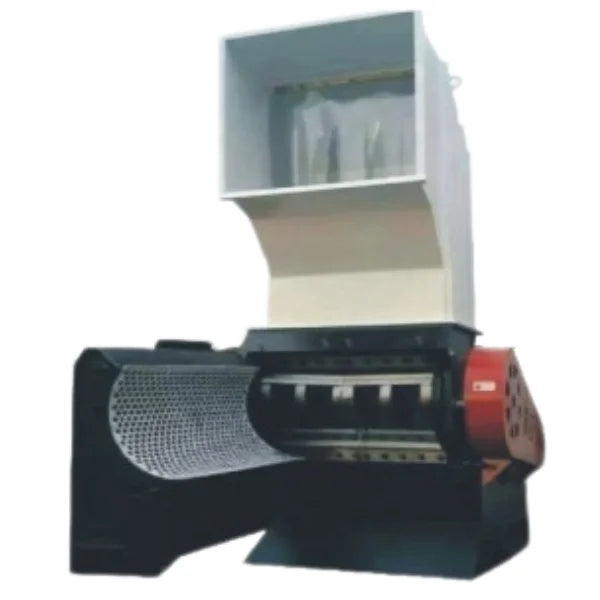

Heavy Duty Plastic Crusher with 1200mm Chamber, 5/7.5KW Motor & 1000KG/H Capacity
- SKU: HEAVY DUTY CRUSHER
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Heavy Duty Crusher is designed for crushing and recycling large plastic items such as washing machine casings, TV panels, automotive bumpers, and large barrels. Featuring a horizontal feeding design, it improves operational efficiency and simplifies loading. The machine includes a firm external rotor... See More
The Heavy Duty Crusher is designed for crushing and recycling large plastic items such as washing machine casings, TV panels, automotive bumpers, and large barrels. Featuring a horizontal feeding design, it improves operational efficiency and simplifies loading. The machine includes a firm external rotor bearing to prevent dust ingress, increasing its lifespan and reducing maintenance. A detachable deflection wedge improves the cutting process and avoids rotor blockage. With a 1200×1000mm crushing chamber and a rotor diameter of 750mm, it delivers a crushing ability of 300–1000 KG/H. Built with 6 rotary blades and 4 stationary blades, it ensures consistent output and longevity. The optional cyclone system aids in effective material collection. Its steel-heavy frame, high power motor, and large output capacity make it ideal for high-demand recycling lines.
Key Features
-
Designed for Hard Materials – Perfect for crushing washing machine shells, bumpers, TV casings, and barrels.
-
1200×1000mm Crushing Chamber – Large feed area to handle bulky plastics with ease.
-
750mm Rotor Diameter – Delivers high torque and efficient material breakdown.
-
Up to 1000KG/H Capacity – Supports heavy-duty recycling operations with consistent output.
-
Firm External Rotor Bearing – Located outside the unit to protect from dust and water damage.
-
Detachable Deflection Wedge – Enhances cutting angle and prevents rotor blockage.
-
Horizontal Loading Design – Simplifies feeding for large or irregular-shaped materials.
-
6 Rotary & 4 Stationary Blades – Ensures precise shredding with reduced downtime.
-
5/7.5KW Motor Power – Delivers the necessary strength for industrial applications.
-
Optional Cyclone Collection System – Enables cleaner operation and faster material handling.
-
Durable Steel Frame – Built for stability, vibration resistance, and long-term use.
-
Easy Maintenance Access – Engineered for tool-free cleaning and servicing.
Product Model
| Model | Crushing Chamber (mm) | Rotation Diameter (mm) | Crushing Ability (kg/h) | Rotary Blade (pcs) | Stationary Blade (pcs) | Motor Power (kW/HP) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| PC1200H | 1200×100 | 750 | 300–1000 | 6 | 4 | 55/75 | 2800×1850×1440 | 5000 |
The Heavy Duty Crusher is built for large-scale plastic recycling, offering a 1200mm chamber, external rotor protection, and a 1000KG/H crushing output. Ideal for processing TV casings, car bumpers, and white goods, it ensures durability and consistent high-volume performance.
| Name | Heavy Duty Plastic Crusher with 1200mm Chamber, 5/7.5KW Motor & 1000KG/H Capacity |
| Model | HEAVY DUTY CRUSHER |
