Double Shaft Shredder with 1500KG/H Capacity, 48 Rotary Blades & 340mm Rotor
- SKU: Double Shaft Shredder
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Double/Single Shaft Shredder is engineered for high-volume industrial plastic shredding with low noise and low energy consumption. Designed for processing PE drums, PP blocks, agriculture film, textile rolls, and large packaging waste, this machine delivers consistent performance with rotor speeds up to 80RPM.... See More
The Double/Single Shaft Shredder is engineered for high-volume industrial plastic shredding with low noise and low energy consumption. Designed for processing PE drums, PP blocks, agriculture film, textile rolls, and large packaging waste, this machine delivers consistent performance with rotor speeds up to 80RPM. It comes equipped with 20 to 48 rotary blades, depending on the model, and features special knife spacing to extend blade life. With models supporting up to 1500KG/H output, it ensures heavy-duty processing of wide material types. The oversized feed opening, combined with robust steel construction, makes it suitable for tough, bulky loads. Maintenance is easy with a modular design and accessible cutting area.
Key Features
-
Low Noise, Low Energy Use – Designed for energy efficiency and quiet industrial performance.
-
Rotor Speed 80RPM – Optimized for consistent shredding of dense materials.
-
Up to 48 Rotary Blades – Maximizes material contact and granulation output.
-
300–340mm Rotor Diameter – Built for durability and high torque.
-
1500KG/H Shredding Capacity – Ideal for large-scale recycling and production plants.
-
Large Feeding Size – Up to 1200×800mm feed space for bulky waste items.
-
Extended Blade Life – Custom spacing reduces wear and maintenance frequency.
-
Handles Variety of Materials – Perfect for PE drums, PP blocks, agricultural waste, and films.
-
Modular Construction – Enables quicker part replacement and cleaning.
-
Heavy-Duty Steel Frame – Withstands tough processing loads.
-
Compact Footprint for High Power – Space-efficient with high throughput.
-
Optional Conveyor System – Integrates easily with feeding and collection lines.

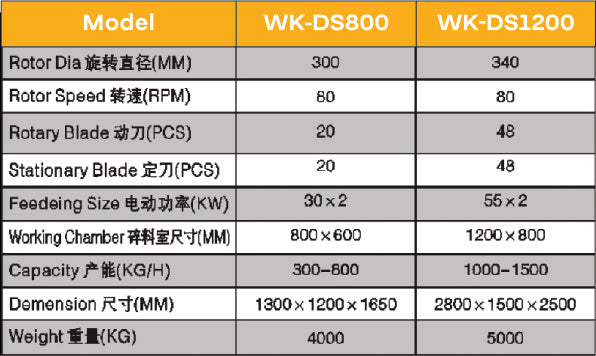

Product Models
| Model | Rotor Dia (mm) | Rotor Speed (RPM) | Rotary Blade (pcs) | Stationary Blade (pcs) | Feeding Size (mm) | Working Chamber (mm) | Capacity (kg/h) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| WK–DS800 | 300 | 80 | 20 | 20 | 30 × 2 | 800 × 600 | 800–1000 | 1300 × 1200 × 1650 | 4000 |
| WK–DS1200 | 340 | 80 | 48 | 48 | 55 × 2 | 1200 × 800 | 1000–1500 | 2800 × 1500 × 2500 | 5000 |
The DS Series Shredder delivers low-noise, high-capacity plastic shredding with up to 1500KG/H output. With its oversized feed, durable dual-shaft design, and energy-efficient motor, it’s ideal for heavy-duty recycling applications.
| Name | Double Shaft Shredder with 1500KG/H Capacity, 48 Rotary Blades & 340mm Rotor |
| Model | Double Shaft Shredder |
