Big Vertical Mixer with 5000KG Capacity, 11KW Motor & Stainless Steel Spiral Agitator
- SKU: Big Vertical Mixer
Actual Stock & Price Can Be Confirmed After Placing the Order.
The Big Vertical Mixer is a high-capacity mixing system designed for plastic raw material blending, including virgin, regrind, and masterbatch combinations. Built with a stainless-steel body, it features a helical spiral agitator for fast and uniform circulation. Its central dump-bottom design ensures that materials... See More

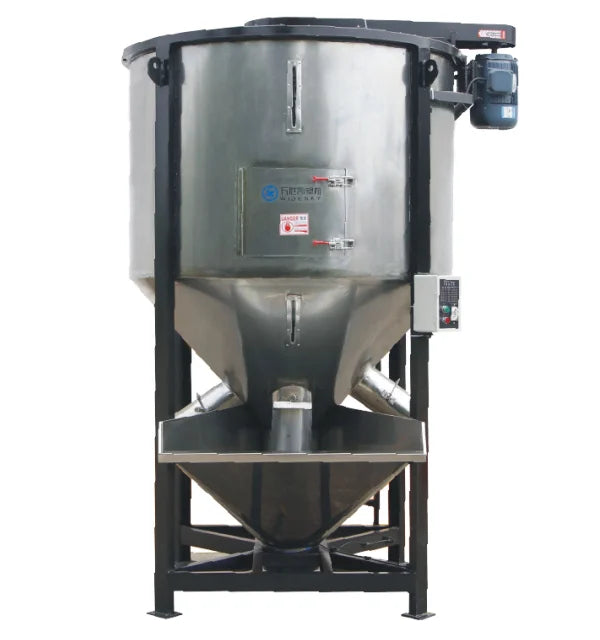

The Big Vertical Mixer is a high-capacity mixing system designed for plastic raw material blending, including virgin, regrind, and masterbatch combinations. Built with a stainless-steel body, it features a helical spiral agitator for fast and uniform circulation. Its central dump-bottom design ensures that materials are lifted, dispersed, and recirculated from the base to the top efficiently. The mixer is available in capacities ranging from 300 kg to 10,000 kg, powered by energy-efficient motors from 2.2 kW to 11 kW. The large inlet, secure access door, and control panel offer ease of use and operator safety. This machine is ideal for large-scale production lines, enabling batch processing within a short time frame. With its rust-resistant build and high throughput, it meets the needs of industrial plastic processors.
Key Features
-
Helical Spiral Mixing System – Ensures uniform and thorough blending from top to bottom.
-
Heavy-Duty Capacities – Models range from 300 kg up to 10,000/kg per batch.
-
Rust-Resistant Stainless Steel Body – Durable and hygienic construction.
-

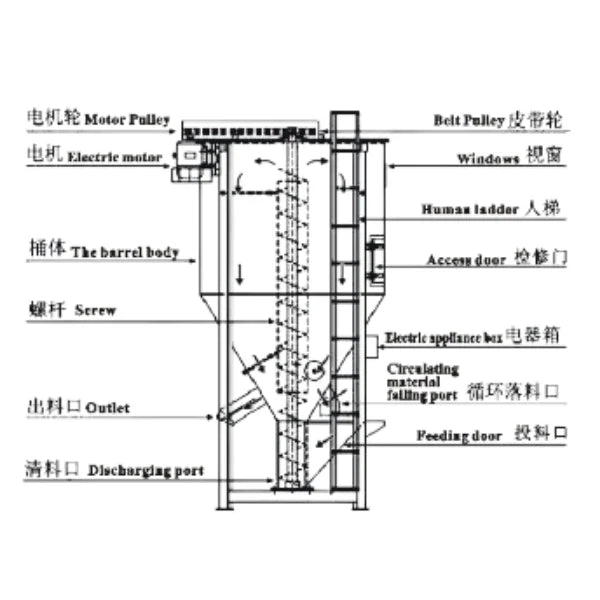

Fast Mixing Cycle – Central dump and recirculation design cuts batch times.
-
Integrated Safety Controls – Includes power shutoff and access ladder for maintenance.
-
Energy Efficient Motors – Ranges from 2.2KW to 11KW for optimal performance.
-
Wide Model Variety – Options available for small-scale and industrial-grade operations.
-
Low Maintenance Design – Smooth internal finish for easy cleaning.
-
Suitable for Color Mixing – Handles pigment dispersal and masterbatch integration.
-
High Output Efficiency – Capable of operating in continuous or batch mode.
-
Compact Footprint for High Volume – Space-optimized vertical design.
-
Excellent for All Plastic Types – Works with PP, PE, ABS, PC, and more.

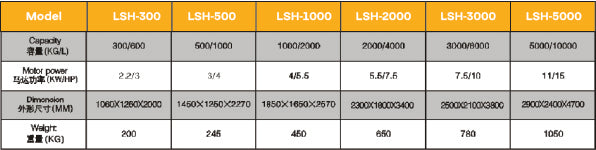

Product Models
| Model | Capacity (kg/L) | Motor Power (kW/HP) | Dimension (mm) | Weight (kg) |
|---|---|---|---|---|
| LSH–300 | 300/600 | 2.2/3 | 1050×1280×2000 | 200 |
| LSH–500 | 500/1000 | 3/4 | 1450×1250×2120 | 245 |
| LSH–1000 | 1000/2000 | 4/5.5 | 1850×1650×2670 | 450 |
| LSH–2000 | 2000/4000 | 5.5/7.5 | 2300×1800×3400 | 650 |
| LSH–3000 | 3000/6000 | 7.5/10 | 2500×2000×3800 | 780 |
| LSH–5000 | 5000/10000 | 11/15 | 2900×2400×4700 | 1050 |
The Big Vertical Mixer supports high-volume plastic blending with up to 10,000KG capacity, a helical agitator, and efficient top-to-bottom circulation. Built for fast batch processing, it’s perfect for industrial plastic mixing lines.
| Name | Big Vertical Mixer with 5000KG Capacity, 11KW Motor & Stainless Steel Spiral Agitator |
| Model | Big Vertical Mixer |
