Wharfedale Pro XO-206 12W 3 Way Crossover

PRODUCT OVERVIEW

XO-206 / XO-206X

The XO-206 is a crossover built for stereo tri amplified sound reinforcement systems. A simplified front panel layout and feature set takes the confusion out of complicated set ups. A completely intuitive interface with protective features means you can setup your system safely and easily. Both the XO-206 and XO-206X models are equipped with 2 inputs and 6 outputs, however the 'X' model uses balanced XLR connectors (as opposed to balanced 6.3mm Jack)

Simplistic, Accurate Control

XO series crossovers feature 24dB/oct Linkwitz/Reilly filters. The crossover frequency for both channels can be controlled from one potentiometer for more accurate control and improved stereo imaging.

Maximum headroom and protection

Your valuable equipment is an investment. This is why we've equiped the XO series with everything needed to protect your gear. A switchable 40Hz 12dB/oct HPF helps to protect LF drivers from over excursion and increase overall system headroom. Each output also benefits from a soft limit switch, reducing excessive volume levels.

The choice is yours

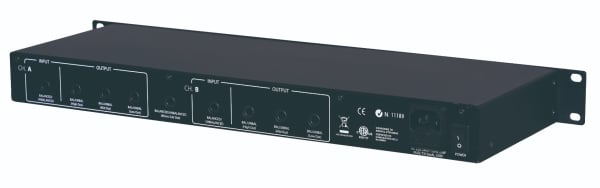

The model is available with 6.3mm balanced jack inputs / outputs or balanced XLR inputs / outputs in the 'X' model.

Key Features

• 3-way stereo model
• 2 x 6.3mm inputs, 6 x 6.3mm outputs
• simplified one control setup for both channels
• Professional 24dB/Oct Linkwitz Riley filters
• Switchable 40Hz 12dB/Oct HPF
• Polarity switch to minimise phasing
• Soft limit option on all channels
• LF / HF mute switches for setup
• LF / HF output level control for overall tonal balance
• Mono LF output switch for subwoofers
• Balanced 1/4" Jack inputs and outputs or Balanced XLR on 'X' model
• Groundlift switch
• 1U 19" rackmount chassis
• 4 LED output level meters plus input clip indicator
