VSYS VSSB-49 Universal Soundbar Bracket for 20"–45" Soundbars, 15 kg

VSYS VSSB-49 Universal Soundbar Bracket for 20"–45" Soundbars, 15 kg

The VSYS VSSB-49 is a universal soundbar bracket that hangs a soundbar of up to 15 kg directly off a television's own VESA holes, available in the UAE from Procure.ae.

Wall-mounting a display usually leaves the audio homeless. There is no shelf, no credenza, and running a soundbar on its own wall plate means a second set of fixings that never quite lines up with the screen. The VSSB-49 removes that problem by borrowing the mounting points already on the back of the TV, so the soundbar becomes part of the display assembly and stays aligned with it even if the screen is later re-positioned or moved to another room.

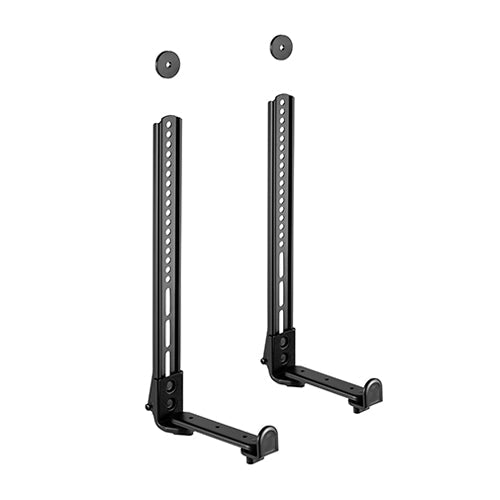

The bracket pair bolts to the rear VESA pattern and can be set above or below the screen depending on cable routing and sight lines. Holders accept soundbars 508 mm to 1143 mm wide and 40 mm to 182 mm deep, and they clamp firmly enough to retain the bar when the display is tilted up to 10 degrees. Height is adjustable, so the gap between screen and speaker can be closed to a near-seamless line. Construction is steel with a powder-coated finish.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Universal soundbar bracket, TV mounted

Key features

01
Fixes to the television's existing VESA holes, so no additional wall drilling is needed beyond the display mount itself.
02
Mounts above or below the screen, which lets the installer keep the soundbar clear of an IR window, camera bar or cable entry.
03
Fits soundbars 508 mm to 1143 mm wide (20 in to 45 in), covering the great majority of commercial and consumer bars.
04
Adjustable depth holders accept bars 40 mm to 182 mm deep (1.6 in to 7.2 in).
05
Anti-tip grip retains the soundbar with the bracket tilted up to 10 degrees, so a tilting display mount can still be used.
06
Adjustable height closes the gap between screen and soundbar for a single clean horizontal line.
07
Rated to 15 kg, enough for heavier commercial bars rather than lightweight units only.
08
Steel construction with a powder-coated finish for long service in public-facing rooms.
09
The soundbar travels with the display, so re-siting the screen does not mean re-drilling for the audio.

Specifications

General
ModelVSSB-49
TypeUniversal soundbar bracket, TV mounted
What's in the BoxBracket pair, Adjustable depth holders, Mounting hardware
Display
Supported Screen SizesSoundbars 508 mm to 1143 mm wide (20 in to 45 in), 40 mm to 182 mm deep
Physical
AdjustabilityHeight adjustable, retains the soundbar at up to 10 degrees of tilt
FinishPowder-coated
Height RangeAdjustable gap between display and soundbar
Load Capacity15 kg
MaterialSteel
MountingMounts to the television, above or below the screen
TiltUp to 10°
VESA MountTelevision rear VESA mounting holes
QR code to VSYS VSSB-49 Universal Soundbar Bracket for 20"–45" Soundbars, 15 kg on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
