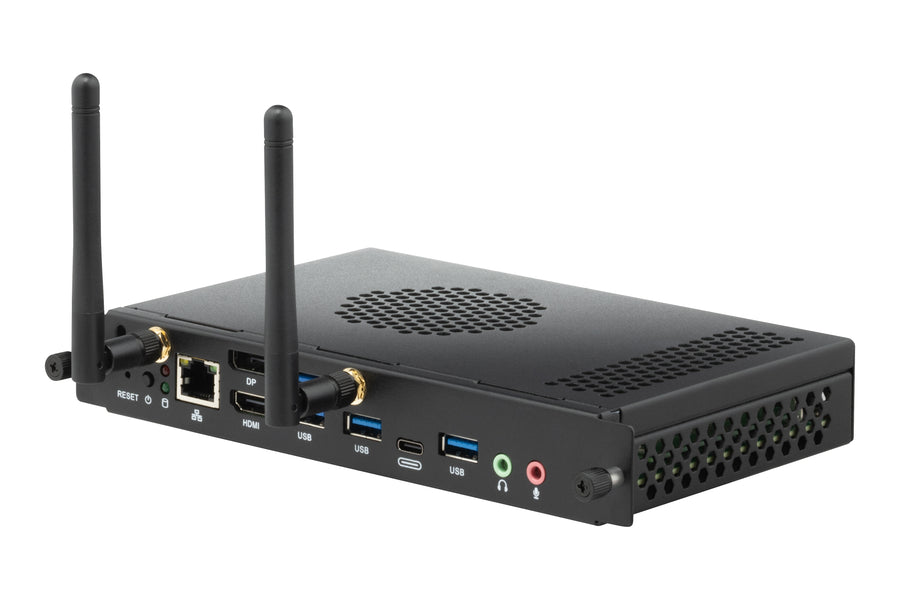

ViewSonic ViewBoard Windows OPS Slot-in PC – VPC35-W53-G1

The ViewSonic VPC35-W53-G1 is a Windows 11 Pro slot-in PC (OPS) for ViewBoard interactive displays. It uses an Intel Core i5-1240P with 16 GB memory, expandable to 32 GB, a 256 GB SSD and a DisplayPort 1.4 output up to 7680 x 4320 at 60 Hz. It suits Windows-based rooms. Procure.ae supplies the VPC35-W53-G1 in the UAE.

The VPC35-W53-G1 uses an Intel Core i5-1240P processor with a 1.7 GHz base clock and turbo boost up to 4.4 GHz. It has 16 GB of DDR4 memory, expandable to 32 GB, and a 256 GB SSD. Intel Iris Xe Graphics with 80 execution units drive a DisplayPort 1.4 output up to 7680 x 4320 at 60 Hz. Intel Wi-Fi 6 AX200 and Bluetooth 5.1 are built in, with an RJ45 LAN port, four USB 3.0 Type-A ports, a USB-C data port and a microphone input. The module draws up to 96 W from a 12–19 V DC supply.

The VPC35-W53-G1 is designed to sync with ViewBoard interactive displays and Presentation Displays. The manufacturer lists Windows 11 Pro as the operating system, with myViewBoard for Windows bundled. Its 202 x 122.6 x 30 mm body weighs 0.6 kg net. The manufacturer's specifications do not state a VESA pattern or mounting kit for the module, so confirm the fitting before ordering. Compared with the VPC37-W53-G1, it uses a Core i5-1240P with 80 graphics execution units instead of 96.

Type

OPS Slot-in PC

Weight

0.6 kg

Key features

Windows 11 Pro

Windows 11 Pro is the listed operating system for this model.

Intel Core i5 processing

Intel Core i5-1240P with a 1.7 GHz base clock and turbo boost up to 4.4 GHz.

Expandable memory

16 GB of DDR4 memory, upgradable to 32 GB.

256 GB SSD

A 256 GB SSD on a PCIe and SATA 3 interface.

High-resolution output

One DisplayPort 1.4 output up to 7680 x 4320 at 60 Hz.

Wireless connectivity

Intel Wi-Fi 6 AX200 with Bluetooth 5.1.

Wired connectivity

RJ45 LAN, four USB 3.0 Type-A ports and a USB-C data port.

Integrated graphics

Intel Iris Xe Graphics with 80 execution units and 32 GB total available graphics memory.

Specifications

General
Key Features	Windows 11 Pro, Intel Core i5-1240P, 16 GB DDR4 (up to 32 GB), 256 GB SSD, DisplayPort 1.4 up to 7680 x 4320, Wi-Fi 6, Bluetooth 5.1, RJ45 LAN
Model	VPC35-W53-G1
Type	OPS Slot-in PC
What's in the Box	VPC OPS module, Quick Start Guide

Performance
Graphics	Intel Iris Xe Graphics (80 EU), 32 GB total available graphics memory
Operating System	Windows 11 Pro
Processor	Intel Core i5-1240P, 1.7 GHz (up to 4.4 GHz turbo)
RAM	16 GB DDR4 (up to 32 GB)
Storage	256 GB SSD (PCIe and SATA 3)

Audio
DisplayPort	1.4, up to 7680 x 4320 at 60 Hz

Connectivity
Bluetooth	Bluetooth 5.1
Ethernet	RJ45 LAN, x1
Input Voltage	DC 12–19 V, 8 A
Ports	USB 3.0 × 4, USB-C × 1 (data only), Line out × 1, Microphone × 1
Wi-Fi	Intel Wi-Fi 6 AX200, 802.11 a/b/g/n/ac/ax

Power
Power Consumption	96 W (max)

Physical
Dimensions	202 x 122.6 x 30 mm
Operating Humidity	10% to 90% RH at 40 °C, non-condensing
Operating Temperature	-5 to 40 °C
Weight	0.6 kg

Compliance
Certifications	cTUVus, FCC, CE EMC, RoHS, REACH, WEEE
