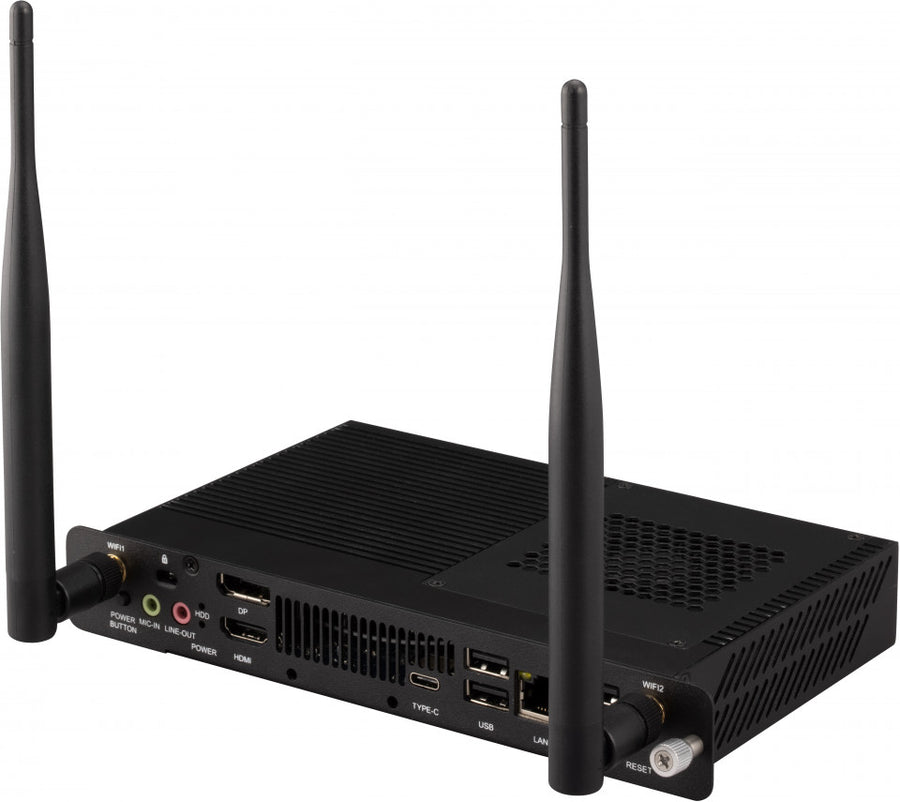

ViewSonic ViewBoard Windows OPS Slot-in PC – VPC27-W53-O1-1B

The ViewSonic VPC27-W53-O1-1B is a Windows 11 Pro slot-in PC (OPS) for ViewBoard interactive displays. It pairs an Intel Core i7-10700T with 16 GB DDR4 memory, a 256 GB NVMe SSD and a 4K DisplayPort output. It suits classrooms and meeting rooms that run Windows. Procure.ae supplies the VPC27-W53-O1-1B in the UAE.

The VPC27-W53-O1-1B uses a 10th Gen Intel Core i7-10700T processor rated at 2.0 GHz, with turbo boost up to 4.5 GHz, plus 16 GB of DDR4 memory and a 256 GB NVMe SSD. Intel UHD Graphics 630 drives one DisplayPort 1.2 output at 3840 x 2160 and 60 Hz. Dual-band Wi-Fi and Bluetooth 5.2 are built in, along with a Gigabit RJ45 LAN port, four USB Type-A ports, a USB-C data port and a microphone input. The module draws 65 W typically from a 12–19 V DC supply.

The VPC27-W53-O1-1B is designed to sync with ViewBoard interactive displays and wireless presentation displays. The manufacturer lists Windows 11 Pro as the operating system, with a Windows 10 Pro downgrade preinstalled. The manufacturer's specifications do not state a VESA pattern or mounting kit for the module, so confirm the fitting with Procure.ae before ordering. Compared with the VPC27-S53-O1-1B, which lists UEFI Shell, this model runs Windows with the same processor, memory and storage.
