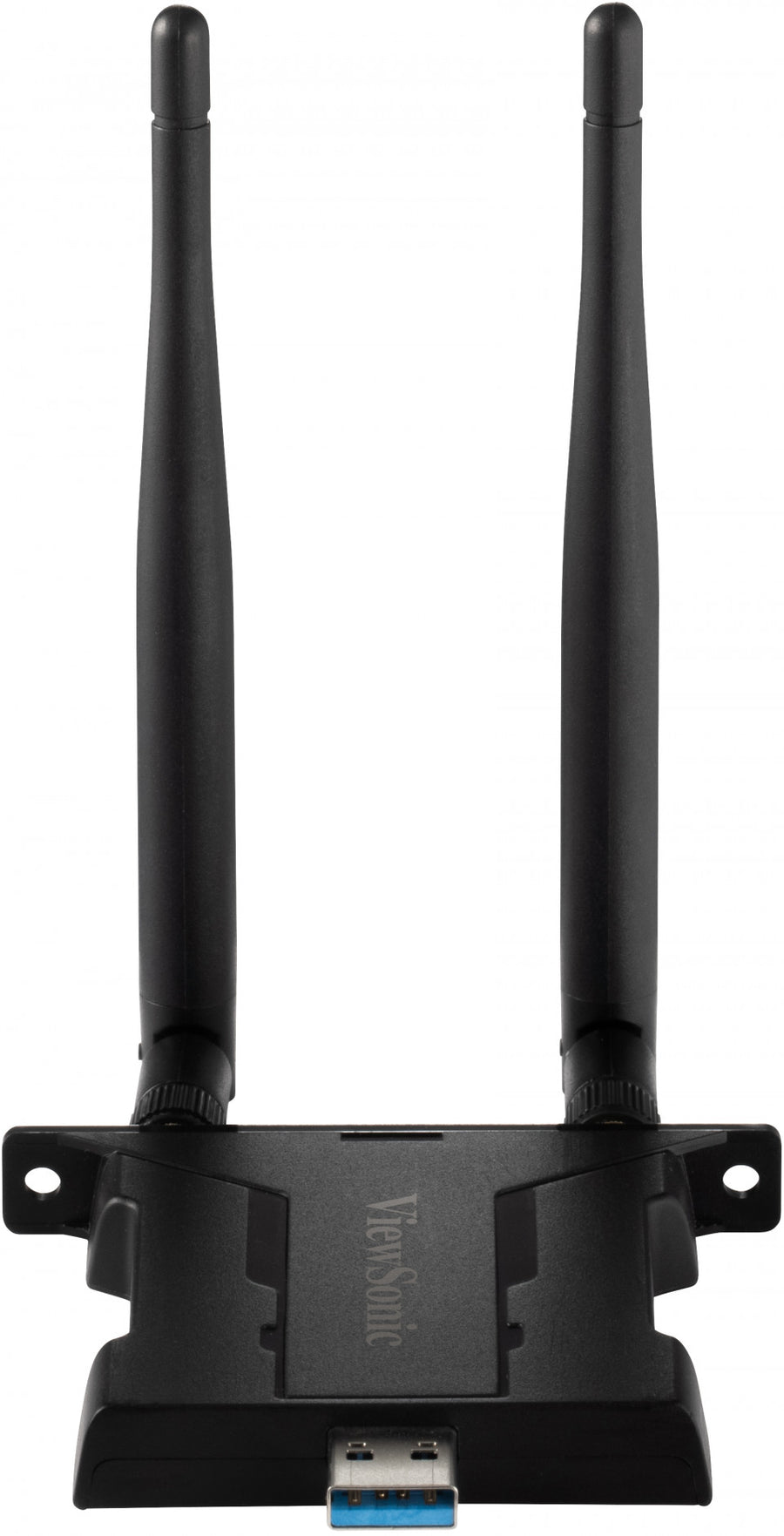

ViewSonic ViewBoard Wi-Fi 6 Wireless Module – VB-WIFI-005

The ViewSonic VB-WIFI-005 is a Wi-Fi 6 (802.11ax) wireless module for selected ViewBoard and Presentation Display models. It runs dual-frequency 2.4 GHz and 5 GHz bands on a 5 V DC, 0.9 A supply and consumes less than 4.5 W. Procure.ae supplies the ViewSonic VB-WIFI-005 across the UAE.

The VB-WIFI-005 connects a supported ViewBoard or Presentation Display to a wireless network using the Wi-Fi 6 (802.11ax) standard. It operates on dual-frequency 2.4 GHz and 5 GHz bands. Power comes from a 5 V DC, 0.9 A supply, and consumption stays below 4.5 W. The module is rated for 0 to 40 °C operation and 10% to 90% non-condensing humidity, and weighs 30 g net.

The VB-WIFI-005 is listed for selected models only, so Procure.ae can confirm whether your display is supported before you order. Its power, weight and operating range match the VB-WIFI-001, but it is listed for Presentation Displays rather than Wireless Presentation Displays. Procure.ae arranges installation across the UAE and offers bulk and project quotes.

Type

Wi-Fi Module

Weight

30 g

Key features

Wi-Fi 6 standard

uses 802.11ax for wireless internet access.

Dual-band operation

runs on 2.4 GHz and 5 GHz frequency bands.

Selected model support

works with selected ViewBoard and Presentation Display models.

Low power draw

requires 5 V DC at 0.9 A and consumes less than 4.5 W.

Lightweight module

weighs 30 g net.

Operating range

rated for 0 to 40 °C and 10% to 90% non-condensing humidity.

Specifications

General
Compatibility	Selected ViewBoard and Presentation Display models
Key Features	Wi-Fi 6 (802.11ax), dual-band 2.4 GHz and 5 GHz, selected ViewBoard and Presentation Display models, 5 V DC 0.9 A, under 4.5 W
Model	VB-WIFI-005
Type	Wi-Fi Module

Connectivity
Frequency Band	2.4 GHz / 5 GHz
Input Voltage	5 V DC, 0.9 A
Wi-Fi	Wi-Fi 6 (802.11ax), dual-band 2.4 GHz / 5 GHz

Power
Power Consumption	Less than 4.5 W

Physical
Operating Humidity	10% to 90% RH (non-condensing)
Operating Temperature	0 to 40 °C
Weight	30 g
