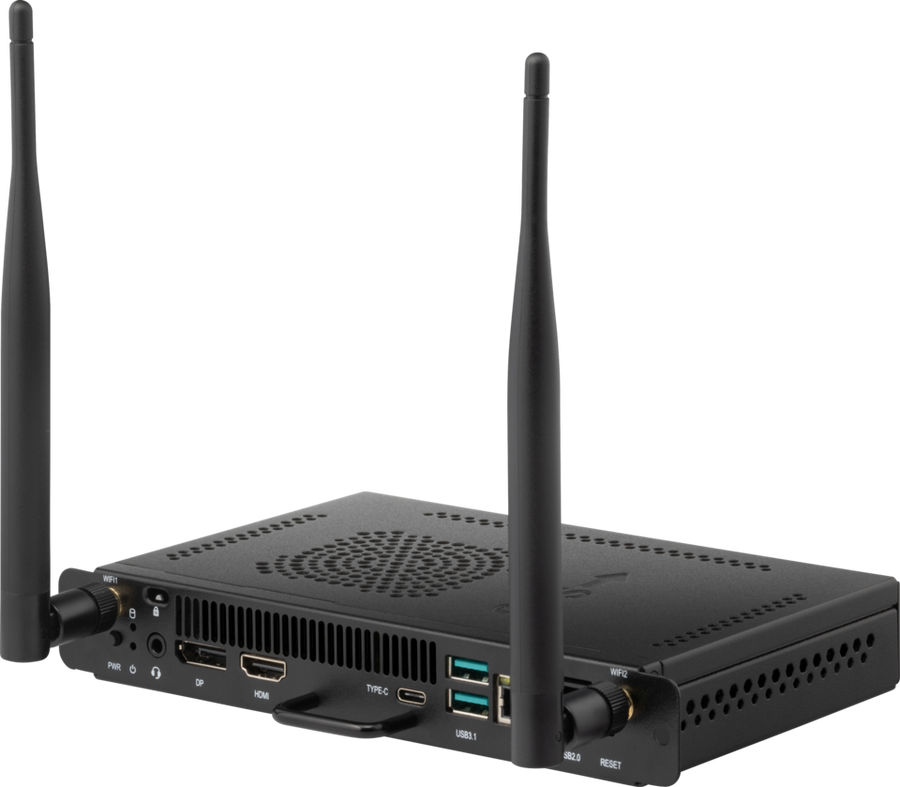

ViewSonic ViewBoard OPS Slot-in PC – VPCF5-W55-G1-2A

The ViewSonic VPCF5-W55-G1-2A is an OPS slot-in PC with an Intel 12th Gen Core i5 or later processor, 16 GB of memory and a 512 GB M.2 SSD. It runs Windows 11 Pro and includes Wi-Fi 6 and Bluetooth 5.2 for ViewBoard displays. Procure.ae, an authorised reseller, supplies it across the UAE for schools, offices and government.

The VPCF5-W55-G1-2A pairs an Intel 12th Gen Core i5 or later processor with Intel Iris Xe graphics, 16 GB of DDR4 memory and a 512 GB M.2 PCIe SSD. The 80-pin OPS connector carries HDMI 2.0 at 4K and 60 Hz, DisplayPort at 5K and 60 Hz, one USB 3.0 port, two USB 2.0 ports and DC 12-19 V power. DisplayPort output supports up to 8K at 30 Hz. Dual-band Wi-Fi 6, Bluetooth 5.2 and a 10/100/1000 Mbps RJ45 port cover network connections, and the unit draws up to 90 W.

Choose this model for a ViewBoard display that needs a built-in Windows 11 Pro computer with more memory and storage than the VPCF5-W33-G1-2A. Its power input is 19 V DC at 4.74 A, so confirm the power requirement of your display before installation. The rated operating range is 0 to 40 °C at 20% to 80% RH, non-condensing.

Type

OPS Slot-in PC

Weight

0.7 kg

Key features

Windows 11 Pro

Runs Windows 11 Pro on an Intel 12th Gen Core i5 or later processor.

Memory and storage

Provides 16 GB of DDR4 memory and a 512 GB M.2 PCIe SSD for larger files and multi-app sessions.

80-pin OPS connector

Carries HDMI 2.0 at 4K 60 Hz, DisplayPort at 5K 60 Hz, USB 3.0 and USB 2.0 ports, and DC 12-19 V power.

Wi-Fi 6 and Bluetooth 5.2

Dual-band 802.11ax Wi-Fi 6 with Bluetooth 5.2 through an Intel wireless module.

Gigabit RJ45 port

One RJ45 port for wired networking at 10/100/1000 Mbps.

USB and audio connections

Two USB 3.1 Type-A ports, one USB 3.1 Gen 2 Type-C data port and a combined mic and line-out jack.

Compact chassis

Measures 200 x 119 x 30 mm and weighs 0.7 kg for installation behind a compatible display.

Specifications

General
Key Features	Intel 12th Gen processor, 16 GB RAM, 512 GB SSD, Wi-Fi 6, Bluetooth 5.2, 80-pin OPS connector, Windows 11 Pro
Model	VPCF5-W55-G1-2A
Type	OPS Slot-in PC
What's in the Box	Quick start guide, 2 screws, 2 antennas

Performance
Graphics	Intel Iris Xe Graphics; DisplayPort up to 8K at 30 Hz, HDMI up to 3840 x 2160 at 30 Hz
Operating System	Windows 11 Pro
Processor	Intel 12th Gen Core i5 or later
RAM	16 GB
Storage	512 GB M.2 SSD (PCIe)

Audio
Audio	MIC-in and line-out combo connector

Connectivity
Bluetooth	Bluetooth 5.2
Ethernet	RJ45 10/100/1000 Mbps x 1
Input Voltage	DC 19 V, 4.74 A
OPS Slot	80-pin OPS: HDMI 2.0 4K at 60 Hz, DP 5K at 60 Hz, USB 3.0 x 1, USB 2.0 x 2, DC 12-19 V
USB Ports	USB 3.1 x 2, USB 2.0 x 2
USB-C Ports	USB 3.1 Gen 2 x 1 (data only)
Wi-Fi	Wi-Fi 6 (802.11ax)

Power
Power Consumption	90 W (max)

Physical
Dimensions	200 x 119 x 30 mm
Operating Humidity	20% to 80% RH (non-condensing)
Operating Temperature	0 to 40 °C
Weight	0.7 kg
