ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IN8605-C — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
ViewSonic · IN8605-C · Interactive Flat Panel

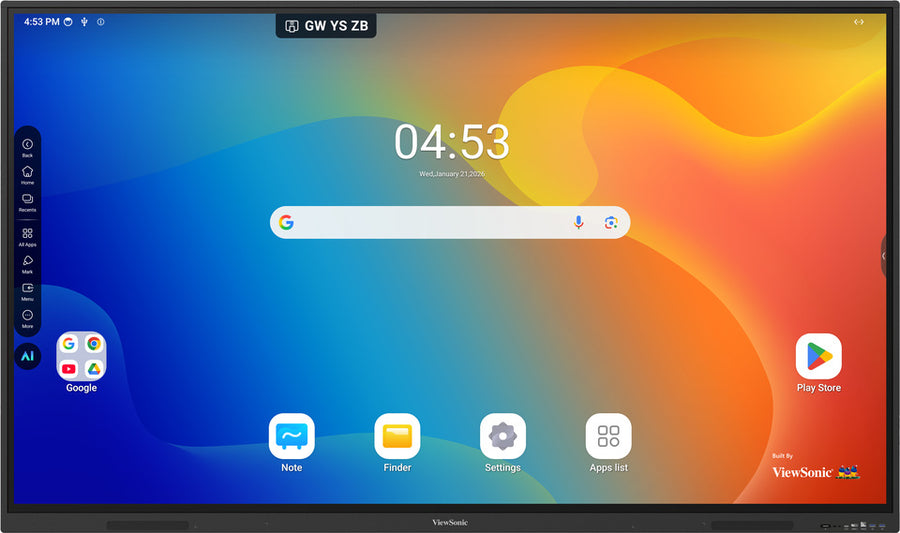

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IN8605-C

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IN8605-C

The ViewSonic IN8605-C is an 86-inch 4K UHD interactive flat panel for classrooms, lecture halls and meeting rooms. It offers 50-point touch on Windows and Android, built-in Wi-Fi and Android 16 with Google Play access. Procure.ae supplies the ViewSonic IN8605-C in the UAE.

The IN8605-C has an 86-inch LCD panel at 3840 x 2160 resolution, with 400 nits of brightness, a 5,000:1 contrast ratio with DCR enabled and a 6.5 ms response time. Its 9H surface has an anti-glare coating and zero bonding treatment, and the infrared touch system supports 50 touch points on Windows and 50 on Android with a touch resolution of 32768 × 32768. The octa-core processor, 8 GB RAM and 128 GB storage run the Android platform, and the 80-pin OPS slot takes an optional PC module.

The IN8605-C suits classrooms, lecture halls, boardrooms and training rooms where teachers and presenters write, annotate and share content. Built-in Wi-Fi and a 10/100/1000 Mbps RJ45 port provide network connectivity, and the USB 3.2 Gen 1 Type-A ports support SmartPort USB. The panel mounts on an 800 x 600 mm VESA pattern. The IN7505-C, also in the IN05 range, is the 75-inch option.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
49.9 kg

Key features

01
Android 16 platform
Android 16 with Google Play Store access under the Android Enterprise Device License Agreement (EDLA).
02
4K UHD display
3840 x 2160 resolution with 400 nits brightness and a 5,000:1 contrast ratio (with DCR enabled).
03
50-point touch
infrared Ultra Fine Touch supports 50 touch points on Windows and Android.
04
Built-in Wi-Fi
Wi-Fi plus a 10/100/1000 Mbps RJ45 port for wired network connection.
05
OPS slot
one 80-pin OPS slot for an optional PC module.
06
SmartPort USB
front and side USB 3.2 Gen 1 Type-A ports support Smart USB, and one side port supports EDLA only.
07
Front USB-C
one front USB 3.2 Gen 1 Type-C port with PD, where extended screen and touchback are not supported.
08
Sensors
light sensor and environmental sensor included.

Specifications

General
Key FeaturesAndroid 16 with Google Play access, 3840 x 2160 panel, 50-point touch on Windows and Android, Built-in Wi-Fi, 80-pin OPS slot, Light and environmental sensors, 9H anti-glare coating
ModelIN8605-C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size15 x 15 x 15 x 43.6 mm (L/R/T/B)
Brightness400 nits
Contrast Ratio5,000:1 (with DCR enabled)
OrientationLandscape
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size86 inch
Touch Points50-point multi-touch
Touch Resolution32768 × 32768
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 16
ProcessorOcta-core
RAM8 GB
Storage128 GB
Connectivity
ConnectivityBuilt-in Wi-Fi, RJ45 (10/100/1000 Mbps)
Input Voltage100–240 V AC
OPS Slot1 × 80-pin OPS slot
PortsRS232 × 1, RJ45 × 1, OPS × 1, Audio × 2, USB Type-A × 4, USB Type-B × 2, USB-C × 1
Power
Power Consumption83.4 W (normal)
Standby Power<0.5 W
Physical
Color1.07B colors (8-bit + FRC)
Dimensions1957 x 1159.9 x 98.6 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount800 x 600 mm
Weight49.9 kg
