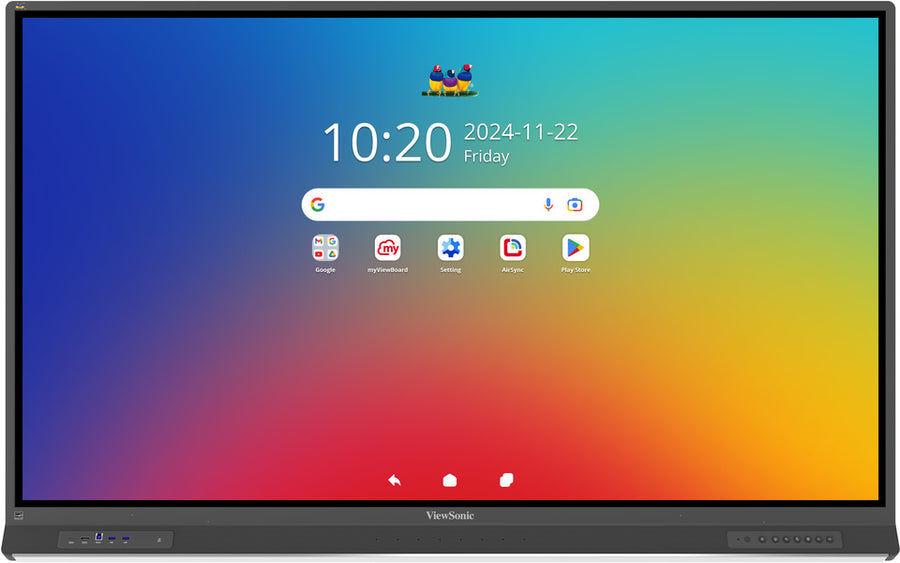

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8653-ED
The ViewSonic ViewBoard IFP8653-ED is an EDLA-certified 86-inch 4K UHD interactive display for classrooms, with quick-start annotation and quick color switching. It runs Android 14 with 16 GB RAM and 128 GB storage, and offers 40-point Windows touch. Procure.ae supplies the IFP8653-ED across the UAE, with delivery and installation.
The IFP8653-ED has an 86-inch LCD with 3840 x 2160 resolution and 1.07 billion colors. Brightness is 450 nits typical, with 1,200:1 typical contrast and 5,000:1 minimum with DCR enabled. Ultra Fine Touch supports 40 points on Windows and 20 on Android, with a 32767 x 32767 touch resolution. The octa-core CPU, 16 GB RAM and 128 GB storage run EDLA-certified Android 14, and the panel includes light and pen sensors.
The IFP8653-ED suits classrooms where teachers want to start annotating at once and need certified Android with Google Play apps. Users can switch between four colors quickly, and the shortcut sidebar helps begin multitasking. NFC card sign-in and single sign-on give quick access to personalized launchers and cloud storage. Compared with the IFP8653, this model adds EDLA certification, while the memory, storage and brightness figures are the same.
Key features
Specifications
| Controls | Shortcut sidebar, quick-start annotation with four colors |
| Key Features | EDLA-certified Android 14, quick color switching, NFC and SSO sign-in, pen sensor, light sensor, AirSync wireless presentation, triple USB-C input, 40-point Windows touch |
| Model | IFP8653-ED |
| Type | Interactive Flat Panel |
| Aspect Ratio | 16:9 |
| Brightness | 450 nits (typical) |
| Color Depth | 1.07 billion colors |
| Contrast Ratio | 1,200:1 (typical); 5,000:1 (minimum, DCR enabled) |
| Orientation | Landscape |
| Panel Technology | LCD |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Points | 40-point touch (Windows); 20-point touch (Android) |
| Touch Resolution | 32767 x 32767 |
| Touch Technology | Ultra Fine Touch (UFT) |
| Viewing Angle | 178° horizontal, 178° vertical |
| Operating System | Android 14 |
| Processor | Octa-core CPU |
| RAM | 16 GB |
| Storage | 128 GB |
| Audio In | PC audio in x1 |
| Connectivity | AirSync wireless presentation, NFC card sign-in, single sign-on |
| Input Voltage | 100–240 V AC ±10% |
| OPS Slot | 1 OPS module slot |
| Ports | RGB/VGA x1, DisplayPort x1, audio in x1, RS232 x1, OPS module slot x1, earphone out x1, RJ45 x2, USB 3.2 Gen 1 Type-A x4, USB 2.0 Type-A x1, USB 3.2 Gen 1 Type-B x3, USB Type-C x3 input, DP output x1 |
| Serial Port | RS232 x1 |
| USB-C Ports | 3 input ports: front PD 100 W (DP 1.2, Ethernet); rear PD 65 W (DP 1.2, Ethernet); rear PD 15 W |
| Power Consumption | 131.53 W (on); under 0.5 W (off) |
| Dimensions | 1952.4 x 1197.2 x 118.4 mm |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 7H hardness, anti-glare coating |
| VESA Mount | 800 x 600 mm |
| Weight | 63.35 kg (net) |
| Certifications | EDLA-certified |
