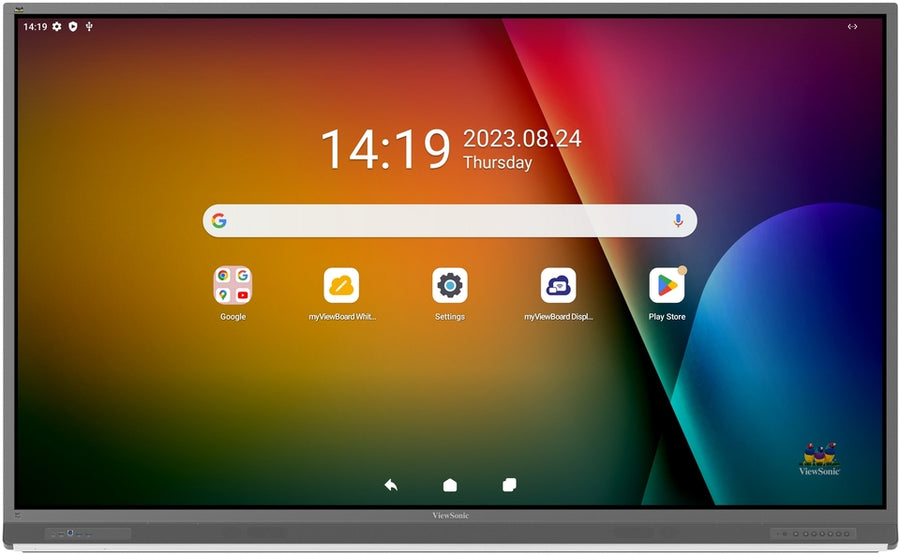

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8652-2F

ViewSonic ViewBoard 86-inch 4K Interactive Flat Panel – IFP8652-2F

The ViewSonic ViewBoard IFP8652-2F is an 86-inch 4K UHD interactive flat panel certified under the Android Enterprise Device License Agreement (EDLA). It runs Android 13 with 40-point Windows touch, 4,000:1 typical contrast and three USB-C ports for laptop connection. Procure.ae supplies the IFP8652-2F across the UAE, with delivery and installation.

The IFP8652-2F has an 86-inch VA panel with 3840 x 2160 resolution and 350 nits typical brightness. Contrast is 4,000:1 typical and 5,000:1 minimum with DCR enabled. Ultra Fine Touch supports 40 touch points on Windows and 20 on Android, with a 32767 x 32767 touch resolution. The octa-core processor with 8 GB RAM and 64 GB storage runs Android 13 with myViewBoard WhiteBoard, and split-screen multitasking is supported for collaborative work.

The IFP8652-2F suits enterprise and education settings that need certified Android with Google Play Store access and a Windows option through its OPS module slot. The front and rear Type-C ports provide 65 W and 100 W power delivery with DisplayPort 1.2 and Ethernet, and a third rear port carries data only. vCast and AirSync handle wireless casting. Its built-in microphones and front-facing speaker support in-room and remote students. Compared with the IFP8652-1CF, it lists 40-point Windows touch and 4,000:1 typical contrast, where the 1CF lists 33 points and 1,100:1.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Touch Technology
Ultra Fine Touch (UFT)
Type
Interactive Flat Panel
Weight
74 kg (net)

Key features

01
EDLA-certified Android 13
Android Enterprise Device License Agreement certification with Google Play Store access.
02
Ultra Fine Touch
40-point touch on Windows and 20-point touch on Android.
03
4K UHD VA panel
3840 x 2160 at 16:9 with 350 nits typical brightness and 4,000:1 typical contrast.
04
Octa-core processor
Octa-core CPU with 8 GB RAM and 64 GB of storage.
05
Triple USB-C ports
Front 65 W and rear 100 W power delivery ports both carry DP 1.2 and Ethernet.
06
Wireless casting
vCast and AirSync wireless presentation with simple LAN sharing to slot-in devices.
07
Built-in microphones
Built-in microphones and a front-facing speaker for in-room and remote students.
08
Split-screen multitasking
Collaborate with split-screen multitasking on the Android side.

Specifications

General
Key FeaturesEDLA-certified Android 13, Google Play Store access, 40-point Windows touch, split-screen multitasking, triple USB-C ports, vCast casting, built-in microphones, front-facing speaker
ModelIFP8652-2F
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness350 nits (typical)
Color Depth1.07 billion colors
Contrast Ratio4,000:1 (typical); 5,000:1 (minimum, DCR enabled)
OrientationLandscape
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time7 ms or less
Screen Size86 inch
Touch Points40-point touch (Windows); 20-point touch (Android)
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (UFT)
Viewing Angle178° horizontal, 178° vertical
Performance
Operating SystemAndroid 13
ProcessorOcta-core (4 x Cortex-A73, 4 x Cortex-A53)
RAM8 GB
Storage64 GB
Audio
MicrophoneBuilt-in microphones
Speaker TypeFront-facing speaker
Connectivity
ConnectivityvCast and AirSync wireless presentation; simple LAN sharing with slot-in device
Input Voltage100–240 V AC ±10%
OPS Slot1 OPS module slot
PortsRGB/VGA x1, DisplayPort x1, audio in x1, RS232 x1, OPS module slot x1, earphone out x1, RJ45 x2, USB 3.0 Type-A x4, USB 2.0 Type-A x1, USB 3.0 Type-B x3, USB Type-C x3
Serial PortRS232 x1
USB-C Ports3 ports: front DP 1.2, Ethernet, PD 65 W; rear DP 1.2, Ethernet, PD 100 W; rear data only
Power
Power Consumption148.12 W (Energy Star); under 0.5 W (off)
Physical
Dimensions1971.16 x 1212.54 x 121.38 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight74 kg (net)
Compliance
CertificationsEDLA-certified (Android Enterprise Device License Agreement)
