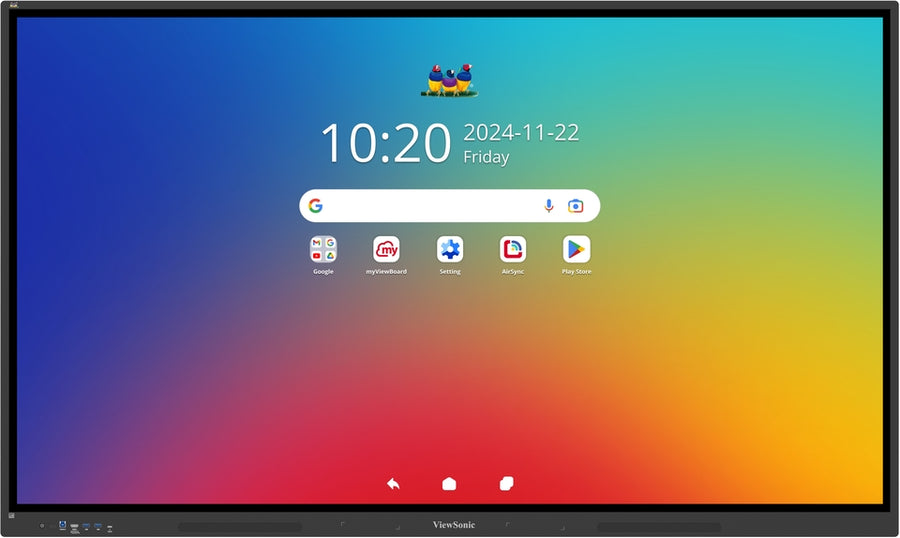

ViewSonic ViewBoard 86-inch 4K EDLA Interactive Flat Panel – IFP8634

ViewSonic ViewBoard 86-inch 4K EDLA Interactive Flat Panel – IFP8634

The ViewSonic IFP8634 is an 86-inch 4K UHD interactive display certified under the Android Enterprise Device License Agreement (EDLA). It runs Android 14 with Play Store access, supports 40-point touch with palm rejection and has an optional Intel OPS slot. Procure.ae supplies the ViewSonic IFP8634 across the UAE.

The ViewBoard IFP8634 is an 86-inch 4K UHD display with a DLED-backlit TFT LCD panel, 350 nits brightness and a 5,000:1 maximum contrast ratio with DCR enabled. Its 8 ms response time and 178° viewing angles suit large rooms. Ultra Fine Touch supports 40 points with palm rejection, and the panel works with fingers or pens. A quad-core processor, 8 GB of DDR4 RAM and 128 GB of storage run EDLA-certified Android 14. The panel also has an optional Intel standard OPS slot.

The IFP8634 suits K-12 and higher-education classrooms and meeting rooms where educators need managed devices. Android 14 gives full access to the Google Play Store for educational and productivity apps. Integrated ViewSonic Education Software adds digital whiteboarding, wireless casting with AirSync and centralized device management with Manager. Its 800 x 600 mm VESA pattern suits a wall bracket, and the panel weighs 62.3 kg net.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Ultra Fine Touch (UFT)
Type
Interactive Flat Panel
Weight
62.3 kg (net)

Key features

01
EDLA-certified Android 14
Full Google Play Store access for educational and productivity apps.
02
40-point touch
Ultra Fine Touch with palm rejection, usable with fingers or pens.
03
86-inch 4K panel
3840 x 2160 resolution with 1.07 billion colors.
04
AirSync casting
Wireless presentation with AirSync.
05
Device management
Manager software for centralized device management.
06
Optional OPS slot
Optional Intel standard OPS module for a slot-in PC.
07
Power-efficient design
Power consumption of 114.15 W when on and 0.5 W or less when off.
08
Optional Wi-Fi
Optional VB-WIFI-004, VB-WIFI-006 or VSB-050 Wi-Fi module.

Specifications

General
Key FeaturesEDLA certified, Android 14 with Play Store access, 40-point touch with palm rejection, AirSync wireless casting, Manager device management, optional OPS and Wi-Fi, energy-efficient design
ModelIFP8634
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness350 nits
Color Depth1.07 billion colors
Contrast Ratio5,000:1 (max., with DCR enabled)
Panel TechnologyTFT LCD with DLED backlight
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points40-point multi-touch, palm rejection
Touch Resolution32767 x 32767
Touch TechnologyUltra Fine Touch (UFT)
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorQuad-core
RAM8 GB DDR4
Storage128 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional Intel standard OPS
PortsDisplayPort × 1, RGB/VGA × 1, RS232 × 1, SD/SDHC × 1, RJ45 × 2, Audio In × 1, Audio Out × 1, USB 3.2 Gen 1 × 4 (front × 2, rear × 2), USB 2.0 × 1, USB 3.0 × 2, USB-C × 1
USB-C Ports1 (front; PD 65 W with OPS-off, 15 W with OPS; DP 1.2 and 10/100 Mbps sharing), plus rear PD 15 W
Power
Power Consumption114.15 W (on), 0.5 W or less (off)
Physical
Dimensions1961.8 x 1163.9 x 87.7 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Surface Protection7H hardness, anti-glare coating
VESA Mount800 x 600 mm
Weight62.3 kg (net)
