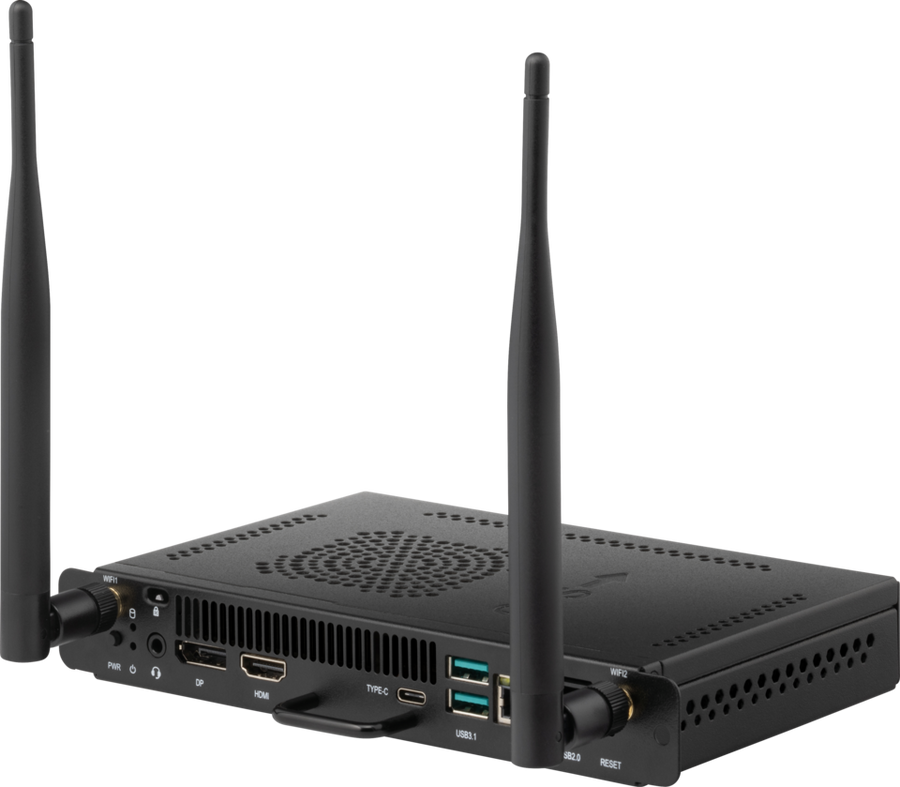

ViewSonic ViewBoard 80-pin OPS Slot-in PC – VPCF5-S55-G1-2A

The ViewSonic VPCF5-S55-G1-2A is an 80-pin OPS slot-in PC for ViewBoard interactive displays. It uses a 12th Gen Intel Core i5 or later processor with 16 GB memory, a 512 GB PCIe SSD and Wi-Fi 6 with Bluetooth 5.2. Its graphics support up to 8K at 30 Hz over DisplayPort. Procure.ae supplies the VPCF5-S55-G1-2A in the UAE.

The VPCF5-S55-G1-2A uses a 12th Gen Intel Core i5 or later processor, with 16 GB of DDR4 memory and a 512 GB PCIe SSD. Its DisplayPort output supports up to 8K at 30 Hz, and its 80-pin OPS connector carries HDMI 2.0 at 4K 60 Hz and DisplayPort at 5K 60 Hz. Intel Wi-Fi 6 AX101 and Bluetooth 5.2 are built in, with an RJ45 LAN port, USB 3.1 and USB 2.0 Type-A ports and a USB-C data port. It draws up to 90 W from a 19 V DC supply at 4.74 A.

The VPCF5-S55-G1-2A is designed to sync with ViewBoard interactive displays and Presentation Displays, and it uses an 80-pin OPS connector. The manufacturer lists UEFI Shell as the operating system. The module measures 200 x 119 x 30 mm and weighs 0.7 kg net. The manufacturer's specifications do not state a VESA pattern or mounting kit for the module, so confirm the fitting before ordering. Compared with the VPCF5-S33-G1-2A, this model has double the memory and storage, at 16 GB and 512 GB.

Type

OPS Slot-in PC

Weight

0.7 kg

Key features

12th Gen Intel Core i5

Intel Core i5 12th Gen or later processor.

16 GB memory

16 GB of DDR4 memory on the module.

512 GB PCIe SSD

512 GB M.2 SSD on a PCIe interface.

80-pin OPS connector

Carries HDMI 2.0 at 4K 60 Hz, DisplayPort at 5K 60 Hz, and USB 3.0 and USB 2.0 ports.

Graphics output

Intel Iris Xe Graphics with DisplayPort support up to 8K at 30 Hz.

Wireless connectivity

Intel Wi-Fi 6 AX101 with Bluetooth 5.2.

Wired connectivity

RJ45 LAN, USB 3.1 and USB 2.0 Type-A ports, and a USB-C data port.

Low power draw

Up to 90 W maximum from a 19 V DC supply at 4.74 A.

Specifications

General
Key Features	12th Gen Intel Core i5, 16 GB DDR4, 512 GB PCIe SSD, 80-pin OPS connector, DisplayPort up to 8K, Wi-Fi 6, Bluetooth 5.2, RJ45 LAN
Model	VPCF5-S55-G1-2A
Type	OPS Slot-in PC
What's in the Box	Quick Start Guide, 2 screws, 2 antennas

Performance
Graphics	Intel Iris Xe Graphics
Operating System	UEFI Shell
Processor	Intel 12th Gen Core i5 or later
RAM	16 GB DDR4
Storage	512 GB PCIe M.2 SSD

Audio
DisplayPort	Up to 8K at 30 Hz

Connectivity
Bluetooth	Bluetooth 5.2
Ethernet	RJ45 LAN, 10/100/1000 Mbps
Input Voltage	DC 19 V, 4.74 A
OPS Slot	80-pin: HDMI 2.0 4K at 60 Hz, DisplayPort 5K at 60 Hz, USB 3.0 × 1, USB 2.0 × 2
Ports	USB 3.1 Type-A × 2, USB 2.0 Type-A × 2, USB-C 3.1 Gen 2 × 1 (data only), Mic-in/Line-out combo × 1
Wi-Fi	Intel Wi-Fi 6 AX101, 802.11ax

Power
Power Consumption	90 W (max)

Physical
Dimensions	200 x 119 x 30 mm
Operating Humidity	20% to 80% RH, non-condensing
Operating Temperature	0 to 40 °C
Weight	0.7 kg

Compliance
Certifications	CE EMC, LVD, CE RED, RoHS, REACH, WEEE, CB2018
