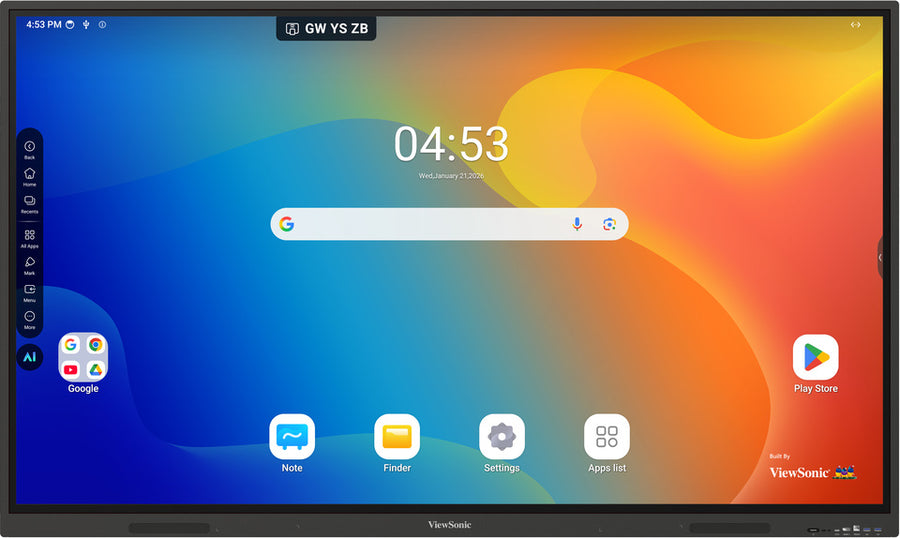

ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – IN7505-C

ViewSonic ViewBoard 75-inch 4K Interactive Flat Panel – IN7505-C

The ViewSonic IN7505-C is a 75-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It offers 50-point touch on Windows and Android, 400 nits of brightness and built-in Wi-Fi, with Android 16 and Google Play access. Procure.ae supplies the ViewSonic IN7505-C in the UAE.

The IN7505-C uses a 75-inch LCD panel at 3840 x 2160 resolution, with 400 nits of brightness and a 5,000:1 contrast ratio with DCR enabled. Its 9H anti-glare surface and bonding technology reduce glare, and the panel has a 6.5 ms response time. The infrared touch system supports 50 touch points on Windows and 50 on Android, with a touch resolution of 32768 × 32768. An octa-core processor, 8 GB RAM and 128 GB storage run the Android 16 platform, and the 80-pin OPS slot takes an optional PC module.

The IN7505-C suits classrooms, lecture halls, boardrooms and training rooms where teachers and presenters write, annotate and share content. Built-in Wi-Fi and a 10/100/1000 Mbps RJ45 port provide network connectivity, and four USB Type-A ports, two USB Type-B ports and a front USB-C port cover peripherals. The panel mounts on an 800 x 400 mm VESA pattern. The 86-inch IN8605-C in the same ViewBoard range is the larger option.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
40.3 kg

Key features

01
Android 16 platform
runs Android 16 under the Android Enterprise Device License Agreement (EDLA), with Google Play Store access.
02
4K UHD panel
3840 x 2160 resolution with 400 nits of brightness and a 5,000:1 contrast ratio (with DCR enabled).
03
50-point touch
infrared Ultra Fine Touch supports 50 touch points on Windows and 50 on Android.
04
Built-in Wi-Fi
Wi-Fi plus a 10/100/1000 Mbps RJ45 port for wired network connection.
05
OPS slot
one 80-pin OPS slot for an optional PC module.
06
Multiple USB ports
four USB Type-A, two USB Type-B and one front USB-C port, with extended screen and touchback not supported on the USB-C port.
07
Built-in speakers
integrated audio, with light and environmental sensors included.
08
Anti-glare surface
9H hardness, anti-glare coating and zero bonding treatment.

Specifications

General
Key FeaturesAndroid 16 with Google Play access, 3840 x 2160 panel, 50-point touch on Windows and Android, Built-in Wi-Fi, 80-pin OPS slot, Built-in speakers, Light and environmental sensors, 9H anti-glare surface
ModelIN7505-C
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDLED
Bezel Size16.55 x 16.55 x 16.55 x 45 mm (L/R/T/B)
Brightness400 nits
Contrast Ratio5,000:1
Panel TechnologyLCD
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Points50-point multi-touch
Touch Resolution32768 × 32768
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 16
ProcessorOcta-Core
RAM8 GB
Storage128 GB
Connectivity
ConnectivityBuilt-in Wi-Fi, RJ45 (10/100/1000 Mbps)
Input Voltage100–240 V AC
OPS Slot1 × 80-pin OPS slot
PortsRJ45 × 1, RS232 × 1, OPS × 1, USB Type-A × 4, USB Type-B × 2, USB-C × 1, Audio × 1
Power
Power Consumption74 W (typical)
Standby Power<0.5 W
Physical
Dimensions1712 x 1022 x 99.6 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight40.3 kg
