ViewSonic 105-inch 5K UltraWide Digital Signage Display – CDE105UW

ViewSonic 105-inch 5K UltraWide Digital Signage Display – CDE105UW

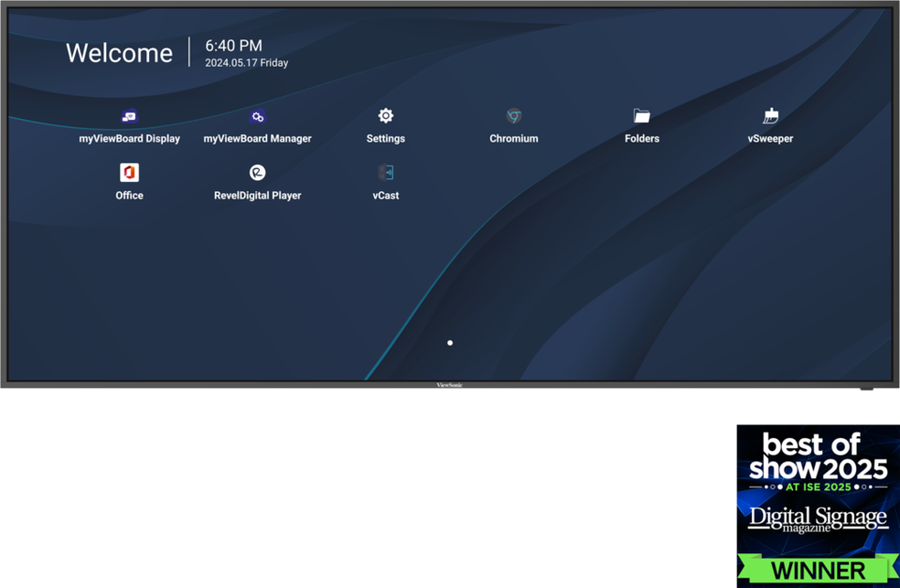

The ViewSonic CDE105UW is a 105-inch 5K UltraWide digital signage display with a 21:9 aspect ratio, 5120 x 2160 resolution and an octa-core Android 13 processor. It suits corporate and commercial rooms, including Microsoft Teams Rooms and Front Row Mode setups. Procure.ae supplies it across the UAE as an authorised ViewSonic reseller.

The CDE105UW has a 105-inch VA panel with DLED backlight, a 5120 x 2160 native resolution and a 21:9 aspect ratio. The manufacturer says this gives 33% more screen real estate than a comparable 16:9 display. It is rated at 500 nits typical brightness and 5,000:1 typical contrast, with a response time under 14 ms and 178-degree viewing angles. An octa-core processor with four Cortex-A76 and four Cortex-A55 cores runs Android 13, with 8 GB DDR4 RAM and 128 GB eMMC storage.

The CDE105UW is designed for corporate and commercial use. It supports daisy chaining, and ViewSonic Manager is pre-installed for centralised device management. Revel Digital and ViewSonic Launcher are included. Wireless content sharing uses AirSync and vCast. The USB-C port delivers up to 100 W with DisplayPort 1.2 and Ethernet, or 65 W when an OPS module is fitted. An OPS slot and a WiFi module slot allow expansion.

Screen Size
105 inch
Resolution
5120 x 2160 (5K UltraWide)
Brightness
500 nits (typical)
Type
Digital Signage Display
Weight
53.05 kg

Key features

01
5K UltraWide panel
5120 x 2160 native resolution in a 21:9 aspect ratio.
02
Android 13 octa-core
Octa-core processor with 8 GB DDR4 RAM and 128 GB eMMC storage.
03
USB-C with 100 W
Power delivery up to 100 W, or 65 W with an OPS module fitted, plus DisplayPort 1.2.
04
Wireless content sharing
AirSync and vCast sharing, with a WiFi module slot for wireless connectivity.
05
Daisy chaining
Supports daisy chaining for multi-screen installations.
06
ViewSonic Manager
Pre-installed centralised platform that streamlines corporate communication and device management.
07
Teams Rooms and Front Row
The manufacturer positions the display for Microsoft Teams Rooms and Front Row Mode.
08
Expansion and ports
OPS slot, RS-232, S/PDIF, RJ45 in and out, DisplayPort, and five USB Type-A ports.

Specifications

General
Key Features5K UltraWide 21:9, Android 13 octa-core, USB-C 100 W power delivery, AirSync and vCast sharing, daisy chaining, ViewSonic Manager, WiFi module slot, OPS slot
ModelCDE105UW
TypeDigital Signage Display
Display
Aspect Ratio21:9
BacklightDLED
Bezel Size18 mm on all sides
Brightness500 nits (typical)
Color Depth8-bit + 2-bit FRC (1.07 billion colours)
Contrast Ratio5,000:1 (typical)
OrientationLandscape and portrait
Panel TechnologyVA
Resolution5120 x 2160 (5K UltraWide)
Response TimeUnder 14 ms
Screen Size105 inch
Viewing Angle178° horizontal / 178° vertical (typical)
Performance
Operating SystemAndroid 13
ProcessorOcta-core (4 × Cortex-A76 + 4 × Cortex-A55)
RAM8 GB
Storage128 GB (eMMC)
Connectivity
ConnectivityAirSync and vCast wireless sharing
Input Voltage100–240 V AC ±10% (wide range)
OPS Slot80-pin OPS slot × 1
PortsDisplayPort × 1, RS-232 × 1, S/PDIF × 1, RJ45 × 2 (1 in, 1 out), USB Type-A × 5, USB Type-C × 1 (100 W PD, DisplayPort 1.2)
Wi-FiWiFi module slot × 1
Power
Power Consumption405 W (with Energy Star)
Physical
Dimensions2489.9 x 1081.4 x 77 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount1000 x 600 mm
Weight53.05 kg
