Tripp Lite SRWF10UMOD Low Profile Vertical Mount Switch 5U Structured Wiring SmartRack
- SKU: SRWF10UMOD
Actual Stock Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW Rugged 5U Enclosure for Regular Rack and Non-Rack Network EquipmentThis heavy-duty steel enclosure is perfect for securing and housing both standard rack equipment and other non-rack-mountable devices. Ideal for wiring closets, retail locations, classrooms, back offices, and other areas with limited floor... See More
PRODUCT OVERVIEW
Rugged 5U Enclosure for Regular Rack and Non-Rack Network Equipment
This heavy-duty steel enclosure is perfect for securing and housing both standard rack equipment and other non-rack-mountable devices. Ideal for wiring closets, retail locations, classrooms, back offices, and other areas with limited floor space, it keeps audio/video, voice, and data infrastructure secure, organized, and out of the way. Featuring a durable black powder-coated finish, this vertical equipment rack supports a maximum load capacity of 150 lbs (68 kgs).
Connect Modem, Router, and Non-Rack Equipment Inside the Enclosure

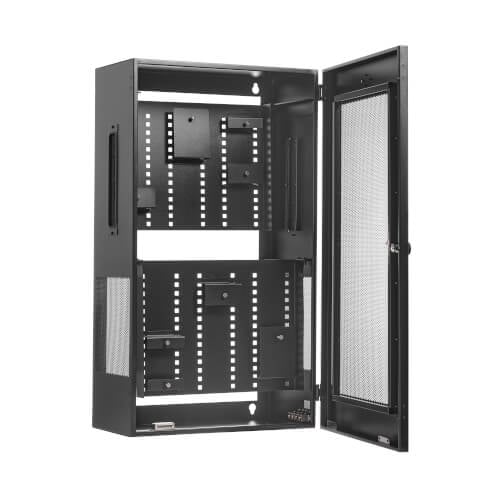

The enclosure includes two pre-installed, removable 1U shelves with adjustable metal brackets that fit into the cabinet's square mounting holes. Easily place your modem, router, firewall, switch, power block, or other non-rack equipment on the brackets and secure them with the included thumbscrews. The rack also features four built-in RJ45 jacks for seamless network connectivity.
Low-Profile Design for Switches, Panels, and Standard Rack Equipment

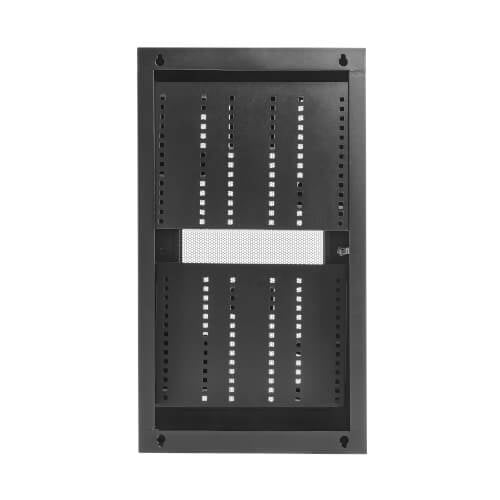

The enclosure’s low-profile design accommodates switches, panels, and other standard rack equipment. By removing the two shelves, you create two 5U spaces for a total of 10U of rack-mountable equipment. Extending less than seven inches from the wall, this enclosure supports equipment up to 16.5 inches deep, including network switches and patch panels.
Secure and Accessible Equipment Storage

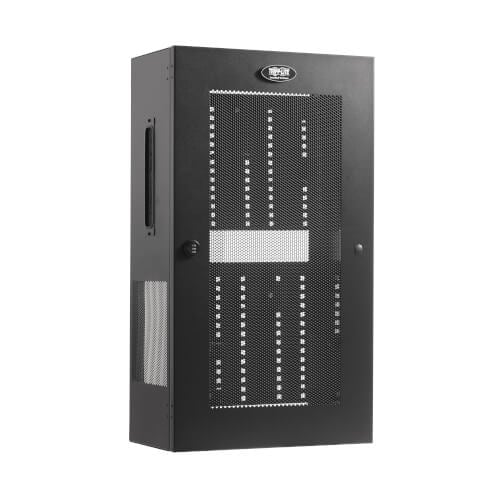

The reversible front door features a built-in combination lock, ensuring protection against damage, tampering, and theft. The vented cabinet promotes optimal airflow to keep equipment cool, while brush-strip cable plates on both sides facilitate easy cable routing and prevent dust ingress.
Compliance with Payment Card Industry Standards
The SRWF10UMOD ensures physical security for equipment and media, meeting PCI DSS (Payment Card Industry Data Security Standard) requirements. This is crucial for businesses that process, store, or transmit credit card information, ensuring compliance and safeguarding sensitive data.
Package Includes
• SRWF10UMOD 5U Structured Wiring Enclosure
• (2) Pre-installed 1U shelves
• Adjustable equipment brackets
• Combination lock instructions
No datasheet available.
