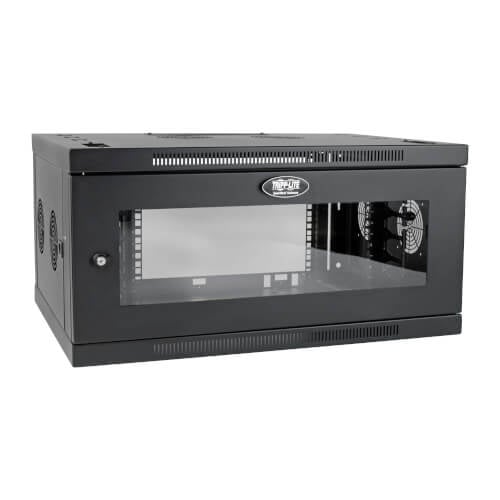

Tripp Lite SRW6UDPGVRT - 6U Low-Profile Wide with Acrylic Window SmartRack

PRODUCT OVERVIEW

Compact 6U Wall-Mount Enclosure for 19" Rack Equipment Up to 20.5" Deep
The SmartRack® 6U cabinet is engineered to accommodate 19-inch rack-mount equipment, including network switches and patch panels. Ideal for network wiring closets, retail spaces, classrooms, and back offices, this enclosure optimizes limited floor space by keeping your equipment secure and organized. Made from robust steel with a durable black powder coat, the cabinet supports a maximum load of 200 pounds (90.7 kg).

Secure Locking for Easy and Safe Equipment Access

The SmartRack® 6U cabinet features lockable front doors and side panels to protect against damage, tampering, and theft. The reversible front door can be adjusted to open left or right by rotating the cabinet 180 degrees before installation. Additionally, convenient top and bottom access ports facilitate straightforward cable routing through the enclosure.

Optimal Airflow for Cooling Equipment
The SmartRack® 6U cabinet features round ports on the top, bottom, and sides, designed for optional ventilation fans (like the SRFANWM, sold separately) to enhance airflow. These ventilation options help keep your equipment cool and operating efficiently.

Extra-Wide Design for Enhanced Cable Access and Improved Airflow
The SRW6UDPGVRT is designed with an additional three inches of width compared to standard wall-mount racks. This extra space, combined with dual vertical cable managers featuring pre-installed finger ducts at the front and two cable pass-through ports on top, facilitates efficient cable management. The increased width simplifies cable access from the front and enhances airflow by reducing rear cable clutter that can block vents. Top cutouts are also available for securing cable bundles.

Durable Clear Acrylic Front Window for Easy Equipment Monitoring
The front door of the SRW6UDPGVRT is equipped with a shatter-resistant clear acrylic window, allowing you to view equipment readouts without needing to open the enclosure. This window not only deters tampering and minimizes acoustic noise but also enhances the visual appeal of your IT setup.

Compliant with Payment Card Industry Standards
The SRW6UDPGVRT ensures physical security for equipment and media, meeting the stringent requirements for PCI DSS (Payment Card Industry Data Security Standard) compliance.

Package Includes

• SRW6UDPGVRT SmartRack 6U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
• (22) M6 screws
• (22) M6 cage nuts
• (22) M6 cup washers
• (22) 12-24 screws
• Removable mounting plate
• Vertical cable management fingers
• (3) Mounting plate screws
• (2) Keys
• Owner’s manual
