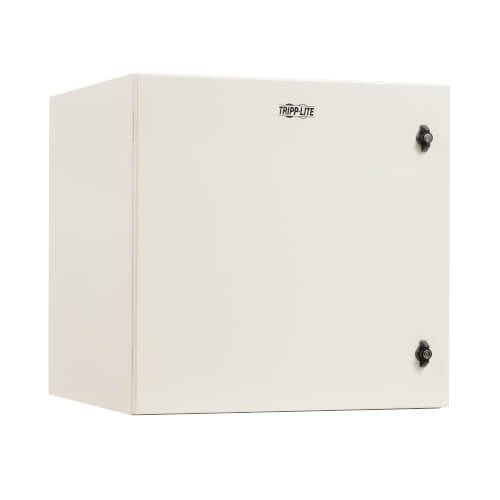

Tripp Lite SRN4G12U Industrial Enclosure with Lock 12U NEMA 4 Wall Mount, 23" Depth SmartRack
- SKU: SRN4G12U
Actual Stock Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW Compact Wall-Mount Enclosure for 19" Rack Equipment Up to 23" DeepThe SmartRack® SRN4G12U industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, including UPS systems, battery packs, and cabling. Built from heavy-duty steel with a durable gray powder-coated finish, this... See More
PRODUCT OVERVIEW
Compact Wall-Mount Enclosure for 19" Rack Equipment Up to 23" Deep
The SmartRack® SRN4G12U industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, including UPS systems, battery packs, and cabling. Built from heavy-duty steel with a durable gray powder-coated finish, this enclosure supports a maximum load capacity of 200 pounds (90.7 kg). Suitable for both indoor and outdoor applications, it ensures secure and organized equipment housing.
NEMA 4 Enclosure for Superior Protection in Harsh Conditions
The SRN4G12U enclosure safeguards its contents against water ingress (rain, sleet, snow, splashing water, and hose-directed water), solid contaminants (falling dirt, windblown dust), and ice formation on its exterior. Perfect for industrial sites such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, and warehouses, it ensures your sensitive equipment remains secure, organized, and protected in demanding environments.
Secure Locking Mechanism Prevents Theft, Damage, and Tampering
The SRN4G12U features a fully welded steel housing that locks securely with included keys, protecting against theft, tampering, dust, and contaminants. The weather-sealed door swings open on a sturdy hinge for easy access to equipment and cabling during installation and maintenance. Additionally, data and power cables can be routed through a bottom conduit cutout for efficient setup.
Effortless Enclosure and Equipment Installation
The 12U SRN4G12U industrial enclosure arrives fully assembled and ready for wall mounting with user-supplied hardware. Independently adjustable front and rear mounting rails accommodate equipment up to 23 inches deep. All necessary hardware for mounting equipment inside the enclosure is included, ensuring a smooth and easy installation process.
Package Includes
• SRN4G12U Industrial Enclosure
• (48) 10-32 screws
• (20) M6 washers
• (4) LDPE sheet metal plugs
• (4) M10 foam washers
• (2) Keys
• Owner's manual
No datasheet available.
