Tripp Lite 4-Post Rack-Mount Installation Kit for Select Rack-Mount UPS Systems, Side Mount
- SKU: 4POSTRAILSM
Actual Stock & Price Can Be Confirmed After Placing the Order.

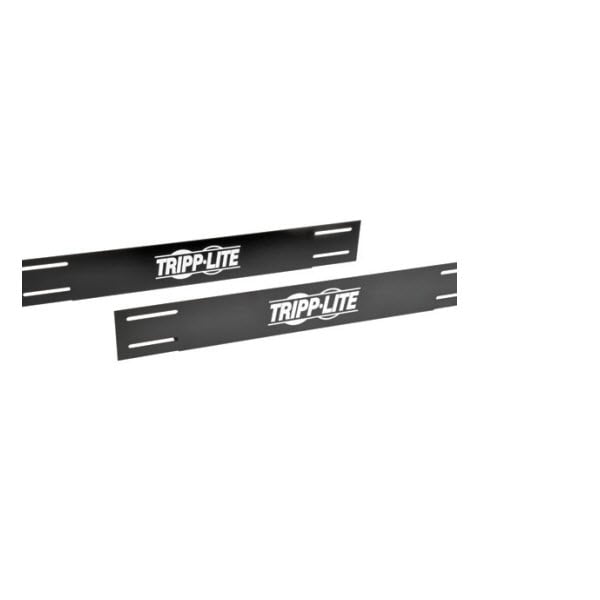

The Tripp Lite 4POSTRAILSM 4-Post Rack-Mount Installation Kit supports heavy UPS systems in your EIA-standard four-post rack. The two L brackets mount to the outside edges of the rack’s vertical mounting rails the edges facing the side panels using the rails’ square mounting... See More
The Tripp Lite 4POSTRAILSM 4-Post Rack-Mount Installation Kit supports heavy UPS systems in your EIA-standard four-post rack. The two L brackets mount to the outside edges of the rack’s vertical mounting rails the edges facing the side panels using the rails’ square mounting holes. Attaching the 4POSTRAILSM to the side leaves your front and rear mounting holes free for equipment.
The brackets support up to 250 pounds and are compatible with four-post racks with a mounting depth of 16.5 to 21.5 inches. In addition to UPS systems, the 4POSTRAILSM is compatible with other heavy networking or power protection equipment with a rectangular chassis of 17.5 inches in width. Rack-attachment hardware for square-hole mounting is included.
Tripp Lite 4-Post Rack-Mount Installation Kit Features,
- Extra Support for Heavy UPS Systems
- Installs on outside edges of rack’s vertical mounting rails
- Compatible with EIA-standard 4-post racks with mounting depths of 16.5–21.5 in.
- Leaves front and rear mounting holes free for equipment
- Supports up to 250 lb.
- Also supports other heavy networking or power protection equipment 17.5 in. wide
- Rack-attachment hardware for square-hole mounting included
No datasheet available.
