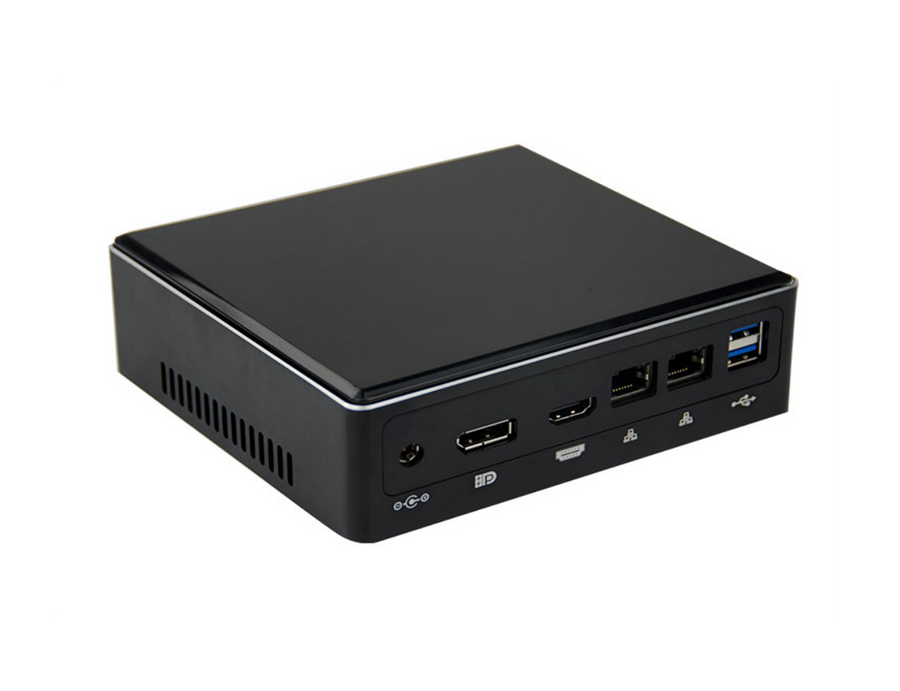

Trend Digital Signage Media Player with 10th Gen Core i7 – TC-24A-i710G

Trend Digital Signage Media Player with 10th Gen Core i7 – TC-24A-i710G

The Trend TC-24A-i710G is a 24/7 digital signage media player built around a 10th Gen Intel Core i7 processor and dual UHD graphics for 4K UHD output. It suits continuous signage, information displays and kiosks that need reliable round-the-clock operation. It has an active cooling fan, mSATA and SATA storage and VESA mounting. Procure.ae supplies the TC-24A-i710G across the UAE.

Powered by a 10th Gen Intel Core i7 processor, the TC-24A-i710G drives dual UHD graphics through HDMI and DisplayPort outputs at 3840 x 2160 (4K UHD). Memory is configurable from 2 GB to 32 GB, and storage supports mSATA drives from 64 GB to 512 GB plus SATA drives from 500 GB to 2 TB. An active cooling fan keeps the unit stable during continuous operation. The integrated LAN runs at 10/100/1000 Mbps, with Wi-Fi and Bluetooth available as options. Call boot and network start are supported.

The media player fits digital signage walls, menu boards and information displays where content runs around the clock. Its VESA support allows it to be mounted behind a display. It ships with a Windows 10 Pro trial, and licensed Windows or Linux can be specified as options. Four USB 3.0 and four USB 2.0 ports, plus two RJ45 connectors and a USB-C port, handle peripherals and network connections. Compared with the TC-24A-i510G, this model uses a 10th Gen Core i7 instead of an i5; the other specifications are the same.

Resolution
3840 x 2160 (4K UHD)
Type
Digital Signage Media Player

Key features

01
Processor
10th Gen Intel Core i7 for demanding multitasking and content playback.
02
4K UHD output
Dual UHD graphics at 3840 x 2160 over HDMI and DisplayPort.
03
Active cooling
Integrated cooling fan for stable operation during 24/7 use.
04
Memory and storage
2 GB to 32 GB RAM, with mSATA 64 GB to 512 GB and SATA 500 GB to 2 TB.
05
Network
Integrated 10/100/1000 Mbps LAN, with optional Wi-Fi and Bluetooth.
06
Boot options
Call boot and network start support.
07
VESA mounting
VESA support for fitting behind a display.
08
Connectivity
Two RJ45, four USB 3.0, four USB 2.0 and one USB-C port.

Specifications

General
ApplicationIndustrial, 24/7 use
Key Features24/7 operation, Active cooling fan, Dual UHD graphics, Call boot and network start, VESA mounting, Optional Wi-Fi and Bluetooth
ModelTC-24A-i710G
TypeDigital Signage Media Player
Display
Resolution3840 x 2160 (4K UHD)
Performance
GraphicsDual UHD graphics (HDMI and DisplayPort)
Operating SystemWindows 10 Pro Trial (licensed Windows or Linux optional)
Processor10th Gen Intel Core i7
RAM2 GB to 32 GB
StoragemSATA 64 GB to 512 GB, SATA 500 GB to 2 TB
Audio
AudioIntegrated audio
Connectivity
BluetoothOptional
Ethernet10/100/1000 Mbps auto-adaptive
PortsDC in × 1, HDMI × 1, DisplayPort × 1, RJ45 × 2, USB 3.0 × 4, USB 2.0 × 4, USB-C × 1
Wi-FiOptional
Power
Power Consumption60 W
Physical
Dimensions135 x 150 x 50 mm
MaterialAluminium alloy and plastic
VESA MountSupported
Compliance
Warranty2 years
