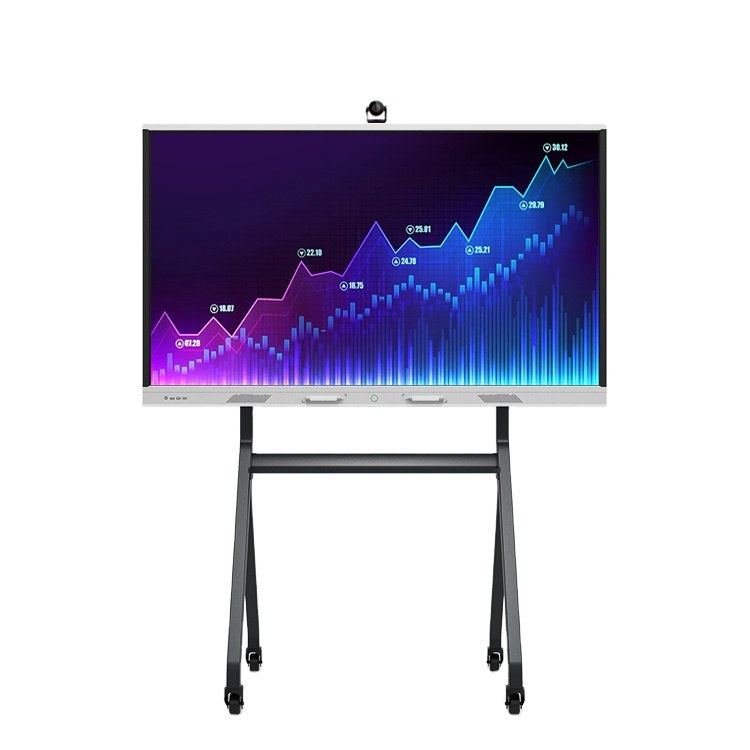

Trend 86-inch Dual-OS Interactive Flat Panel, Intel i7 – TD-86ID20U-Di7
The Trend TD-86ID20U-Di7 is an 86-inch interactive flat panel with 20 infrared touch points, 4K UHD resolution and dual operating systems, Android and Windows. Its Intel i7 Windows PC is built in, which suits boardrooms, public-facing venues and presentation spaces that need one display for interactive content. Procure.ae supplies the TD-86ID20U-Di7 across the UAE.
The panel shows 3840 x 2160 (4K UHD) resolution at 60 Hz on a 16:9 IPS screen with 450 nits brightness and 2,000:1 contrast, viewed at 178° horizontally and vertically. The infrared touch frame supports 20 touch points, with 2 mm accuracy across more than 90% of the touch area and an 8 ms response time. Two 5 W speakers are built in. The manufacturer lists the 4 mm toughened glass front as level 7 earthquake resistant and a maximum service time of 24 hours a day.
The TD-86ID20U-Di7 suits boardrooms, government offices, banks, telecom business halls and shopping centres. The panel runs Android 6.0 or Windows 7, 8 or 10. The Windows side uses an Intel i7 processor with 4 GB RAM and a 120 GB SSD in the base configuration, Ports include three HDMI inputs, VGA, AV in and out, USB touch and two RJ45 Ethernet sockets. It mounts on a wall, on a movable base or as a fixed floor stand. The Di3 and Di5 models use Intel i3 and i5 processors.
Key features
Specifications
| Key Features | Dual OS (Android and Windows), 20-point infrared touch, 4K UHD, 2,000:1 contrast, Intel i7 PC, built-in speakers, remote control, 24-hour operation |
| Model | TD-86ID20U-Di7 |
| Type | Interactive Flat Panel |
| What's in the Box | Remote control, base/bracket, WiFi, power cord, user manual, warranty card |
| Aspect Ratio | 16:9 |
| Backlight | WLED |
| Brightness | 450 nits |
| Contrast Ratio | 2,000:1 |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Accuracy | 2 mm across more than 90% of the touch area |
| Touch Points | 20-point multi-touch |
| Touch Technology | Infrared |
| Viewing Angle | 178° horizontal / 178° vertical |
| Operating System | Dual OS: Android 6.0 and Windows 7 / 8 / 10 |
| Processor | Intel i7 (Windows); quad-core Cortex-A53 1.5 GHz (Android) |
| RAM | 4 GB (Windows); 1.5 GB (Android) |
| Storage | 120 GB SSD (Windows); 32 GB (Android) |
| Storage Conditions | -20 to 60 °C; 10% to 90% RH (no condensation) |
| Speaker Output | 2 x 5 W (built-in) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In x 3, VGA In x 1, AV In x 1, AV Out x 1, USB 2.0 x 1 (multimedia), USB touch (Type-B) x 1, RJ45 Ethernet x 2, Earphone x 1 |
| Standby Power | 385 W |
| Color | Black |
| Dimensions | 1960.6 x 1161.8 x 96.8 mm |
| Duty Cycle | 24 hours a day |
| Mounting | On wall, movable or fixed floor standing |
| Operating Humidity | 20% to 80% RH (no condensation) |
| Operating Temperature | 0 to 50 °C |
| Shipping Weight | 72 kg |
| Weight | 67 kg |
| Warranty | 1 year |
