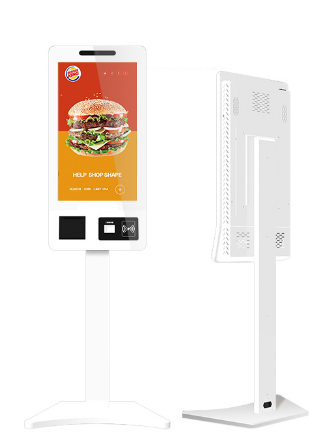

Trend 24-inch Self-Service Payment Kiosk – TP-245SSK
The Trend TP-245SSK is a 24-inch, Full HD self-service payment kiosk with 10-point capacitive touch and Windows 7, 8 or 10. It is built for ordering and payment in restaurants and canteens, and it mounts on a wall or a vertical base. Procure.ae supplies the TP-245SSK in the UAE.
The kiosk has a 1920 x 1080 (Full HD) display with 350 nits brightness, 1200:1 contrast and an 8 ms response time at 60 Hz. Its capacitive touch frame accepts 10 points and is accurate to ±2 mm across more than 90% of the touch area. Processor options are Intel Core i3, i5 or i7, with 4 GB or 8 GB DDR3 memory and 120 GB or 240 GB SSD storage, plus a 500 GB HDD option. The unit weighs 20.66 kg net, and its 4 mm tempered glass front has an anti-glare treatment and Mohs 7 surface hardness.
The screen supports horizontal and vertical display modes. Mounting options are wall-mounted or on a vertical base. Ports include HDMI, VGA, USB 2.0, RJ45, LVDS and headphone audio, and the manufacturer lists wired network access with optional WiFi, 3G and 4G. Power is 80 W at 100–240 V AC, with 1 W standby. Procure.ae can advise on the right configuration for your ordering setup before you request a quote.
Key features
Specifications
| Application | Self-service ordering and payment |
| Key Features | Self-service payment, 10-point capacitive touch, Full HD, Windows 7/8/10, horizontal and vertical display, wall or base mount, anti-glare glass |
| Model | TP-245SSK |
| Type | Self-Service Payment Kiosk |
| Aspect Ratio | 16:9 |
| Brightness | 350 nits |
| Color Gamut | 60% NTSC (CIE 1931) |
| Contrast Ratio | 1200:1 |
| Orientation | Horizontal and vertical |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 8 ms |
| Screen Size | 24 inch |
| Touch Accuracy | ±2 mm (over 90% of touch area) |
| Touch Points | 10-point multi-touch |
| Touch Technology | PCAP |
| Viewing Angle | 89° in each direction (minimum, CR ≥ 10) |
| Graphics | Intel HD Graphics 3000 |
| Operating System | Windows 7 / 8 / 10 |
| Processor | Intel Core i3, i5 or i7 (options) |
| RAM | 4 GB or 8 GB DDR3 (optional) |
| Storage | 120 GB or 240 GB SSD (optional 500 GB HDD) |
| Storage Conditions | -20 to 60 °C; 10% to 90% RH (non-condensing) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI x 1, VGA x 1, USB 2.0 x 1, RJ45 x 1, LVDS x 1, headphone audio |
| Wi-Fi | Optional (wired, WiFi, 3G and 4G network access) |
| Power Consumption | 80 W |
| Standby Power | 1 W |
| Color | White |
| Material | Aluminium alloy and sheet metal chassis |
| Mounting | Wall-mounted or vertical base |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 50 °C |
| Shipping Weight | 23.12 kg (gross) |
| Surface Protection | 4 mm tempered glass, anti-glare, Mohs 7 hardness |
| Weight | 20.66 kg (net) |
| Warranty | 1 year |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
