Tascam AE-4D AES/EBU Input/Output Dante Converter with Built-In DSP Mixer
- SKU: AE-4D
Actual Stock & Price Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW The AE-4D AES/EBU Input/Output Dante Converter with Built-In DSP Mixer from Tascam can be used to convert 4-channel AES/EBU input signals into 4-channel Dante output signals, or the other way around for pro-audio applications. The AE-4D AES/EBU Input/Output Dante Converter features Level control and is compatible... See More
PRODUCT OVERVIEW
The AE-4D AES/EBU Input/Output Dante Converter with Built-In DSP Mixer from Tascam can be used to convert 4-channel AES/EBU input signals into 4-channel Dante output signals, or the other way around for pro-audio applications.
The AE-4D AES/EBU Input/Output Dante Converter features Level control and is compatible with a Dante Domain Manager software, which offers security functions, enables the use of wide-area networks, and easy access to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible. Two installation brackets are included.

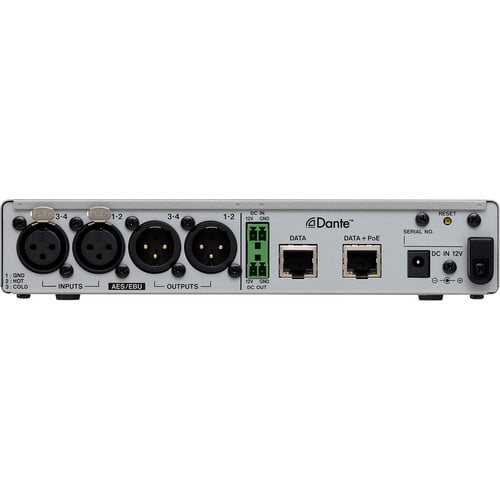

- 4 x AES/EBU inputs/outputs
- 4 x Dante inputs/outputs
- Supports PoE (Power over Ethernet)
- Up to 24-bit/96 kHz sample rate
- Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 mode
- Flexible scene preset function allows to work in different area situations (up to 50 presets)
- Two types of user-control software available for Windows/Mac/iOS/Android devices:
- For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
- For end-users: simple app design for only the necessary functions such as area-volume settings, etc.
- Remote control via Dante
- Half-rack mountable size

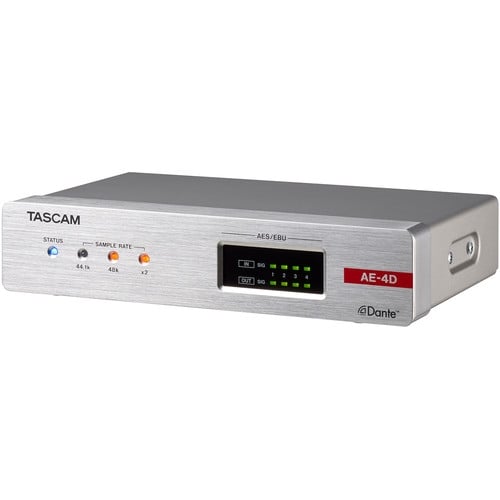

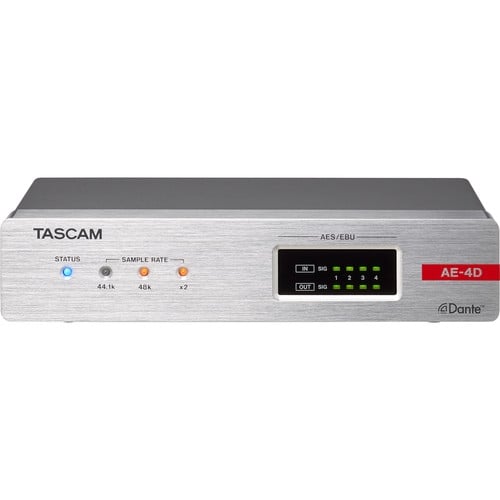

- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor digital input/output signals
- Configurable reference level (via remote control only)
- Surface-mount adapters for installation under desks included
No datasheet available.
