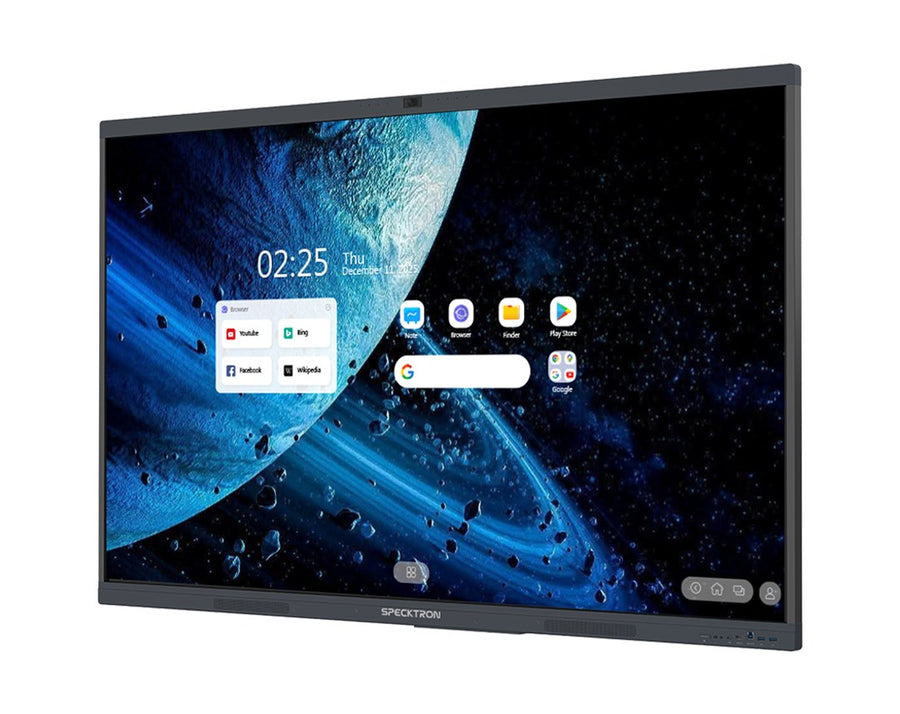

The Specktron UDX-S2 Pro 86-inch (DSUDX86S2KPN) is a 4K UHD interactive flat panel for classrooms and corporate workspaces. It has 400 nits of brightness, 50-point infrared touch and a 50MP AI camera with auto-framing, running Android 14. Procure.ae supplies the DSUDX86S2KPN across the UAE.
The UDX-S2 Pro 86-inch delivers 4K UHD resolution (3840 x 2160) with 400 nits of brightness and a 178° / 178° viewing angle. Its infrared touch layer supports 50-point multi-touch with adaptive technology, and the 9H toughened glass has an anti-fingerprint finish. An octa-core processor, 16 GB RAM and 256 GB storage run Android 14 with Google EDLA certification. A 50MP AI camera provides auto-tracking and auto-framing, and a built-in 8-array microphone and 2 × 20 W speakers complete the audio hardware.
The UDX-S2 Pro 86-inch suits classrooms, boardrooms and collaboration spaces. Wireless screen sharing with touchback, a wireless dongle and BYOM support let presenters connect without cables, and over-the-air updates keep the software current. Connections include three HDMI inputs, one HDMI output, a DisplayPort input, a VGA input, a 65W USB-C port and two LAN ports. Optional Windows i5 or i7 configurations are also available.
| Key Features | Android 14 (Google EDLA certified), 4K UHD, 400 nits, 50-point IR touch, 16 GB RAM, 256 GB storage, 50 MP AI camera, 8-array microphone |
| Model | DSUDX86S2KPN |
| Type | Interactive Flat Panel |
| Brightness | 400 nits |
| Camera | 50 MP AI camera with auto-tracking and auto-framing |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touch Points | 50-point multi-touch |
| Touch Technology | Infrared |
| Viewing Angle | 178° / 178° |
| Operating System | Android 14 (Google EDLA certified); Windows optional |
| Processor | Octa-core |
| RAM | 16 GB |
| Storage | 256 GB |
| DisplayPort | 1 × DP In |
| Microphone | Built-in 8-array microphone |
| Speaker Output | 2 × 20 W |
| Connectivity | BYOM support, wireless screen sharing with touchback, wireless dongle |
| Ethernet | 2 × LAN (In/Out) |
| HDMI Inputs | 3 |
| HDMI Outputs | 1 |
| Ports | HDMI In × 3, HDMI Out × 1, DisplayPort In × 1, VGA × 1, USB-C × 1 (65W), USB 3.0 × 4, USB 2.0 × 1, USB-B Touch × 2, LAN × 2, Audio In/Out, SPDIF, RS232, TF card |
| SD Card Slot | TF card |
| Serial Port | RS232 |
| Touch USB Ports | USB-B × 2 |
| USB Ports | USB 3.0 × 4, USB 2.0 × 1 |
| USB-C Ports | 1 × USB-C (65W) |
| VGA Input | 1 × VGA |
| Surface Protection | 9H toughened anti-fingerprint glass |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
