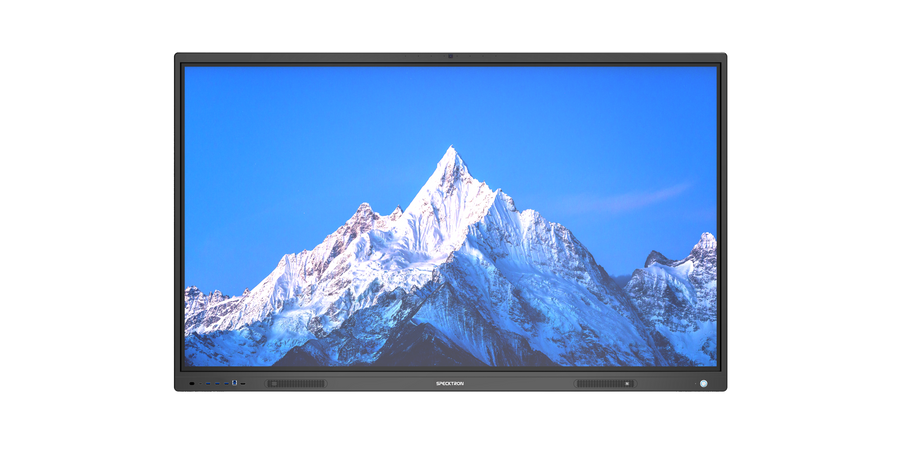

Specktron CDX 86” Pro UHD Interactive Touch Panel – Model CDX-86i Pro
The Specktron CDX 86” Pro UHD Interactive Touch Panel – Model CDX-86i Pro is a interactive flat panel available in the UAE from Procure.ae.
Transform your workspace or classroom with the Specktron CDX 86” Pro UHD Interactive Touch Panel , model CDX-86i Pro . This advanced interactive display delivers a stunning 4K UHD resolution on an expansive 86-inch screen, making presentations and lessons engaging and visually impressive. Designed for collaborative environments , the CDX-86i Pro features precise multi-touch technology that supports simultaneous users, enabling seamless teamwork. Whether you’re facilitating meetings, teaching, or brainstorming, the Specktron interactive panel offers ultra-responsive touch, robust connectivity,.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key features
Specifications
| Backlight | Direct LED |
| Brightness | 400 nits |
| Camera | 13 MP |
| Color Depth | 10-bit (1.07 billion colours) |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touch Accuracy | ±1 mm |
| Touch Points | 20-point multi-touch |
| Touch Resolution | 32768 x 32768 |
| Touch Response Time | < 5 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° (H) / 178° (V) |
| Graphics | ARM MALI "Odin" MP4 |
| Operating System | Android 12 |
| Processor | ARM 4x Cortex-A76 + 4x Cortex-A55 |
| RAM | 8 GB |
| Storage | 128 GB |
| Audio In | Mic in × 1 |
| Audio Out | Line out × 1 |
| Microphone | 8-mic array, 12 m pickup range |
| Pickup Range | 12 m |
| Speaker Output | 2 × 20 W |
| Speaker Type | Built-in |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | RJ45 (Gigabit) × 1 |
| HDMI Inputs | HDMI In × 4 |
| HDMI Outputs | HDMI Out × 1 |
| OPS Slot | Optional |
| SD Card Slot | SD card slot × 1 |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | Touch USB × 2 |
| USB Ports | USB 2.0 × 4, USB 3.0 × 3 |
| USB-C Ports | USB-C × 2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Power Consumption | 350 W |
| Standby Power | 0.5 W |
| Dimensions | 1966 x 1181 x 89 mm |
| Operating Humidity | 10% to 80% RH |
| Operating Temperature | 0°C to 40°C |
| Shipping Dimensions | 2161 x 230 x 1337 mm |
| Surface Protection | Tempered glass with Mohs level 9 |
| VESA Mount | 800 x 400 mm |
| Weight | 67 kg |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
