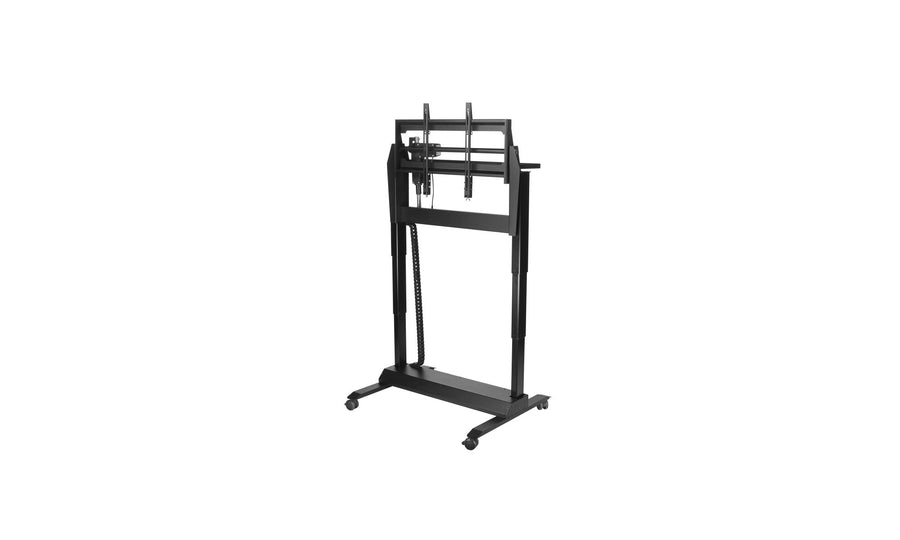

Sony Electric Display Lift for Touch Screens – PT-LIFTHL-4075

Sony Electric Display Lift for Touch Screens – PT-LIFTHL-4075

The Sony PT-LIFTHL-4075 is an electric height-adjustable lift for touch displays, with 650 mm of travel and a 137 kg maximum load. It suits classrooms and meeting rooms where a touch screen needs to change height or move between rooms. Procure.ae supplies the Sony PT-LIFTHL-4075 across the UAE, with quotes, delivery and installation.

The lift raises and lowers a touch display electrically over 650 mm of travel at 38 mm/s (1.5 inch/s). It carries up to 137 kg (302 lbs) and supports VESA patterns from 100 to 600 mm, or 800 mm with the optional bracket. Two casters with brakes allow the unit to be moved and then locked in place, and anti-collision technology is included. The manufacturer lists the unit as wheelchair accessible, with a black powder-coat finish and a standard exchangeable mains cable.

Classrooms, meeting rooms, training rooms and shared reception areas can use the lift where a touch display needs flexible height. The unit is manufactured in the Netherlands and has a Dutch design. The specifications list a PC holder, brackets and a black finish, and options include a remote control, a VESA 800 x 400 mm bracket and other colours. The manufacturer lists a 1-year warranty, and Procure.ae can advise on installation across the UAE.

Speed
38 mm/s (1.5 inch/s)
Type
Electric Display Lift
Weight
38 kg

Key features

01
Electric height
Electric height adjustment with 650 mm (25.6-inch) travel.
02
Load capacity
Maximum weight load of 137 kg (302 lbs).
03
Mounting range
VESA 100 to 600 mm, or 800 mm with the optional bracket.
04
Mobility
Two casters with brakes and a wheelchair accessible design.
05
Safety
Anti-collision technology included.
06
Build
Dutch design, made in the Netherlands, with a powder-coated black finish.

Specifications

General
CompatibilityTouch displays, VESA 100 to 600 mm (800 mm with optional bracket)
Key FeaturesElectric height adjustment, 650 mm travel, 137 kg maximum load, anti-collision technology, two casters with brakes, PC holder, wheelchair accessible, Dutch design
ModelPT-LIFTHL-4075
TypeElectric Display Lift
Display
Supported Screen Sizes40 to 80 inch
Performance
Speed38 mm/s (1.5 inch/s)
Power
Power SourceMains, exchangeable standard cable
Physical
AdjustabilityElectric height, 650 mm travel
ColorBlack (other colours optional)
FinishPowder coat
Load Capacity137 kg (302 lbs)
Shipping Dimensions920 x 975 x 395 mm
Shipping Weight65 kg
TiltNone
VESA Mount100 to 600 mm (800 mm with optional bracket)
Weight38 kg
Compliance
Country of OriginThe Netherlands
Warranty1 year
