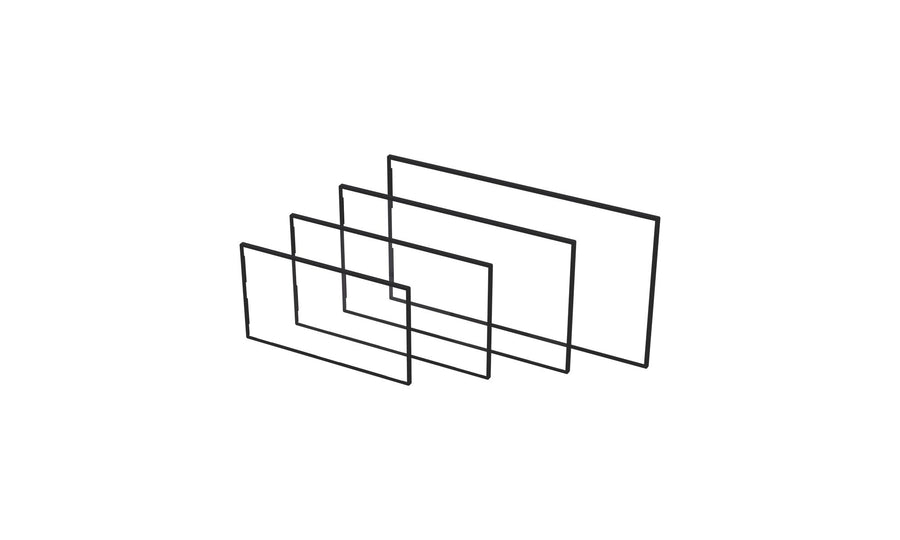

Sony 55 to 85-inch Multi-Touch Overlay Kit – STP-IR100 Series

The Sony Multi-Touch Overlay Kit (STP-IR100 Series) is an infrared touch overlay for 55-, 65-, 75- and 85-inch BRAVIA 4K Professional Displays in meeting rooms and classrooms. It supports up to 10 touch points with ±2 mm accuracy over USB 2.0. The kit is discontinued; Procure.ae can confirm current availability and recommend an alternative in the UAE.

The STP-IR100 kit adds infrared touch to 55-, 65-, 75- and 85-inch BRAVIA 4K Professional Displays. It recognises up to 10 touch points from fingers, pens and opaque objects. Touch accuracy is ±2 mm over more than 90% of the area, and response time is under 15 ms. The overlay connects over a USB 2.0 interface and lists support for Windows 7 to 10, Mac OS X 10.6 or later, Android 4.0 or later, Linux 3.5 or later and Chrome. The manufacturer rates operating temperature at 0 to 40 °C.

The kit suits meeting rooms, classrooms and training rooms that use a BRAVIA 4K Professional Display and need touch without replacing the screen. It ships with install accessories and a user manual. Overlay dimensions vary by size, from 1252.8 x 723.4 x 31 mm for the 55-inch to 1927.2 x 1108.2 x 28.5 mm for the 85-inch. Because the kit is discontinued, confirm availability and fit with Procure.ae before planning a project.
