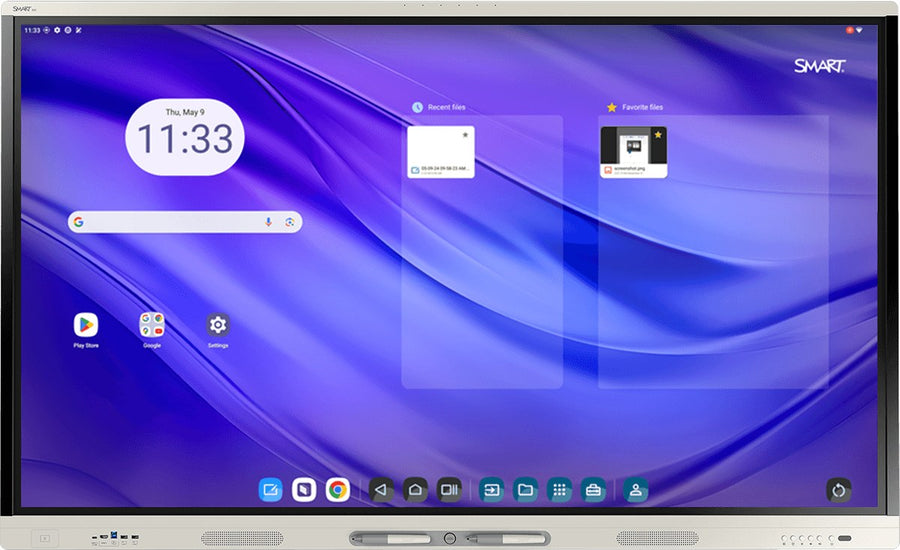

SMART Board MX (V5) Pro TAA 86-inch Interactive Flat Panel – MX586-V5-PW
The SMART Board MX (V5) Pro TAA 86-inch is an interactive flat panel for large lecture halls and boardrooms. It offers a 3840 x 2160 (4K UHD) display, up to 50 touch points and Android 15 with 8 GB of memory. Procure.ae supplies the MX586-V5-PW in the UAE.
The MX586-V5-PW has a 86-inch 4K UHD display at 3840 x 2160 resolution, with a 16:9 aspect ratio, a 60 Hz refresh rate, 400 nits of brightness and a 178° viewing angle. Its HyPr Touch with Advanced IR technology supports up to 50 touch points depending on the operating system, with 1 mm accuracy and a touch response time of 5 ms or less. The built-in Android 15 system has an octa-core CPU, 8 GB DDR4 memory and 64 GB of storage, and the manufacturer states that it supports an automatic update to Android 17.
The 86-inch panel suits large lecture halls, boardrooms and training rooms. Two 20 W speakers and a six-microphone array are integrated, and the unit includes Wi-Fi 6E, Bluetooth 5.2 and two RJ45 LAN ports. A rear OPS slot takes SMART PCM modules. The 86-inch model draws 149 W typical and 0.2 W on standby, weighs 68 kg and uses an 800 x 600 mm VESA pattern, so confirm the wall structure before installation.
Key features
Specifications
| Key Features | 4K UHD display, 50-point infrared touch, Android 15, Automatic update to Android 17, Six-microphone array, NFC reader/writer, Rear OPS slot, Wi-Fi 6E |
| Model | MX586-V5-PW |
| Type | Interactive Flat Panel |
| What's in the Box | 2 pens, remote control, 5 m USB 2.0 A-to-B cable, Wi-Fi and Bluetooth antennas, room license, 10 personal licenses |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | ≤ 8 ms |
| Screen Size | 86 inch |
| Touch Accuracy | 1 mm |
| Touch Points | 50-point multi-touch (OS dependent) |
| Touch Response Time | ≤ 5 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| Memory Type | DDR4 |
| Operating System | Android 15 |
| Processor | Octa-core CPU |
| RAM | 8 GB |
| Storage | 64 GB (up to 576 GB) |
| Audio | 2 x 20 W speakers, six-microphone array with echo cancellation |
| Bluetooth | Bluetooth 5.2 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | USB-C × 3, USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, RJ45 LAN × 2, VGA, RS-232, S/PDIF optical |
| Wi-Fi | Wi-Fi 6E (IEEE 802.11ax) |
| Power Consumption | 149 W (typical) |
| Standby Power | 0.2 W |
| Color | White |
| Dimensions | 1962 x 1199 x 89 mm |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 2165 x 1445 x 160 mm |
| Shipping Weight | 94 kg |
| VESA Mount | 800 x 600 mm |
| Weight | 68 kg |
| Certifications | CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, EPEAT |
| Country of Origin | Mexico |
