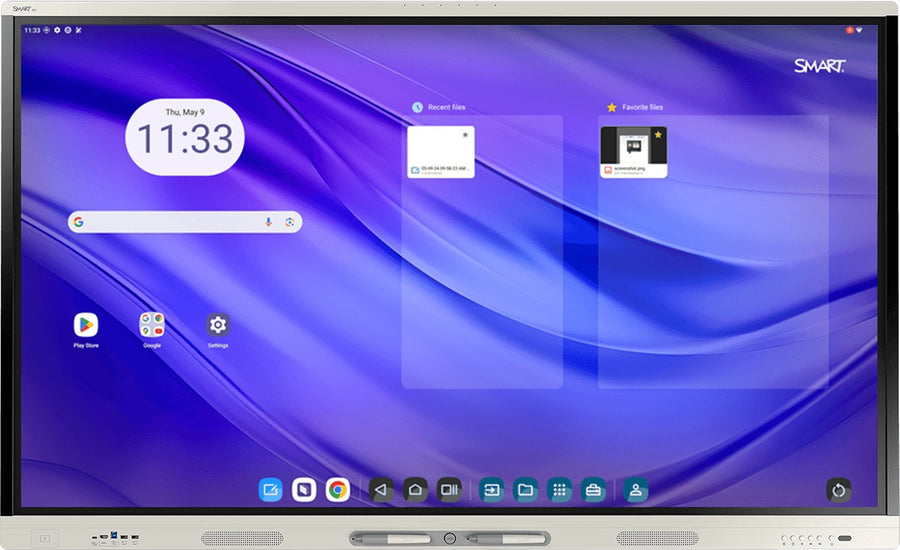

SMART Board MX (V5) Pro TAA 65-inch Interactive Flat Panel – MX565-V5-PW
The SMART Board MX (V5) Pro TAA 65-inch is an interactive flat panel for classrooms and meeting rooms. It has a 3840 x 2160 (4K UHD) display, up to 50 touch points and Android 15 with 8 GB of memory. Procure.ae supplies the MX565-V5-PW in the UAE.
The MX565-V5-PW has a 65-inch 4K UHD display at 3840 x 2160 resolution, with a 16:9 aspect ratio, a 60 Hz refresh rate, 400 nits of brightness and a 178° viewing angle. Its HyPr Touch with Advanced IR technology supports up to 50 touch points depending on the operating system, with 1 mm accuracy and a touch response time of 5 ms or less. The built-in Android 15 system has an octa-core CPU, 8 GB DDR4 memory and 64 GB of storage, and the manufacturer states that it supports an automatic update to Android 17.
The panel suits collaborative classrooms and meeting rooms where teams annotate content with touch. Two 20 W speakers and a six-microphone array with onboard acoustic echo cancellation are integrated, and the unit includes Wi-Fi 6E, Bluetooth 5.2 and two RJ45 LAN ports. A rear OPS slot takes SMART PCM modules for an add-on PC. The 65-inch model is mounted with a 600 x 400 mm VESA pattern and weighs 40 kg, while the 55-inch sibling in this series is rated at 300 nits.
Key features
Specifications
| Key Features | 4K UHD display, 50-point infrared touch, Android 15, Automatic update to Android 17, Six-microphone array, NFC reader/writer, Rear OPS slot, Wi-Fi 6E |
| Model | MX565-V5-PW |
| Type | Interactive Flat Panel |
| What's in the Box | 2 pens, remote control, 5 m USB 2.0 A-to-B cable, Wi-Fi and Bluetooth antennas, room license, 10 personal licenses |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | ≤ 8 ms |
| Screen Size | 65 inch |
| Touch Accuracy | 1 mm |
| Touch Points | 50-point multi-touch (OS dependent) |
| Touch Response Time | ≤ 5 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| Memory Type | DDR4 |
| Operating System | Android 15 |
| Processor | Octa-core CPU |
| RAM | 8 GB |
| Storage | 64 GB (up to 576 GB) |
| Audio | 2 x 20 W speakers, six-microphone array with echo cancellation |
| Bluetooth | Bluetooth 5.2 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | USB-C × 3, USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, RJ45 LAN × 2, VGA, RS-232, S/PDIF optical |
| Wi-Fi | Wi-Fi 6E (IEEE 802.11ax) |
| Power Consumption | 90 W (typical) |
| Color | White |
| Dimensions | 1507 x 928 x 89 mm |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 1620 x 1165 x 160 mm |
| Shipping Weight | 56 kg |
| VESA Mount | 600 x 400 mm |
| Weight | 40 kg |
| Certifications | CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, EPEAT |
| Country of Origin | Mexico |
