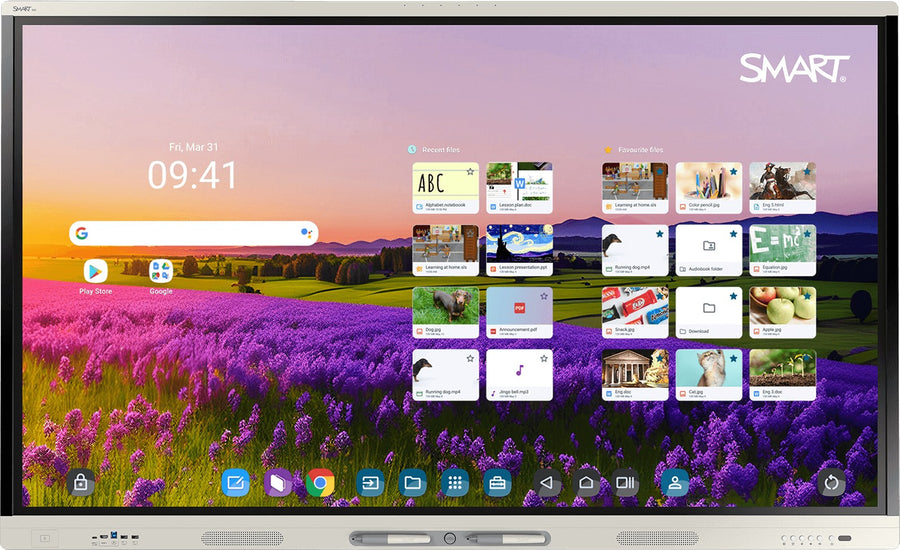

SMART Board MX (V5) 65-inch Interactive Flat Panel – MX065-V5

SMART Board MX (V5) 65-inch Interactive Flat Panel – MX065-V5

The SMART Board MX (V5) 65-inch, model MX065-V5, is a 4K UHD interactive flat panel for classrooms and meeting rooms. It supports up to 50 touch points on Windows and Mac, has 400 nits brightness and runs an embedded Android 15 OS. Procure.ae supplies the MX065-V5 across the UAE.

The MX065-V5 is a 65-inch LED display with 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio, a 60 Hz refresh rate and a 178° viewing angle. Its HyPr Touch Advanced IR system has 1 mm accuracy and a touch response time of 5 ms or less, and it supports up to 50 touch points on Windows and Mac, 32 on Android and 16 on Chrome OS. The panel includes two integrated 20 W speakers and a linear six-microphone array with onboard acoustic echo cancellation. Two pens and magnetic and frame-mounted tool holders are included.

The MX065-V5 runs iQ embedded Android 15, with automatic over-the-air updates to Android 17, and includes SMART Notebook and SMART Control. It has 8 GB memory, 64 GB storage (up to 576 GB), an octa-core processor and an OPS slot for SMART PCM modules. The panel weighs 40 kg (89 lb) and mounts on a VESA M8 600 x 400 mm pattern. Compared with the 55-inch model, this size uses 400 nits brightness and two 20 W speakers.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
40 kg

Key features

01
4K UHD display
3840 x 2160 resolution on a 65-inch 16:9 LED panel with 400 nits brightness.
02
HyPr Touch Advanced IR
Infrared touch with 1 mm accuracy and a touch response time of 5 ms or less.
03
Multi-touch input
Up to 50 touch points on Windows and Mac, 32 on Android and 16 on Chrome OS.
04
Embedded Android 15
iQ embedded OS with automatic over-the-air updates to Android 17.
05
Six-microphone array
Integrated linear microphone array with onboard acoustic echo cancellation.
06
Stereo speakers
Two integrated 20 W speakers for classroom and meeting-room audio.
07
Wi-Fi 6E and Bluetooth 5.2
IEEE 802.11ax (Wi-Fi 6E) and dual-mode Bluetooth 5.2, with two RJ45 ports for wired networking.
08
OPS slot for PC modules
One back slot supports SMART PCM modules.

Specifications

General
ApplicationEducation and classroom teaching
Key Features4K UHD (3840 x 2160), HyPr Touch Advanced IR, 50-point multi-touch on Windows and Mac, iQ embedded Android 15, six-microphone array, 2 × 20 W speakers, Wi-Fi 6E, OPS slot
ModelMX065-V5
TypeInteractive Flat Panel
What's in the Box2 pens, remote control, 5 m USB 2.0 A-to-B cable, 2 external antennas
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Touch Accuracy1 mm
Touch Points50-point multi-touch (Windows, Mac); 32 (Android)
Touch Response Time5 ms
Touch TechnologyInfrared
Viewing Angle178°
Performance
Operating SystemAndroid 15 (iQ embedded), updates to Android 17
ProcessorOcta-core
RAM8 GB
Storage64 GB (up to 576 GB)
Storage Conditions-20 to 60 °C
Audio
MicrophoneIntegrated linear six-microphone array, onboard echo cancellation
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 × 2 (1000BASE-T)
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (back), SMART PCM modules
PortsUSB-C × 3, USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB 2.0 Type-A × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm audio out, microSD × 1
Wi-FiWi-Fi 6E (802.11ax)
Power
Power Consumption90 W (typical)
Standby Power0.2 W
Physical
ColorWhite
Dimensions1507 x 928 x 89 mm
Operating Humidity5% to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions1620 x 1165 x 160 mm
Shipping Weight56 kg
VESA Mount600 x 400 mm
Weight40 kg
Compliance
CertificationsCE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, EPEAT
