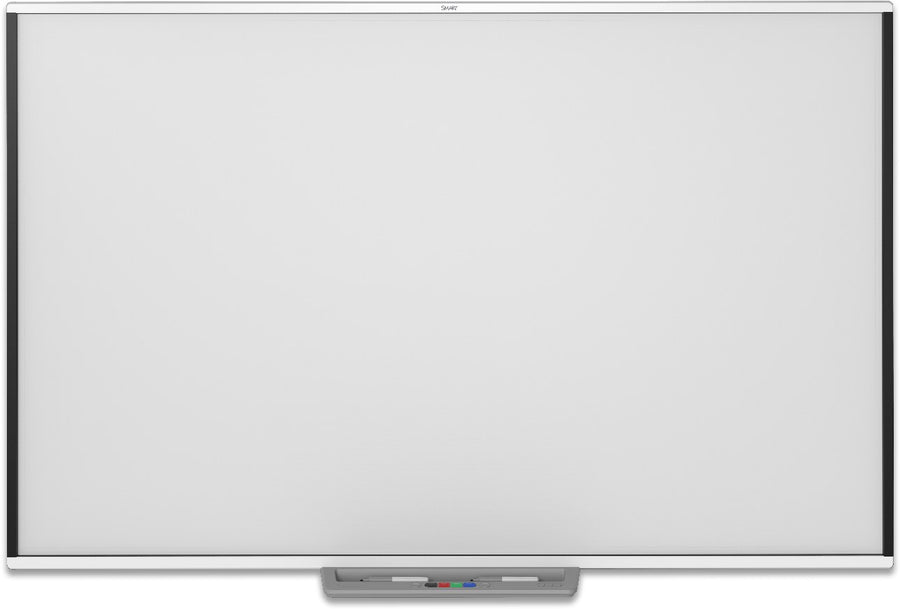

SMART Board M700 Series 97-inch Interactive Whiteboard – SBM797V

SMART Board M700 Series 97-inch Interactive Whiteboard – SBM797V

The SMART Board SBM797V is a 97-inch, 16:10 interactive whiteboard in SMART's M700 series. Object-aware infrared touch supports 20 simultaneous touches, and SMART Notebook, SMART Ink and SMART Product Drivers are included. Procure.ae supplies the SBM797V in the UAE, with quotes, delivery and installation.

The SBM797V uses advanced infrared touch with object awareness, so the board can tell a pen, finger, eraser and palm apart. It supports up to 20 simultaneous touches and up to two users, with an approximate touch digitizing resolution of 32,767 x 32,767. Users can write and erase digital ink, perform mouse functions and use gestures. The hard-coated steel surface is optimised for projection and compatible with dry-erase markers.

The SBM797V connects to a Windows or Mac computer through a full-speed USB 2.0 cable and takes its power from that connection. SMART Notebook, SMART Ink and SMART Product Drivers are included. With a 16:10 projection area of 209.5 x 129.6 cm, it suits classrooms, meeting rooms and training rooms that project onto a large writing surface. The manufacturer's specifications list the same dimensions, projection area and features for the SBM797.

Screen Size
97 inch
Touch Technology
Infrared
Type
Interactive Whiteboard
Weight
23 kg

Key features

01
Object-aware infrared touch
Distinguishes between a pen, finger, eraser and palm.
02
20-point multi-touch
Supports up to 20 simultaneous touches and up to two users.
03
Digital ink tools
Write and erase digital ink, perform mouse functions and use gestures.
04
Projection surface
Hard-coated steel surface optimised for projection and dry-erase markers.
05
16:10 projection area
209.5 x 129.6 cm projection area in a 16:10 aspect ratio.
06
Included software
SMART Notebook, SMART Ink and SMART Product Drivers are included.
07
USB connection
Full-speed USB 2.0 (12 Mbps) link to a Windows or Mac computer, which also supplies power.
08
Three-year warranty
SMART lists a three-year limited equipment warranty.

Specifications

General
CompatibilityWindows and Mac computers
Key FeaturesObject-aware infrared touch, 20 simultaneous touches, up to two users, SMART Notebook included, hard-coated steel surface, dry-erase marker compatible, 3-year warranty, USB 2.0 computer connection
ModelSBM797V
TypeInteractive Whiteboard
Display
Aspect Ratio16:10
Projection Size2095 x 1296 mm
Screen Size97 inch
Touch Points20-point multi-touch
Touch ResolutionApproximately 32,767 x 32,767
Touch TechnologyInfrared
Performance
Storage Conditions-20 to 60 °C
Connectivity
ConnectivityUSB 2.0 full-speed (12 Mbps) computer connection
Power
Power Consumption< 2.5 W
Power SourceUSB from connected computer
Physical
ColorWhite
Dimensions2169 x 1394 x 136 mm
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions2284 x 1607 x 92 mm
Shipping Weight33 kg
Surface ProtectionHard-coated steel, compatible with dry-erase markers
Weight23 kg
Compliance
CertificationsCE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, EAC
Warranty3 years
