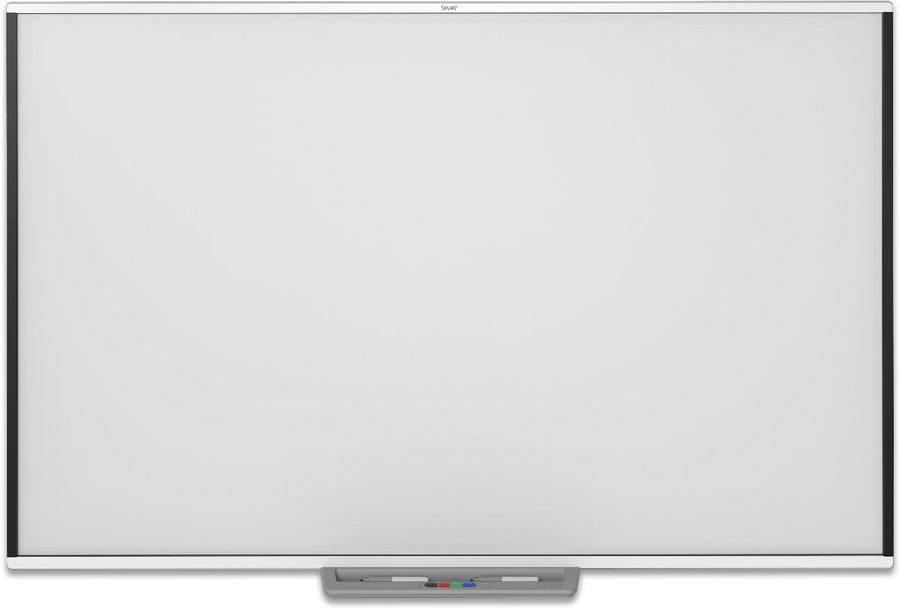

The SMART Board SBM797 is a 97-inch interactive whiteboard in the SMART Board M700 series, with a 16:10 projection area. It supports up to 20 simultaneous touches and up to two users, with SMART Notebook included. Procure.ae supplies the SBM797 in the UAE, with quotes, delivery and installation.
The SBM797 uses advanced infrared touch with object awareness, so the board can tell a pen, finger, eraser and palm apart. It supports up to 20 simultaneous touches and up to two users, with an approximate touch digitizing resolution of 32,767 x 32,767. Users can write and erase digital ink, perform mouse functions and use gestures. The hard-coated steel surface is optimised for projection and compatible with dry-erase markers.
The SBM797 connects to a Windows or Mac computer through a full-speed USB 2.0 cable and takes its power from that connection. SMART Notebook, SMART Ink and SMART Product Drivers are included. With a 16:10 projection area of 209.5 x 129.6 cm, it suits classrooms, meeting rooms and training rooms that project onto a large writing surface. The 94-inch SBM794-169 has a 16:9 projection area, and the 87-inch SBM787V is the smaller 16:10 option.
| Compatibility | Windows and Mac computers |
| Key Features | Object-aware infrared touch, 20 simultaneous touches, up to two users, SMART Notebook included, hard-coated steel surface, dry-erase marker compatible, 3-year warranty, USB 2.0 computer connection |
| Model | SBM797 |
| Type | Interactive Whiteboard |
| Aspect Ratio | 16:10 |
| Projection Size | 2095 x 1296 mm |
| Screen Size | 97 inch |
| Touch Points | 20-point multi-touch |
| Touch Resolution | Approximately 32,767 x 32,767 |
| Touch Technology | Infrared |
| Storage Conditions | -20 to 60 °C |
| Connectivity | USB 2.0 full-speed (12 Mbps) computer connection |
| Power Consumption | < 2.5 W |
| Power Source | USB from connected computer |
| Color | White |
| Dimensions | 2169 x 1394 x 136 mm |
| Operating Humidity | Up to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 2284 x 1607 x 92 mm |
| Shipping Weight | 33 kg |
| Surface Protection | Hard-coated steel, compatible with dry-erase markers |
| Weight | 23 kg |
| Certifications | CE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, EAC |
| Warranty | 3 years |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
