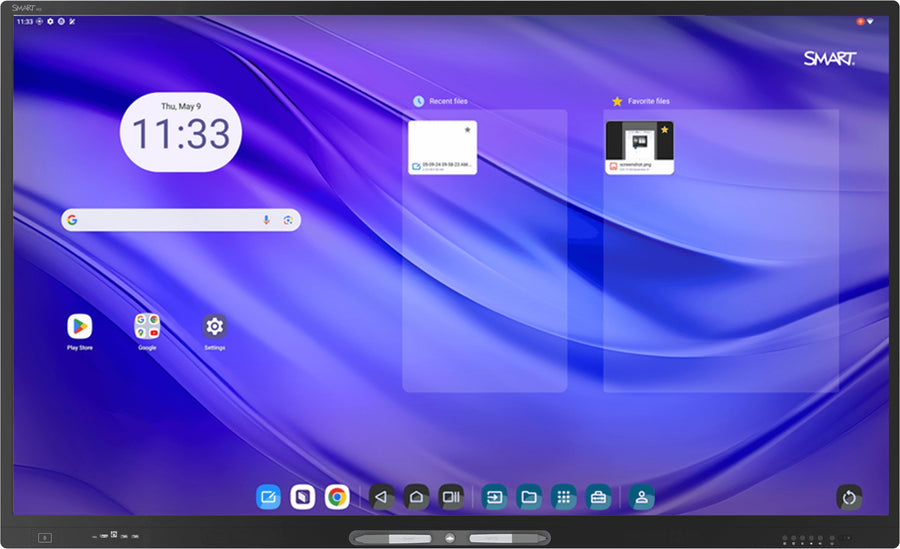

SMART Board M Pro with iQ TAA 75-inch Interactive Flat Panel – M575-V5-P
The SMART Board M575-V5-P is a 75-inch 4K UHD interactive flat panel from the M Pro series with iQ, listed as TAA. It runs Android 13 with automatic updates to Android 15 and suits classrooms, boardrooms, training rooms and government offices. Procure.ae supplies it across the UAE.
The M575-V5-P has a 3840 x 2160 (4K UHD) LED-backlit panel, 400 nits brightness, a 178° viewing angle and an 8 ms display response time. HyPr Touch with Advanced IR supports up to 50 touch points, depending on the operating system, with 1 mm accuracy and a typical touch response time of 5 ms. The octa-core processor, 8 GB DDR4 memory and 64 GB storage (up to 576 GB) run Android 13. Wi-Fi 6E, Bluetooth 5.2 and NFC are on board, and two integrated 20 W speakers, two pens and a remote control are included.
The 800 x 400 mm VESA pattern uses M8 fixings, so standard VESA wall or mount systems rated for 54 kg can carry the panel. The rear OPS PC accessory slot accepts SMART PCM modules, and the USB-C, USB 3.2 Gen 1 and RJ45 LAN ports connect devices and wired networks. Compared with the high secure M Pro models, which do not list a built-in operating system or Wi-Fi, this iQ model adds Android, wireless connectivity and NFC. Procure.ae offers free training and support across the UAE.
Key features
Specifications
| Key Features | 4K UHD (3840 x 2160), 400 nits, HyPr Touch Advanced IR, up to 50 touch points, Android 13, Wi-Fi 6E, Bluetooth 5.2, NFC reader |
| Model | M575-V5-P |
| Type | Interactive Flat Panel |
| What's in the Box | 2 pens, remote control, 5 m USB 2.0 A-to-B cable |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Accuracy | 1 mm |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | 5 ms (typical) |
| Touch Technology | Infrared |
| Viewing Angle | 178° |
| License | Room license and 10 personal licenses |
| Operating System | Android 13 |
| Processor | Octa-core |
| RAM | 8 GB |
| Storage | 64 GB (up to 576 GB) |
| Storage Conditions | -20 to 60 °C |
| Audio | 2 x 20 W integrated speakers |
| Bluetooth | Bluetooth 5.2 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | Rear, SMART PCM modules |
| Ports | USB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB Type-C × 3, RJ45 LAN × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm stereo × 1, USB 2.0 Type-A × 1, microSD slot with security cover × 1 |
| Protocols | ISO 14443A/B, ISO 15693, NFC Tag 1-4 |
| Wi-Fi | Wi-Fi 6E (IEEE 802.11ax) |
| Power Consumption | 103 W (typical) |
| Standby Power | 0.2 W |
| Color | Black |
| Dimensions | 1737 x 1061 x 89 mm |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 1820 x 1285 x 160 mm |
| Shipping Weight | 72 kg |
| VESA Mount | 800 x 400 mm |
| Weight | 54 kg |
| Certifications | TAA, CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, HDMI, HDCP |
| Country of Origin | Mexico |
| Security Features | Security cover on microSD slot |
