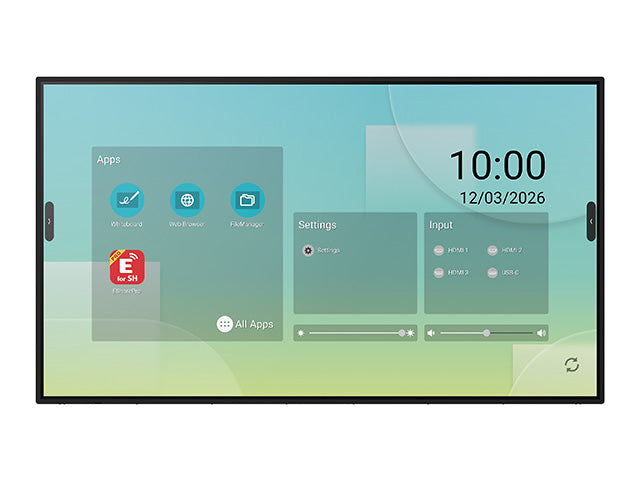

Sharp PN-LB Series Wi-Fi 75-inch Interactive Flat Panel – PN-LB753-WIFI

Sharp PN-LB Series Wi-Fi 75-inch Interactive Flat Panel – PN-LB753-WIFI

The Sharp PN-LB753-WIFI is a 75-inch 4K UHD interactive flat panel with infrared touch, up to 40 touch points and built-in Wi-Fi and Bluetooth 5.3. It suits large classrooms, meeting rooms and corporate collaboration spaces. Procure.ae supplies the Sharp PN-LB753-WIFI across the UAE.

The PN-LB753-WIFI uses a 75-inch IPS panel with a 3840 x 2160 native resolution, 500 cd/m² brightness, a 1,500:1 typical contrast ratio and an 8 ms grey-to-grey response time. Its infrared touch supports real multi-touch up to 40 touches, with finger, glove, stylus and dual-tip pen input, plus Windows Ink and palm rejection. The Android 14 system on chip, with 8 GB RAM and 64 GB storage, runs Google Play Store apps and includes a whiteboard, annotation overlay and E-Share wireless screen sharing. The USB-C 1 port delivers up to 100 W.

The PN-LB753-WIFI fits large meeting rooms, classrooms, lecture halls and corporate boardrooms. Its built-in wireless adapter supports IEEE 802.11 a/b/g/n/ac/ax with WPA3 Enterprise, so it can join a network without a separate dongle. It also supports NaViSet Administrator 2 remote management, RS-232C and LAN control, and a Q-Sys plug-in. The non-Wi-Fi PN-LB753 uses an optional Wi-Fi dongle instead.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
48 kg

Key features

01
Infrared multi-touch
Real multi-touch up to 40 touches with finger, glove, stylus and dual-tip pen input.
02
Built-in Wi-Fi and Bluetooth
IEEE 802.11 a/b/g/n/ac/ax Wi-Fi with WPA3 Enterprise and Bluetooth 5.3.
03
4K UHD IPS panel
3840 x 2160 native resolution, 500 cd/m² brightness and 1,500:1 typical contrast ratio.
04
Android 14 platform
Android 14 system on chip with 8 GB RAM and 64 GB storage, Google EDLA certified.
05
Pen and whiteboard tools
Pen-on-Paper writing, built-in whiteboard, annotation overlay mode and Windows Ink support.
06
USB-C 100 W input
USB-C 1 port carries video, touch and USB data and delivers up to 100 W.
07
E-Share screen sharing
Built-in wireless screen sharing via E-Share for presenting from personal devices.
08
Enterprise remote management
NaViSet Administrator 2 management, HDMI CEC control and scheduled timer.

Specifications

General
Key FeaturesInfrared touch, 40-point multi-touch, Android 14, Google EDLA certified, 100 W USB-C, built-in whiteboard, E-Share screen sharing, OPS slot
ModelPN-LB753-WIFI
TypeInteractive Flat Panel
What's in the BoxDisplay, 2 passive styluses, remote control, power cable, 300 cm USB cable, 2 AAA batteries, cable clamps, setup manual, wireless adapter
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size16 mm (symmetrical)
Brightness500 nits
Contrast Ratio1,500:1
OrientationLandscape; Portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points40-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core Arm Cortex-A53 2 GHz + Cortex-A73 2.3 GHz
RAM8 GB
Storage64 GB
Audio
Speaker Output2 × 15 W
Connectivity
BluetoothBluetooth 5.3
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS (NEC / Intel standard)
PortsHDMI In × 3, HDMI Out × 1, USB-C × 2 (100 W and 7.5 W), USB-A × 3, USB-B × 1, LAN × 2, RS-232C × 1, 3.5 mm audio out
Wi-FiIEEE 802.11 a/b/g/n/ac/ax; WPA3 Enterprise
Power
Power Consumption170 W (typical)
Physical
Dimensions1708 x 987 x 87 mm
Duty Cycle18/7
Operating Humidity20% to 80% RH
Operating Temperature5 to 35 °C
VESA Mount800 x 400 mm
Weight48 kg
Compliance
CertificationsCE, EMC Class B, RoHS, UKCA, EnergyStar 8.0
Warranty3 years (incl. backlight)
