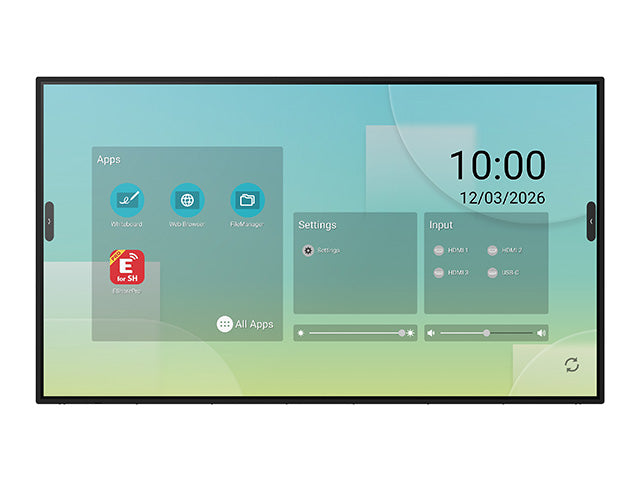

Sharp PN-LB Series 65-inch Interactive Flat Panel – PN-LB653

Sharp PN-LB Series 65-inch Interactive Flat Panel – PN-LB653

The Sharp PN-LB653 is a 65-inch 4K UHD interactive flat panel with infrared touch, up to 40 simultaneous touch points and Android 14 built in. It suits classrooms, meeting rooms and corporate collaboration spaces. Procure.ae supplies the Sharp PN-LB653 across the UAE.

The PN-LB653 uses a 65-inch IPS panel with a 3840 x 2160 native resolution, 500 cd/m² brightness, a 1,500:1 typical contrast ratio and an 8 ms grey-to-grey response time. Its infrared touch supports real multi-touch up to 40 touches, with finger, glove, stylus and dual-tip pen input, plus Windows Ink and palm rejection. The built-in Android 14 system on chip, with 8 GB RAM and 64 GB storage, runs apps from the Google Play Store and includes a whiteboard, annotation overlay and E-Share wireless screen sharing. The USB-C 1 port delivers up to 100 W.

The PN-LB653 fits meeting rooms, classrooms, lecture halls and corporate boardrooms. It supports landscape and portrait orientation, a 600 x 400 mm VESA mount and NaViSet Administrator 2 remote management, and it can be controlled over RS-232C, LAN, HDMI CEC and SNMP. Google Workspace apps and a Q-Sys plug-in support integration with existing setups. The standard model uses an optional Wi-Fi dongle for wireless networking.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
35 kg

Key features

01
Infrared multi-touch
Real multi-touch up to 40 touches with finger, glove, stylus and dual-tip pen input.
02
4K UHD IPS panel
3840 x 2160 native resolution, 500 cd/m² brightness and 1,500:1 typical contrast ratio.
03
Android 14 platform
Android 14 system on chip with 8 GB RAM and 64 GB storage, Google EDLA certified.
04
Pen and whiteboard tools
Pen-on-Paper writing, built-in whiteboard, annotation overlay mode and Windows Ink support.
05
USB-C 100 W input
USB-C 1 port carries video, touch and USB data and delivers up to 100 W.
06
E-Share screen sharing
Built-in wireless screen sharing via E-Share for presenting from personal devices.
07
Ambient light sensing
Integrated ambient light sensor with programmable triggered actions and under 0.5 W ECO standby.
08
Enterprise remote management
NaViSet Administrator 2 management, HDMI CEC control and SNMP support.

Specifications

General
Key FeaturesInfrared touch, 40-point multi-touch, Android 14, Google EDLA certified, 100 W USB-C, built-in whiteboard, E-Share screen sharing, OPS slot
ModelPN-LB653
TypeInteractive Flat Panel
What's in the BoxDisplay, 2 passive styluses, remote control, power cable, 300 cm USB cable, 2 AAA batteries, cable clamps, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size16 mm (symmetrical)
Brightness500 nits
Contrast Ratio1,500:1
OrientationLandscape; Portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points40-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core Arm Cortex-A53 2 GHz + Cortex-A73 2.3 GHz
RAM8 GB
Storage64 GB
Audio
Speaker Output2 × 15 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS (NEC / Intel standard)
PortsHDMI In × 3, HDMI Out × 1, USB-C × 2 (100 W and 7.5 W), USB-A × 3, USB-B × 1, LAN × 2, RS-232C × 1, 3.5 mm audio out
Wi-FiOptional Wi-Fi dongle
Power
Power Consumption140 W (typical)
Physical
Dimensions1487 x 862 x 87 mm
Duty Cycle18/7
Operating Humidity20% to 80% RH
Operating Temperature5 to 35 °C
VESA Mount600 x 400 mm
Weight35 kg
Compliance
CertificationsCE, EMC Class B, RoHS, UKCA, EnergyStar 8.0
Warranty3 years (incl. backlight)
