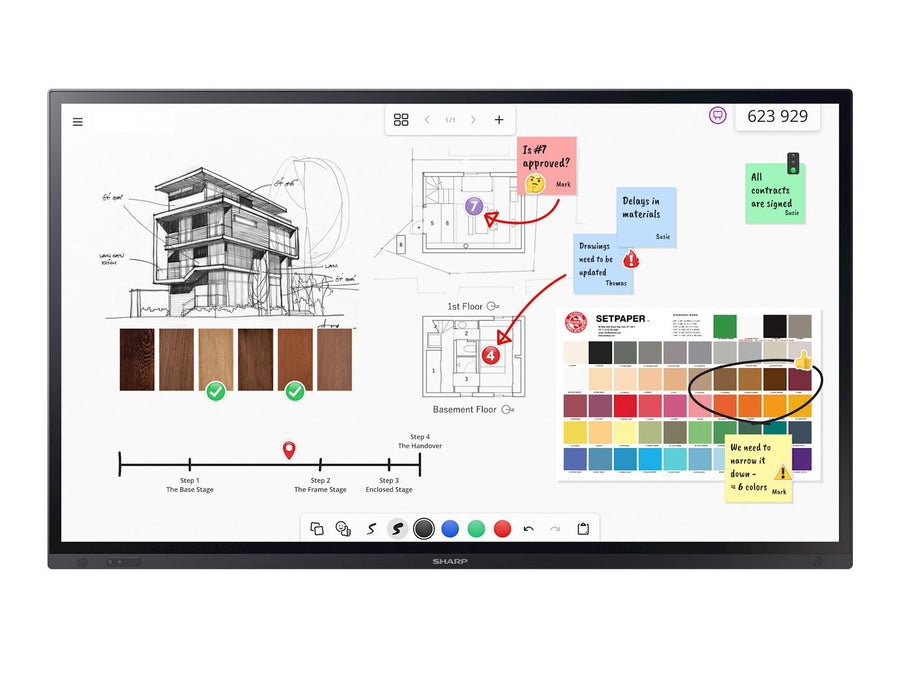

Sharp PN-LA Series 75-inch 4K Interactive Touch Display – PN-LA752
The Sharp PN-LA752 is a 75-inch 4K UHD interactive touch display from the Sharp PN-LA Series, built for enterprise hybrid meetings and boardrooms. It has InGlass M5 touch with up to 20 real multi-touch points and an Intel SDM slot for modules up to 66 W. Procure.ae supplies the Sharp PN-LA752 across the UAE.
The PN-LA752 uses a 75-inch IPS panel with direct LED backlights at 3840 × 2160 native resolution, 1.073 billion colours (10-bit) and 500 cd/m² brightness without glass. InGlass M5 touch offers real multi-touch up to 20 touches, with finger, glove and stylus input, Windows Ink and palm rejection. Two HDMI inputs and a DisplayPort input each support UHD at 60 Hz with HDCP 2.2. A USB-C port carries DisplayPort alternate mode 1.4 and 65 W power delivery for a connected notebook.
The PN-LA752 suits boardrooms, meeting rooms and hybrid collaboration spaces. It can run face up, in landscape or in portrait, for table-top, tilted desk or multi-board installations of up to three displays. Its presence sensor covers 60° left and right at 3.6 m, and it is verified for Cisco Collaboration Devices, tested for Barco ClickShare and certified for Crestron CCV2. Sharp Meeting Launcher and AirServer come pre-installed.
Key features
Specifications
| Compatibility | Windows, Android, Linux, macOS (single touch), Raspberry Pi; Cisco, Crestron CCV2, Barco ClickShare verified |
| Key Features | Presence sensor (3.6 m), ambient and temperature sensors, PiP and PbP (dual and quad split), Crestron and HDMI CEC control, scheduled timer, Intel SDM slot (up to 66 W), Windows Ink, palm rejection |
| Model | PN-LA752 |
| Type | Interactive Flat Panel |
| What's in the Box | Display, power cable, remote control, 2 passive styluses, 2 AAA batteries, USB cable (300 cm), camera and mini PC brackets, cable clamps, setup manual |
| Aspect Ratio | 16:9 |
| Backlight | Direct LED, local dimming |
| Bezel Size | 4.8 mm (sides/top), 32.3 mm (bottom) |
| Brightness | 500 nits |
| Color Depth | 10-bit (1.073 billion colors) |
| Color Gamut | 68% DCI |
| Contrast Ratio | 1,200:1 |
| Orientation | Landscape, portrait, face up |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Accuracy | <1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | ≤15 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Audio Out | 3.5 mm line out × 1 |
| DisplayPort | DP In × 1, DP Out × 1 (UHD 60 Hz, DP 1.2) |
| Speaker Output | 2 × 10 W (integrated) |
| Ethernet | 100 Mbit/s × 1 |
| HDMI Inputs | HDMI In × 2 (UHD 60 Hz, HDCP 2.2; ARC on IN 2) |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Serial Port | RS-232C × 1 (9600 bps) |
| Touch USB Ports | USB-B × 1 (touch signal) |
| USB Ports | USB 3.2 × 2 (4.5 W and 45 W), USB 2.0 service × 1 |
| USB-C Ports | USB-C × 1 (video in, touch, USB 2.0/3.2, 65 W) |
| Power Consumption | 205 W (typical) |
| Standby Power | <0.5 W (networked standby <2 W) |
| Dimensions | 1720.1 x 1025.9 x 86.5 mm |
| Duty Cycle | 24/7 |
| Material | Metal |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| Shipping Dimensions | 1900 x 1125 x 225 mm |
| Shipping Weight | 68 kg |
| Surface Protection | 8H hardness (min.) |
| VESA Mount | 600 x 400 mm |
| Weight | 56.5 kg |
| Certifications | CE, EMC Class B, ENERGY STAR 8.0, FCC Class B, RoHS, UKCA, UL/C-UL, RCM, SASO, PSB |
| IP Rating | IP6x (front), IP2x (back) |
| Warranty | 3 years (incl. backlight) |
