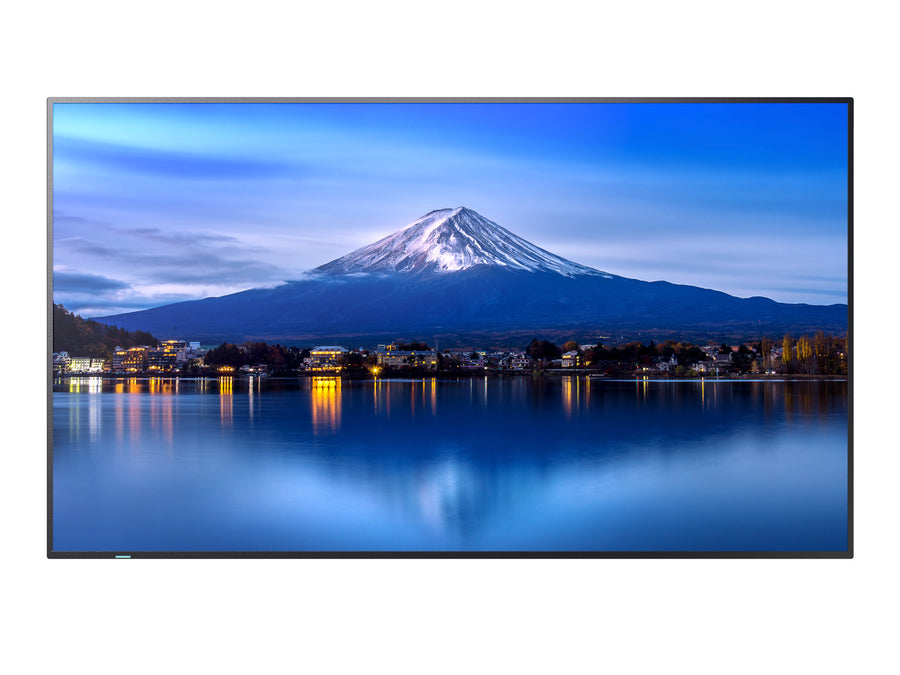

Sharp MultiSync P-Series 50-inch 4K UHD Digital Signage Display – PN-P506
The Sharp PN-P506 is a 50-inch 4K UHD digital signage display with a VA panel, built for control rooms, passenger information and corporate signage that run 24/7. It offers 700 cd/m² brightness and a contrast ratio of at least 8,000:1. Procure.ae supplies the PN-P506 in the UAE, with delivery and installation across the country.
The PN-P506 uses a native 3840 x 2160 VA panel with direct LED backlighting. It delivers 700 cd/m² brightness with a Pro haze level of 25%, and its 178° horizontal and vertical viewing angles apply at a 10:1 contrast ratio. Colour uses 10-bit depth with 86% DCI colour gamut coverage. The panel responds in 8 ms grey-to-grey at a 60 Hz refresh rate. An ambient light sensor and three temperature sensors support triggered actions, and the display can be calibrated with Display Wall Calibrator software.
The PN-P506 suits control rooms, passenger information, prestige retail and corporate signage. Its compute module slot takes Raspberry Pi MPi4 and MPi5 kits, and it accepts Intel Smart Display Modules up to 66 W. The display is certified for Crestron CCV2 and XiO Cloud and has a Q-Sys plug-in. HDMI and DisplayPort loop-through let content be cloned across multiple displays, and a 300 x 300 mm VESA pattern supports wall mounting.
Key features
Specifications
| Compatibility | Crestron CCV2, XiO Cloud, Q-Sys, AMX NetLinx, PJLink, SNMP |
| Key Features | Direct LED VA panel, 700 nits, HDMI and DisplayPort daisy-chaining, compute module slot, ambient and temperature sensors, 24/7 operation, Crestron and Q-Sys integration |
| Model | PN-P506 |
| Type | Digital Signage Display |
| What's in the Box | Display, remote control, HDMI cable, power cable, 2 AAA batteries, setup manual |
| Aspect Ratio | 16:9 |
| Bezel Size | 10.9 mm left, right and top; 13.9 mm bottom |
| Brightness | 700 nits |
| Color Depth | 1.073 billion colours (10-bit) |
| Color Gamut | 86% DCI |
| Contrast Ratio | 8,000:1 (minimum) |
| Panel Technology | VA with direct LED backlight |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (grey-to-grey) |
| Screen Size | 50 inch |
| Viewing Angle | 178° horizontal / 178° vertical |
| Storage Conditions | -20 to 60 °C; 10% to 80% humidity |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In × 2, HDMI Out × 1, DisplayPort In × 1, DisplayPort Out × 1, USB-C × 2, USB-A × 1, LAN × 1 (100 Mbit/s), RS-232C × 1, 3.5 mm audio out × 1 |
| Power Consumption | 95 W (typical) |
| Color | Black front bezel, black back cabinet |
| Dimensions | 1121.6 x 645.2 x 66.5 mm (W x H x D) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 300 x 300 mm (FDMI, M6) |
| Weight | 18 kg |
| Certifications | CE; FCC Class B; UL/C-UL or CSA; Energy Star 8; RoHS; REACH; UKCA |
| IP Rating | IP5x (front); IP2x (back) |
| Security Features | Disable hardware buttons, disable IR, emergency notification, IEEE 802.1X LAN |
| Warranty | 3 years (includes backlight) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
