Sharp · PN-M982 · Digital Signage

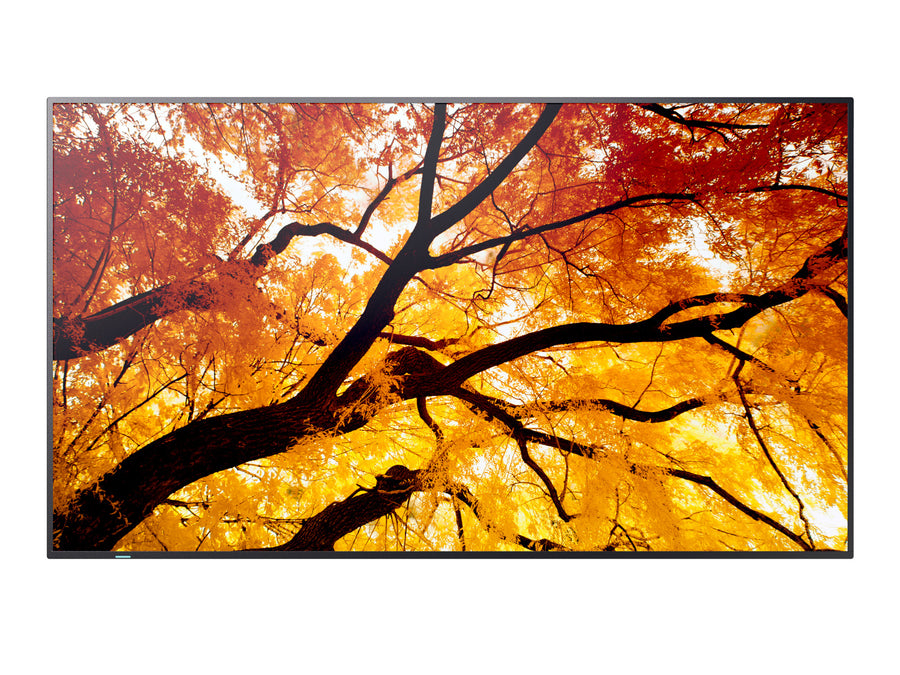

Sharp MultiSync M Series 98-inch 4K UHD Digital Signage Display – PN-M982

Sharp MultiSync M Series 98-inch 4K UHD Digital Signage Display – PN-M982

The Sharp MultiSync PN-M982 is a 98-inch 4K UHD display for large boardrooms, lobbies and 24/7 signage. It has a 550 nits IPS panel with a minimum 8,000:1 contrast ratio, a USB-C input with 65 W power and emergency notification. Procure.ae supplies the PN-M982 across the UAE.

The PN-M982 has a 3840 x 2160 native resolution on a 98-inch IPS panel rated at 550 nits, with a minimum 8,000:1 contrast ratio and 178° viewing angles. Its 10-bit colour depth covers 72% of the NTSC gamut. The high-haze panel (Pro 25) limits reflections, and response time is 8 ms at a 60 Hz refresh rate. The display supports 2-split picture-in-picture and scalable picture size, and it is rated for 24/7 operation. The warranty is 3 years including the backlight.

The M982 is the largest model in the M Series and fits large boardrooms, atriums, retail and transport signage, and video wall installations. It supports landscape and portrait orientation and mounts on a 600 x 400 mm VESA pattern. Connectivity covers USB-C with 65 W power, DisplayPort and HDMI loop-through, and an MPi4 or MPi5 compute module slot. It is verified for Cisco collaboration devices, certified for Crestron CCV2 and XiO Cloud, and supports Q-Sys and NaViSet Administrator 2.

Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
550 nits
Type
Digital Signage Display
Weight
68 kg

Key features

01
4K UHD panel
3840 x 2160 resolution on a 98-inch IPS panel with 8 ms response time.
02
High-brightness display
550 nits with a high-haze finish (Pro 25) for glare control.
03
USB-C input
UHD 60 Hz video with 65 W power and DP alt. 1.2 support.
04
Loop-through outputs
HDMI OUT and DisplayPort OUT for daisy-chaining sources.
05
Computing options
MPi4 or MPi5 compute module slot and Intel SDM up to 66 W.
06
Emergency notification
built-in security feature for public-facing installations.
07
Certified platforms
verified for Cisco collaboration devices and certified for Crestron.
08
Network security
IEEE802.1X LAN support and disable options for hardware buttons and IR.

Specifications

General
Key FeaturesNative 4K UHD, 550 nits IPS, USB-C 65 W input, DP and HDMI loop-through, MPi4/MPi5 and Intel SDM slots, Cisco and Crestron certified, emergency notification, IEEE802.1X LAN
ModelPN-M982
TypeDigital Signage Display
What's in the BoxDisplay, HDMI cable, power cable, remote control, 2x AAA batteries, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size15.9 mm (symmetrical)
Brightness550 nits
Color Depth1.07 billion colours (10-bit)
Color Gamut72% of NTSC
Contrast Ratio8,000:1 (minimum)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size98 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Ethernet100 Mbit/s
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, HDMI Out × 1, DisplayPort In × 1, DisplayPort Out × 1, USB-C × 2, USB-A × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
Serial PortRS-232C, 9600 bps
Power
Power Consumption210 W (shipping)
Physical
Dimensions2194.7 x 1250.2 x 84.3 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight68 kg
Compliance
CertificationsCE, EMC Class B, Energy Star 8, FCC Class B, REACH, RoHS, UKCA, UL/C-UL or CSA
IP RatingIP5x front, IP2x back
Security FeaturesDisable hardware buttons, disable IR, emergency notification, IEEE802.1X (LAN)
Warranty3 years
