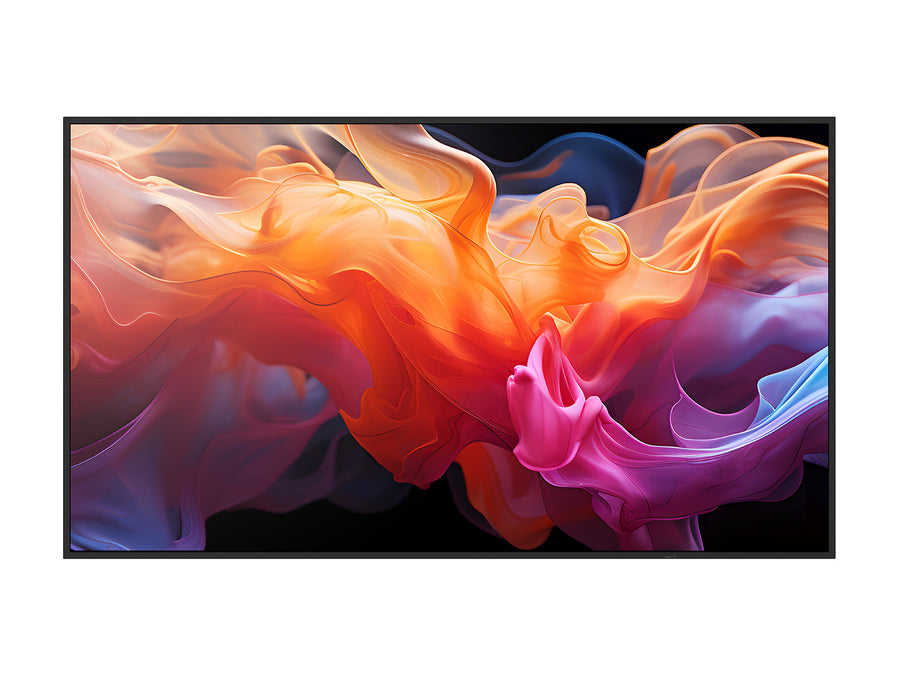

Sharp MultiSync E Series 75-inch Digital Signage Display – PN-E759

Sharp MultiSync E Series 75-inch Digital Signage Display – PN-E759

The Sharp MultiSync E Series PN-E759 is a 75-inch 4K UHD digital signage display for meeting rooms and large-format signage. It has an IPS panel, 350 nits brightness and a 1,200:1 contrast ratio. Procure.ae supplies the PN-E759 in the UAE, with quotes, delivery and installation across the country.

The PN-E759 uses an IPS panel with direct LED backlighting and a native 3840 x 2160 resolution. The manufacturer lists 350 nits brightness, a typical contrast ratio of 1,200:1 and an 8 ms grey-to-grey response time at 60 Hz. Its viewing angle is 178° horizontal and vertical, and it supports landscape and portrait orientation. The manufacturer lists a 0.430 mm pixel pitch, a 12.9 mm symmetrical bezel and a 3-year warranty that includes the backlight.

The display suits meeting rooms, corporate communication and large digital signage installations, according to the manufacturer. It has two HDMI inputs with UHD 60 Hz and HDCP 2.2, a USB-C port with DP Alt Mode 1.2 and 15 W, and a 100 Mbit/s LAN port. Q-Sys Plug-in support and NaViSet Administrator 2 remote management are listed. Its VESA pattern is 600 x 400 mm with M8 fixings, and wall mounts and a trolley are listed as accessories.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
Weight
24 kg

Key features

01
Full 4K resolution
Native 3840 x 2160 panel, with support for inputs up to 4096 x 2160.
02
IPS panel
Direct LED backlighting and a 178° horizontal and vertical viewing angle.
03
Brightness of 350 nits
350 nits brightness, per the manufacturer.
04
16/7 operation
Rated by the manufacturer for 16 hours a day, 7 days a week.
05
Integrated media playback
USB media player for MP4, TS, WMV and MPG video.
06
Connectivity
Two HDMI inputs, USB-C with DP Alt Mode 1.2, LAN and RS-232C.
07
Q-Sys integration
Q-Sys Plug-in listed by the manufacturer.
08
Large format size
Measures 1,680 x 959 x 58.5 mm and weighs 24 kg.

Specifications

General
Key FeaturesFull 4K IPS panel, 350 nits, 16/7 operation, USB media player, Q-Sys plug-in, NaViSet remote management, landscape and portrait
ModelPN-E759
TypeDigital Signage Display
What's in the BoxDisplay, remote control, 2 AAA batteries, power cable, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size12.9 mm (symmetrical)
Brightness350 nits
Contrast Ratio1,200:1
Display TypeLarge Format Display
OrientationLandscape and portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size75 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Audio Out3.5 mm line out
Connectivity
Ethernet100 Mbit/s
HDMI Inputs2 (UHD 60 Hz, HDCP 2.2)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, USB-C × 1, USB-A × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
USB-C Ports1 (video input, DP Alt Mode 1.2, 15 W)
Power
Power Consumption170 W (typical)
Physical
ColorBlack
Dimensions1,680 x 959 x 58.5 mm
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight24 kg
Compliance
CertificationsCE, Energy Star 8, FCC Class B, RCM, UKCA, UL/C-UL or CSA, VCCI
Warranty3 years
