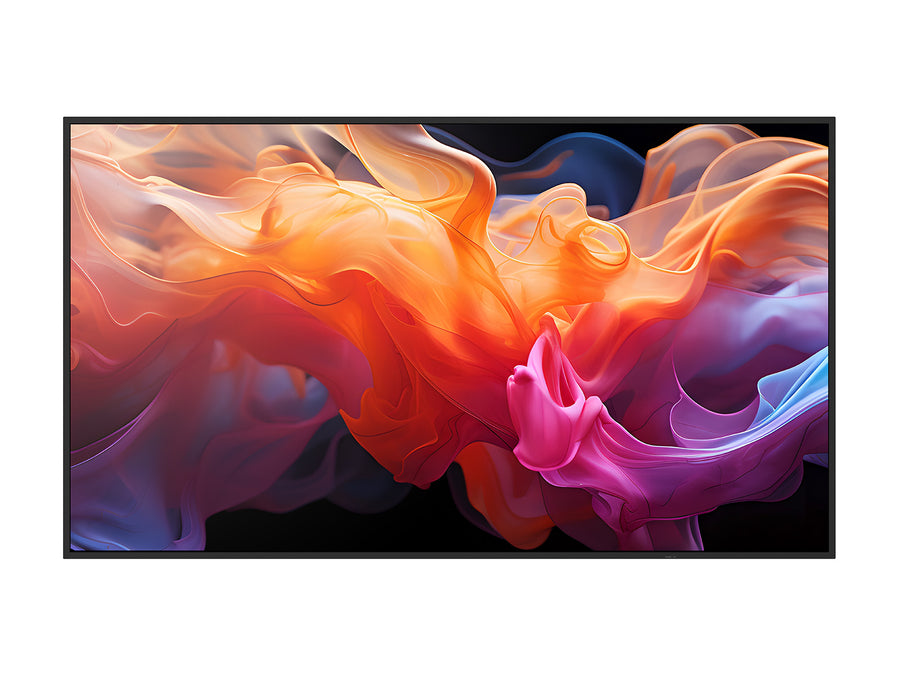

Sharp MultiSync E Series 55-inch Digital Signage Display – PN-E559

Sharp MultiSync E Series 55-inch Digital Signage Display – PN-E559

The Sharp MultiSync E Series PN-E559 is a 55-inch 4K UHD digital signage display for meeting rooms and corporate signage. It has an IPS panel, 350 nits brightness and a 1,200:1 contrast ratio. Procure.ae supplies the PN-E559 in the UAE, with quotes, delivery and installation across the country.

The PN-E559 uses an IPS panel with direct LED backlighting and a native 3840 x 2160 resolution. The manufacturer lists 350 nits brightness, a typical contrast ratio of 1,200:1 and an 8 ms grey-to-grey response time at 60 Hz. The panel supports landscape and portrait orientation and a 178° horizontal and vertical viewing angle. Its 0.315 mm pixel pitch and 10.8 mm symmetrical bezel are listed, and the warranty is 3 years including the backlight.

The display fits meeting rooms, corporate communication and digital signage, according to the manufacturer. It has two HDMI inputs with UHD 60 Hz and HDCP 2.2, a USB-C port with DP Alt Mode 1.2 and 15 W, and a 100 Mbit/s LAN port. Q-Sys Plug-in support and NaViSet Administrator 2 remote management are listed. Its VESA pattern is 400 x 200 mm, and a trolley and wall mounts are listed as accessories.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
Weight
12 kg

Key features

01
Full 4K resolution
Native 3840 x 2160 panel, with support for inputs up to 4096 x 2160.
02
IPS panel
Direct LED backlighting and a 178° horizontal and vertical viewing angle.
03
Brightness of 350 nits
350 nits brightness, per the manufacturer.
04
16/7 operation
Rated by the manufacturer for 16 hours a day, 7 days a week.
05
Integrated media playback
USB media player for MP4, TS, WMV and MPG video.
06
Connectivity
Two HDMI inputs, USB-C with DP Alt Mode 1.2, LAN and RS-232C.
07
Q-Sys integration
Q-Sys Plug-in listed by the manufacturer.
08
Warranty
3 years, including the backlight.

Specifications

General
Key FeaturesFull 4K IPS panel, 350 nits, 16/7 operation, USB media player, Q-Sys plug-in, NaViSet remote management, landscape and portrait
ModelPN-E559
TypeDigital Signage Display
What's in the BoxDisplay, remote control, 2 AAA batteries, power cable, cable clamps, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size10.8 mm (symmetrical)
Brightness350 nits
Contrast Ratio1,200:1
Display TypeLarge Format Display
OrientationLandscape and portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Audio Out3.5 mm line out
Connectivity
Ethernet100 Mbit/s
HDMI Inputs2 (UHD 60 Hz, HDCP 2.2)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, USB-C × 1, USB-A × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
USB-C Ports1 (video input, DP Alt Mode 1.2, 15 W)
Power
Power Consumption100 W (typical)
Physical
ColorBlack
Dimensions1,234 x 707 x 58.9 mm
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 200 mm
Weight12 kg
Compliance
CertificationsCE, Energy Star 8, FCC, RCM, UKCA, UL/C-UL, VCCI
Warranty3 years
