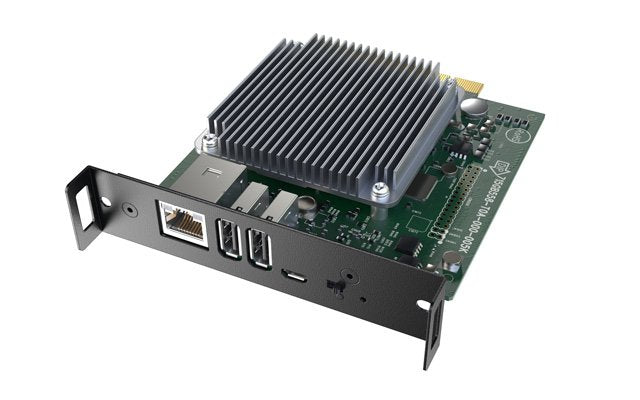

Sharp MPi4 Kit Signage Media Player – MPi4 Kit powered by Raspberry Pi

The Sharp MPi4 Kit is a Raspberry Pi-based player that embeds into compatible Sharp or NEC large format displays for digital signage. It has a quad-core 1.5 GHz Arm Cortex-A72 processor, 4 GB RAM and 32 GB eMMC storage, with a watchdog timer and real-time clock for scheduling. Procure.ae supplies the MPi4 Kit in the UAE.

The MPi4 Kit uses a quad-core 64-bit Arm Cortex-A72 processor at 1.5 GHz with VideoCore IV graphics. It decodes H.265 (HEVC) video up to 4Kp60 and H.264 up to 1080p60, and encodes H.264 up to 1080p30. The kit has 4 GB LPDDR2 SDRAM and 32 GB of on-board eMMC storage. Its display interface board provides Ethernet and USB interfaces for network integration and for connecting a mouse, keyboard, sensors or touch. A watchdog timer and real-time clock support intelligent signage functions and scheduling.

The MPi4 Kit fits inside compatible Sharp or NEC large format displays, including ME, M, MA and P series models listed by the manufacturer. Its open platform supports Raspberry Pi software and third-party content management systems, and its exchangeable slot design allows future upgrades. Use it when a display needs an integrated, modular player for retail, quick service menu boards and passenger information, without a separate external media box.
